Colorectal cancer subtype identification from differential gene expression levels using minimalist deep learning

Abstract

Background: Cancer molecular subtyping plays a critical role in individualized patient treatment. In previous studies, high-throughput gene expression signature-based methods have been proposed to identify cancer subtypes. Unfortunately, the existing ones suffer from the curse of dimensionality, data sparsity, and computational deficiency.

Methods: To address those problems, we propose a computational framework for colorectal cancer subtyping without any exploitation in model complexity and generality. A supervised learning framework based on deep learning (DeepCSD) is proposed to identify cancer subtypes. Specifically, based on the differentially expressed genes under cancer consensus molecular subtyping, we design a minimalist feed-forward neural network to capture the distinct molecular features in different cancer subtypes. To mitigate the overfitting phenomenon of deep learning as much as possible, L₁ and L₂ regularization and dropout layers are added.

Results: For demonstrating the effectiveness of DeepCSD, we compared it with other methods including Random Forest (RF), Deep forest (gcForest), support vector machine (SVM), XGBoost, and DeepCC on eight independent colorectal cancer datasets. The results reflect that DeepCSD can achieve superior performance over other algorithms. In addition, gene ontology enrichment and pathology analysis are conducted to reveal novel insights into the cancer subtype identification and characterization mechanisms.

Conclusions: DeepCSD considers all subtype-specific genes as input, which is pathologically necessary for its completeness. At the same time, DeepCSD shows remarkable robustness in handling cross-platform gene expression data, achieving similar performance on both training and test data without significant model overfitting or exploitation of model complexity.

Keywords: Cancer subtype identification; DeepCSD; Differential gene expression.

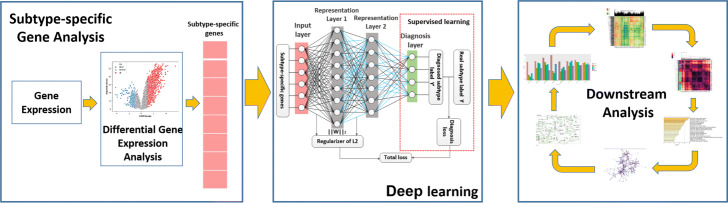

Fig. 1

The framework of DeepCSD. DeepCSD consists of two representation layers to extract deep features, two dropout layers, and a output layer. DeepCSD has 768 neurons in the first representation layer, 128 in the second representation layer, and 4 in the final layer because molecular subtyping of colorectal cancer is a four-class classification problem in our study

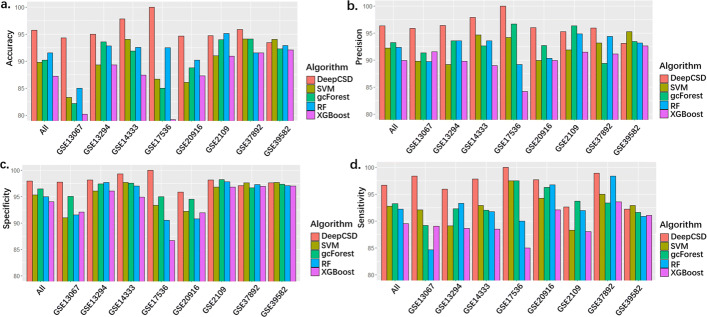

Fig. 2

Performance comparisons among DeepCSD, SVM, gcForest, and RF on eight cancer molecular datasets. a accuracy (calculated by the mean of accuracy per class). b Precision (calculated by the mean of precision per class). c Specificity (calculated by the mean of specificity per class). d Sensitivity (calculated by the mean of sensitivity per class)

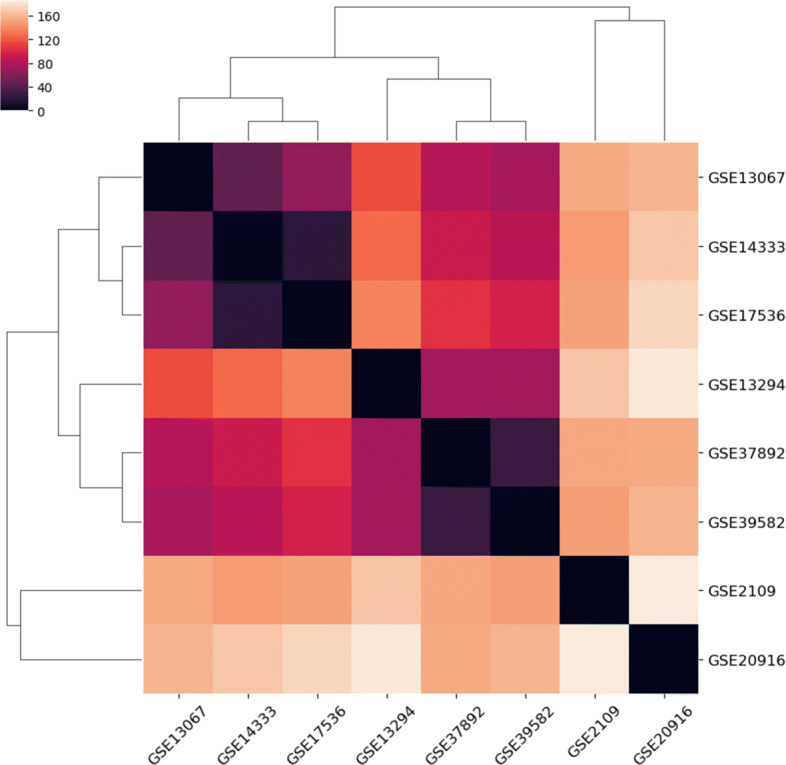

Fig. 3

The distance correlation heatmap of multiple molecular datasets. From the figure, we can draw the conclusion that GSE20916 and GSE2109 have low correlations with other datasets; it demonstrates DeepCSD’s robustness on different datasets with diverse gene expression characteristics

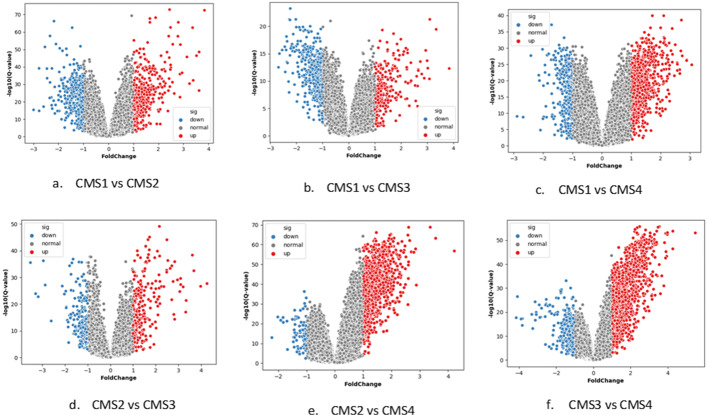

Fig. 4

Differential gene expression visualization on GSE39582. a-f represents a comparison of each CMS group and each dot represents a gene: red represents up-regulated gene and blue represents down-regulated gene

Fig. 5

Gene Clustergram on GSE39582. h illustrates the difference between samples while g provides the genes’ correlation to each sample

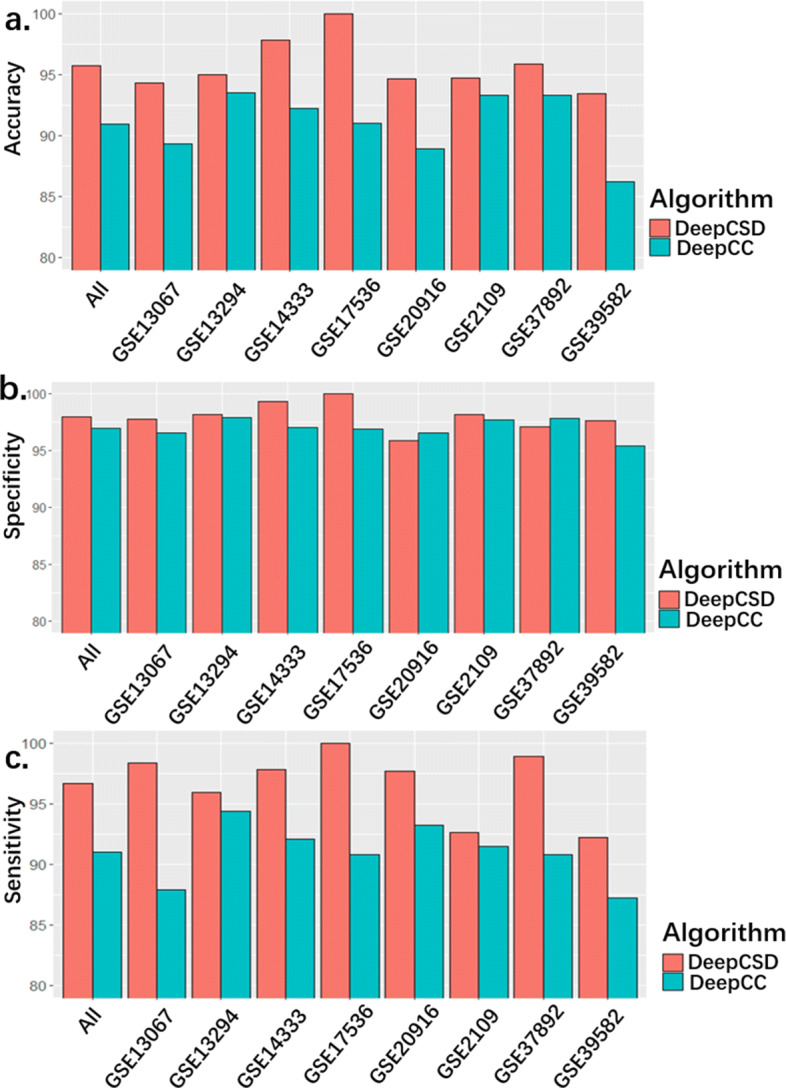

Fig. 6

Performance comparison between DeepCSD and DeepCC. The vertical axis denotes the corresponding performance metric

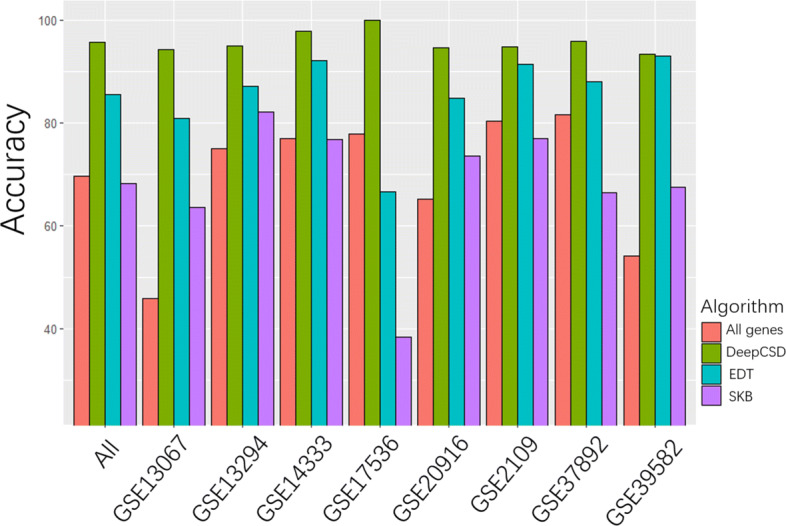

Fig. 7

The performance comparisons of DeepCSD with two distinct feature selection methods including EDT and SKB

Fig. 8

The comparison performance of different learning rates increasing from 0.1 to 0.9

Fig. 9

The metabolic pathways (hsa01100) is provided by KEGG database: the genes marked “red” are the subtype-specific genes in this pathway
