. 2023 Sep;38(6):1230-1239.
doi: 10.1177/02676591221099808. Epub 2022 May 6.

Instantaneous wave free ratio value impact on left internal mammary artery graft patency

Rasa Ordiene  1 , Ramunas Unikas  1 , Ali Aldujeli  1 , Rimantas Benetis  2 , Povilas Jakuska  2 , Indre Ceponiene  3 , Antanas Jankauskas  3 , Jurgita Plisiene  1 , Tadas Lenkutis  2 , Gabriele Rudokaite  1 , Rima Braukyliene  1 , Mindaugas Stonis  4 , Justin Davies  5 , Prakash P Punjabi  6
Affiliations

Instantaneous wave free ratio value impact on left internal mammary artery graft patency

Rasa Ordiene et al. Perfusion. 2023 Sep.

Abstract

Objectives: To assess whether instantaneous wave - free ratio (iFR) value is associated with left internal mammary artery (LIMA) graft failure at 12 months follow-up post coronary artery bypass graft (CABG).

Background: Data suggests bypass to a non-significant left anterior descending artery (LAD) lesion due to visual over-estimation may lead to LIMA graft failure. Implementing iFR may result in better arterial graft patency.

Methods: In iCABG (iFR guided CABG) study patients planned to undergo an isolated CABG procedure was prospectively enrolled and iFR was performed for LAD. Coronary computed tomography angiography was performed at 2 and 12 months follow-up. The primary endpoint of this study was to determine the rate of LIMA graft occlusion or hypoperfusion at 2 and 12-months follow-up. We considered a composite secondary endpoint of Major adverse cardiovascular and cerebrovascular event (MACCE) as a secondary outcome.

Results: In total 69 patients were included with no differences regarding age, sex and risk factors. At 2 months, 50 of LIMAs with pre-CABG iFR median 0.855 (0.785 - 0.892) were patent. Hypoperfusion was found in 8 LIMAs (median iFR 0.88 (0.842 - 0.90)). While, 7 LIMAs (median iFR 0.91 (0.88 - 0.96)) were occluded (p = 0.04). At 12 months, when iFR of LAD was >0.85: just 12 (31.6% out of all patent LIMAS) grafts were patent and 24 (100.0% out of all hypoperfused/occluded) grafts were hypoperfused or occluded (p < 0.001). In terms of MACCE, no difference (p = 1.0) was found between all 3 groups divided according to iFR value.

Conclusions: Instantaneous wave - free ratio value above 0.85 in LAD is a powerful tool predicting LIMA graft failure at 1-year follow up period.

Keywords: instantaneous wave free ratio guided coronary artery bypass graft surgery; instantaneous wave – free ratio; left internal mammary artery failure.

PubMed Disclaimer

Conflict of interest statement

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Figures

Figure 1.
Figure 1.

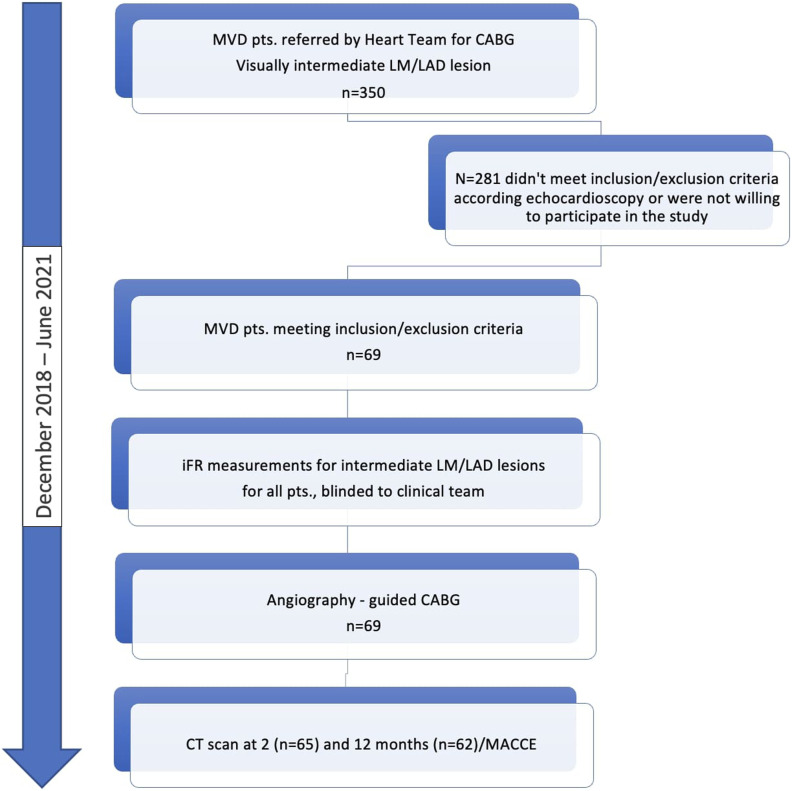

Design of the study. VD pts:multivessel disease patients; CABG: coronary artery bypass grafting; LM– left main; LAD– left anterior descending artery; iFR– instantaneous wave-free ratio; CT: computed tomography; MACCE: major adverse cardiac and cerebrovascular events.
Figure 2.
Figure 2.
Patients IFR of LAD box Plot by graft patency in 2 months. ×2 = 9.984, df = 2, p = 0.007, according to Kruskal-Wallis test, ap=0.004 *LAD: left anterior descending artery, iFR: instantaneous wave-free ratio
Figure 3.
Figure 3.
Patients IFR of LAD box Plot by graft patency in 12 months ×2 = 26,059, df = 2, p < 0.001, according to Kruskal-Wallis test, ab p < 0.001 *LAD: left anterior descending artery, iFR: instantaneous wave-free ratio.
Figure 4.
Figure 4.
Graft patency rate according to iFR value. *iFR – instantaneous wave free ratio; LAD – left anterior descending artery.
Figure 5.
Figure 5.
Receiver operating characteristic (ROC) test for LAD iFR threshold predicting dysfunction of LIMA graft according to 12 months CCTA graft patency: iFR value >0.85 in LAD Area under the ROC curve (AUC) 88.4%, sensitivity 100.0%, specificity 68.4%. *iFR: instantaneous wave free ratio; LAD: left anterior descending artery.
