. 2019 Aug 8;9(42):24627-24637.
doi: 10.1039/c9ra04416g. eCollection 2019 Aug 2.

Experimental data revealing explosion characteristics of methane, air, and coal mixtures

Jun Deng  1   2 , Jiao Qu  1   2 , Qiu-Hong Wang  1   2 , Yang Xiao  1   2 , Yu-Chi Cheng  3 , Chi-Min Shu  3
Affiliations

Experimental data revealing explosion characteristics of methane, air, and coal mixtures

Jun Deng et al. RSC Adv. .

Abstract

Whenever air and gases mix with pulverised coal, explosions are possible. Such explosions constitute a primary category of safety concerns during coal bed methane mining. This study investigated the explosion parameters and characteristics of methane-air-coal dust mixtures by using an XKWB-1 sealed explosion system. Maximum explosion pressure (P max), maximum explosion pressure rise rate (dP/dt)max, and explosion index (K) were recorded and calculated. Findings showed that relative to the maximum explosion pressure of an air-methane gas mix P max-G, that of a gas-dust mixture P max-GD was elevated when a 7.0 vol% methane-air mixture coexisted with 500.0 g m-3 of coal dust in the explosion. P max-GD decreased as C G increased and increased as V ad increased for a methane-air-coal dust mixture. Both P max-GD and (dP/dt)max-GD increased first, but were diminished with an increase in C D. The C opt values of five coal samples of HC, KZD, DFS, TC, and YMZ were 400.0, 500.0, 500.0, 500.0, and 600.0 g m-3, respectively. Based on the coal dust explosion pathways, the effects of coal dust volatility on the explosion characteristics were analysed. Finally, with respect to 7.0 vol% methane, the data showed that the explosion index of a gas K g was consistently lower than the explosion index of a gas-dust mixture K m; that is, K g < K m.

PubMed Disclaimer

Conflict of interest statement

There are no conflicts to declare.

Figures

Fig. 1

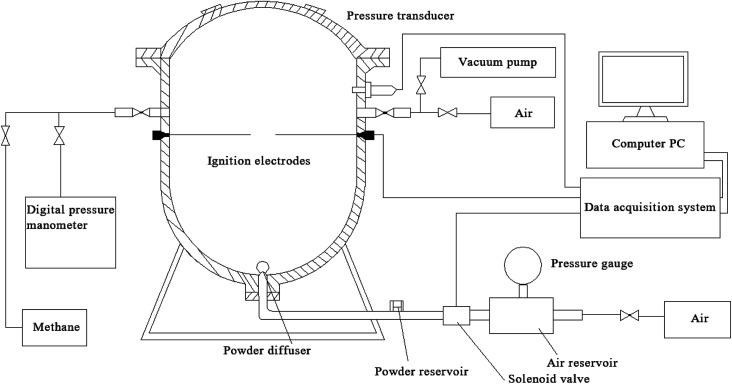

Fig. 1. XKWB-1 sealed explosion system.
Fig. 2

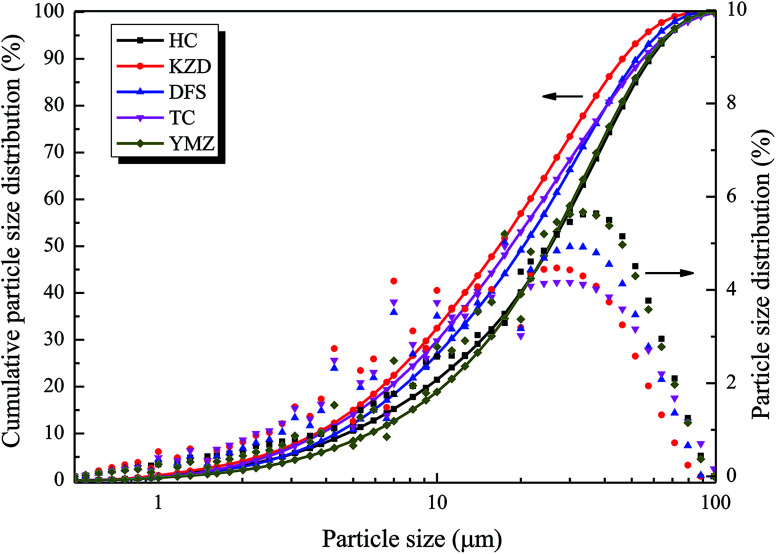

Fig. 2. Particle size distribution of the five coal samples.
Fig. 3
Fig. 3. SEM images of the five coal samples. (a) HC, (b) KZD, (c) DFS, (d) TC, and (e) YMZ.
Fig. 4
Fig. 4. P ex–t curves of the methane explosion recorded by the XKWB-1 sealed explosion system.
Fig. 5
Fig. 5. P max-G and (dP/dt)max-G of methane–air mixtures with different methane concentrations.
Fig. 6
Fig. 6. P max-GD of methane–air mixture explosions when mixed with five coal dusts.
Fig. 7
Fig. 7. Effects of coal dust volatility on methane–air–coal dust mixture explosions.
Fig. 8
Fig. 8. Schematic diagram of the coal dust explosion pathways.
Fig. 9
Fig. 9. P max-GD and (dP/dt)max-GD of 7.0 vol% methane–air–coal dust mixture versus different coal dust concentrations.
Fig. 10

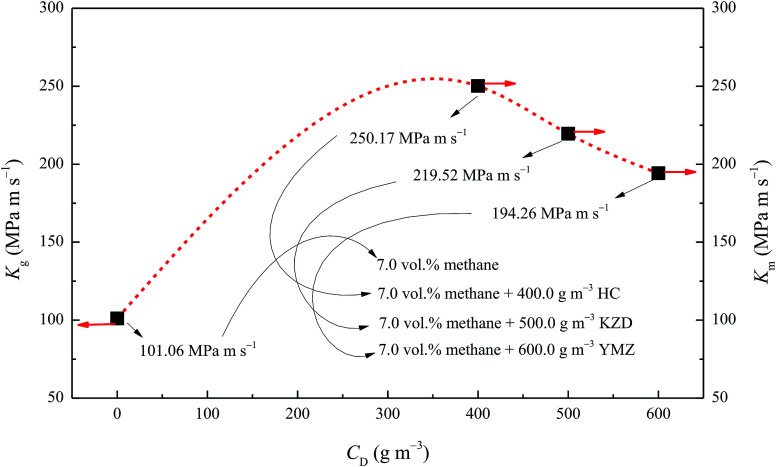

Fig. 10. Explosion index of 7.0 vol% methane–air and 7.0 vol% methane–air–coal dust mixtures versus coal dust concentrations.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Sun Z. Li X. F. Shi J. T. Yu P. L. Huang L. Xia J. et al., A semi-analytical model for drainage and desorption area expansion during coal-bed methane production. Fuel. 2017;204:214–226. doi: 10.1016/j.fuel.2017.05.047. - DOI
    1. Geng Y. G. Tang D. Z. Xu H. Tao S. Tang S. L. Ma L. et al., Experimental study on permeability stress sensitivity of reconstituted granular coal with different lithotypes. Fuel. 2017;202:12–22. doi: 10.1016/j.fuel.2017.03.093. - DOI
    1. Tang Z. Yang S. Wu G. Occurrence mechanism and risk assessment of dynamic of coal and rock disasters in the low-temperature oxidation process of a coal-bed methane reservoir. Energy Fuels. 2017;31:3602–3609. doi: 10.1021/acs.energyfuels.6b03106. - DOI
    1. Meng Y. Li Z. P. Experimental study on diffusion property of methane gas in coal and its influencing factors. Fuel. 2016;185:219–228. doi: 10.1016/j.fuel.2016.07.119. - DOI
    1. Gieras M. Klemens R. Rarata G. Wolanshi P. Determination of explosion parameters of methane–air mixtures in the chamber of 40 dm3 at normal and elevated temperature. J. Loss Prev. Process Ind. 2006;19:263–270. doi: 10.1016/j.jlp.2005.05.004. - DOI
