A Mobile App for Prevention of Cardiovascular Disease and Type 2 Diabetes Mellitus: Development and Usability Study

Abstract

Background: Cardiovascular disease (CVD) and type 2 diabetes mellitus (T2DM) are posing a huge burden on health care systems worldwide. Mobile apps can deliver behavior change interventions for chronic disease prevention on a large scale, but current evidence for their effectiveness is limited.

Objective: This paper reported on the development and user testing of a mobile app that aims at increasing risk awareness and engaging users in behavior change. It would form part of an intervention for primary prevention of CVD and T2DM.

Methods: The theoretical framework of the app design was based on the Behaviour Change Wheel, combined with the capability, opportunity, and motivation for behavior change system and the behavior change techniques from the Behavior Change Technique Taxonomy (version 1). In addition, evidence from scientific literature has guided the development process. The prototype was tested for user-friendliness via an iterative approach. We conducted semistructured interviews with individuals in the target populations, which included the System Usability Scale. We transcribed and analyzed the interviews using descriptive statistics for the System Usability Scale and thematic analysis to identify app features that improved utility and usability.

Results: The target population was Australians aged ≥45 years. The app included 4 core modules (risk score, goal setting, health measures, and education). In these modules, users learned about their risk for CVD and T2DM; set goals for smoking, alcohol consumption, diet, and physical activity; and tracked them. In total, we included 12 behavior change techniques. We conducted 2 rounds of usability testing, each involving 5 participants. The average age of the participants was 58 (SD 8) years. Totally, 60% (6/10) of the participants owned iPhone Operating System phones, and 40% (4/10) of them owned Android phones. In the first round, we identified a technical issue that prevented 30% (3/10) of the participants from completing the registration process. Among the 70% (7/10) of participants who were able to complete the registration process, 71% (5/7) rated the app above average, based on the System Usability Scale. During the interviews, we identified some issues related to functionality, content, and language and clarity. We used the participants' feedback to improve these aspects.

Conclusions: We developed the app using behavior change theory and scientific evidence. The user testing allowed us to identify and remove technical errors and integrate additional functions into the app, which the participants had requested. Next, we will evaluate the feasibility of the revised version of the app developed through this design process and usability testing.

Keywords: behavior change intervention; cardiovascular disease; diabetes mellitus, type 2; health promotion; mobile health; mobile phone; primary prevention.

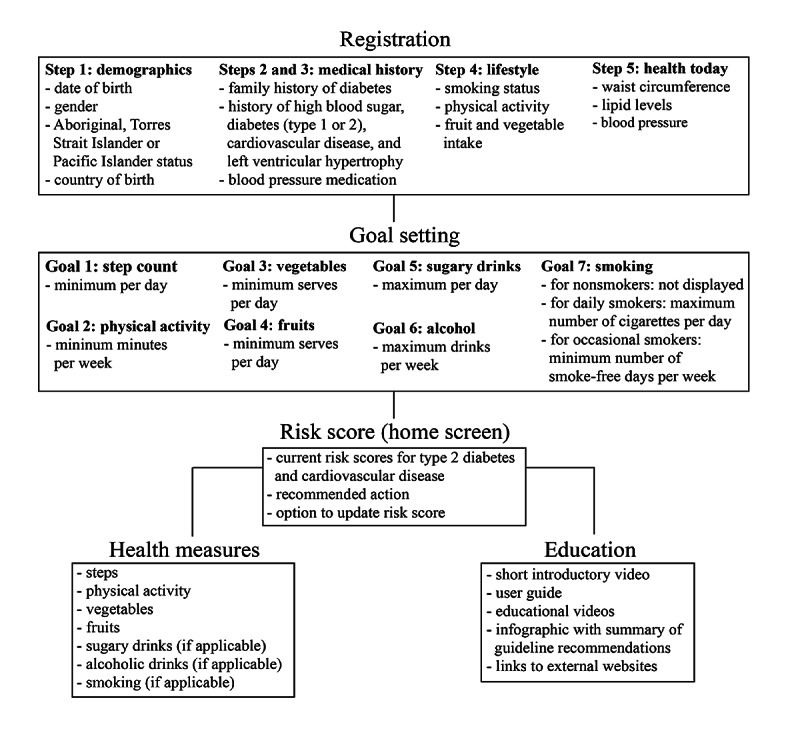

Figure 1

Flowchart of the app, starting from registration.

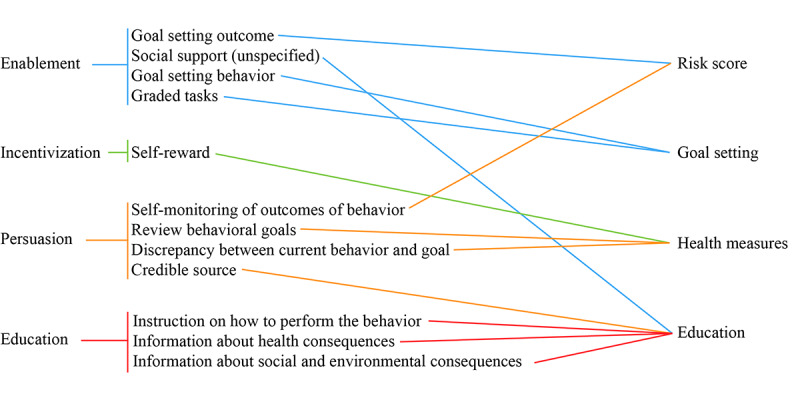

Figure 2

Connections between the selected intervention functions and the 4 app modules via the corresponding behavior change techniques.

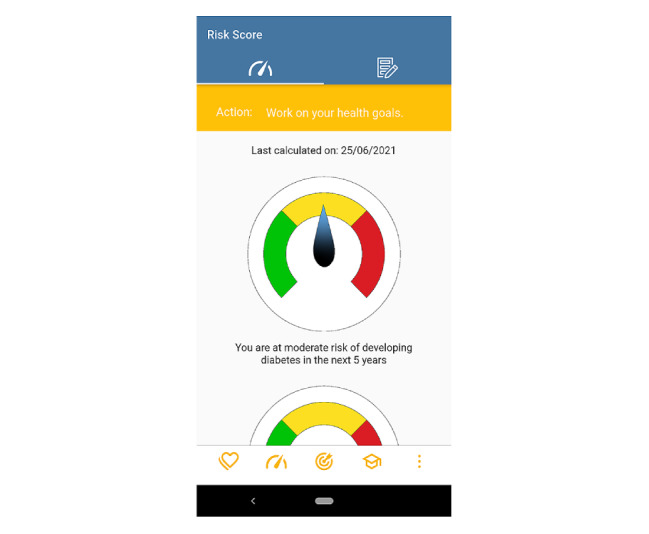

Figure 3

Screenshot of the risk score module.

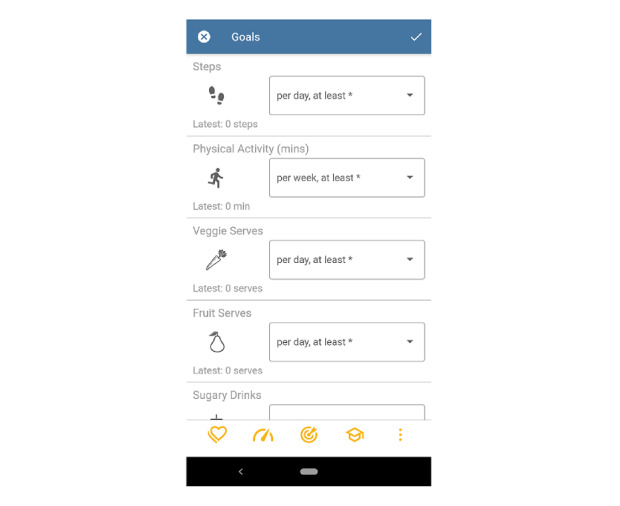

Figure 4

Screenshot of the goal setting module.

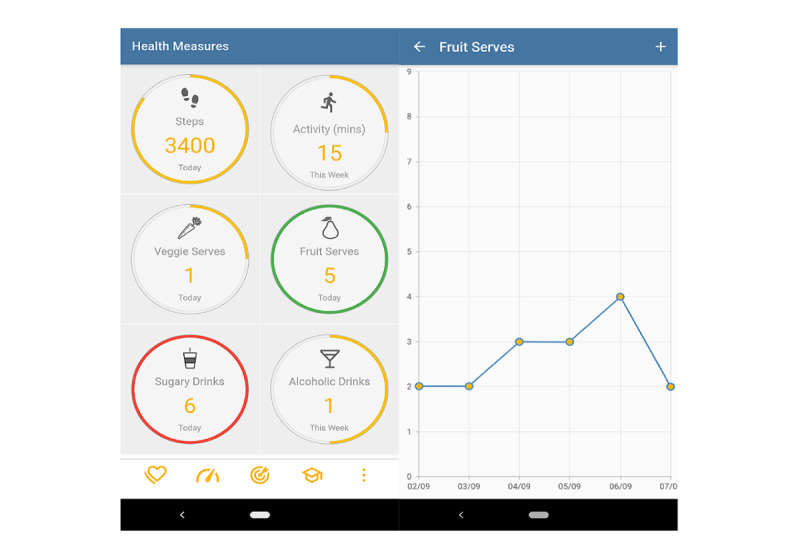

Figure 5

Screenshots of health measures module.

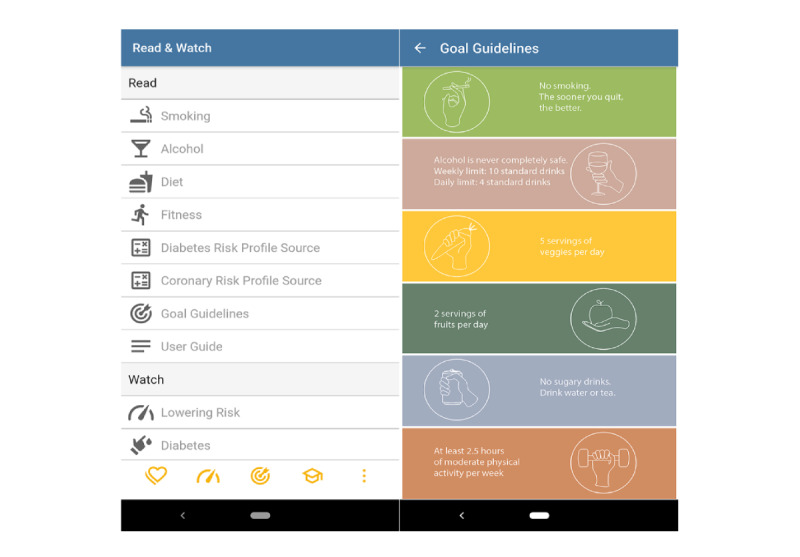

Figure 6

Screenshots of the educational module.
