. 2022 May 21;14(1):20.
doi: 10.1186/s13089-022-00271-9.

A novel in-plane technique ultrasound-guided pericardiocentesis via subcostal approach

Adi Osman  1 , Azma Haryaty Ahmad  2 , Nurul Shaliza Shamsudin  3 , Muhammad Faiz Baherin  3 , Chan Pei Fong  4
Affiliations

A novel in-plane technique ultrasound-guided pericardiocentesis via subcostal approach

Adi Osman et al. Ultrasound J. .

Abstract

Background: Cardiac tamponade occurs when fluid or blood, fills the pericardial space, and causes hemodynamic compromise due to compression of the heart. It is a potentially life-threatening condition, that requires rapid recognition and immediate treatment. Formerly, blind or surgical techniques were used, and it is associated with complications. Medical technology development has enabled us to perform the procedure safely, with the assistance of ultrasound devices. This article will highlight the novel use of an in-plane subcostal technique, as a safe option for pericardiocentesis in cardiac tamponade.

Case presentation: A 50-year-old man presented to the emergency department (ED) with shortness of breath and shock. He was intubated for respiratory distress. His bedside echocardiography showed cardiac tamponade. Ultrasound-guided pericardiocentesis was carried out using an in-plane technique, at the subcostal region, with a high-frequency linear ultrasound transducer. This particular method provided full visualization of needle trajectory throughout the procedure. It was successfully completed with no complications and patient's hemodynamic status improved post-procedure. He was successfully discharged on day 13.

Conclusions: The in-plane subcostal pericardiocentesis is a safe, and simple approach that can be performed in the ED for patients with cardiac tamponade. We recommend this new in-plane method, with high-frequency linear transducer at the subcostal area as an alternative when cardiac window for other approaches cannot be visualized.

Keywords: Needle Visualization; Pericardiocentesis; Subcostal Approach; Ultrasound-guided.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interests.

Figures

Fig. 1
Fig. 1

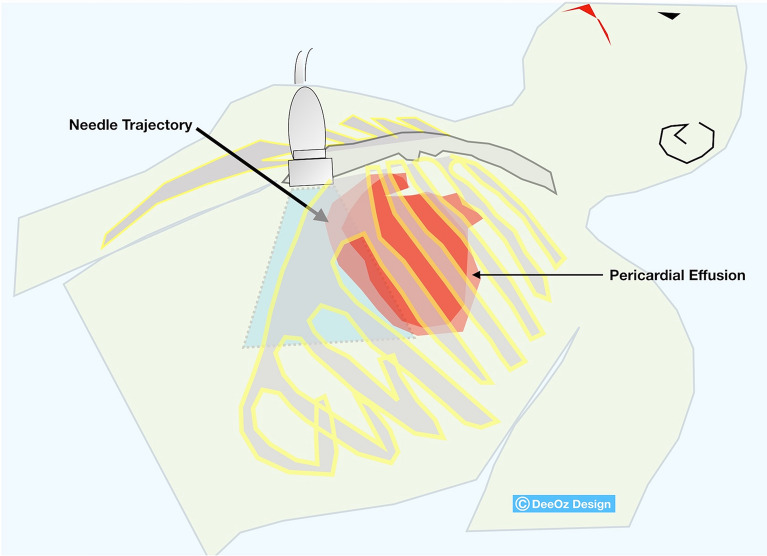

High-frequency linear ultrasound transducer was placed horizontally at subcostal area with the marker pointing caudally
Fig. 2
Fig. 2

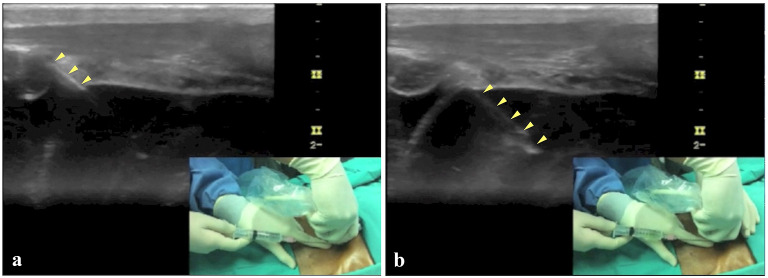

a Needle tip was visualized piercing the pericardial sac, b using in-plane technique, the needle tip was fully visualized as it was advanced into the pericardial space. 200 ml of hemoserous fluid was aspirated and a pigtail catheter was left in-situ for continuous drainage
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Spodick DH. Acute cardiac tamponade. N Engl J Med. 2003;349(7):684–690. doi: 10.1056/NEJMra022643. - DOI - PubMed
    1. Tsang TS, Freeman WK, Sinak LJ, Seward JB. Echocardiographically guided pericardiocentesis: evolution and state-of-the-art technique. Mayo Clin Proc. 1998;73(7):647–652. doi: 10.1016/S0025-6196(11)64888-X. - DOI - PubMed
    1. Maggiolini S, Bozzano A, Russo P, et al. Echocardiography-guided pericardiocentesis with probe-mounted needle: report of 53 cases. J Am Soc Echocardiogr. 2001;14(8):821–824. doi: 10.1067/mje.2001.114009. - DOI - PubMed
    1. Luis SA, Kane GC, Luis CR, Oh JK, Sinak LJ. Overview of Optimal Techniques for Pericardiocentesis in Contemporary Practice. Curr Cardiol Rep. 2020;22(8):60. doi: 10.1007/s11886-020-01324-y. - DOI - PubMed
    1. Maggiolini S, De Carlini CC, Imazio M. Evolution of the pericardiocentesis technique. J Cardiovasc Med (Hagerstown) 2018;19(6):267–273. doi: 10.2459/JCM.0000000000000649. - DOI - PubMed
