Case Reports
. 2022 May 21;22(1):199.
doi: 10.1186/s12893-022-01636-6.

Papillary muscle avulsion following balloon mitral valvotomy evaluated with three-dimensional echocardiography

Affiliations
Case Reports

Papillary muscle avulsion following balloon mitral valvotomy evaluated with three-dimensional echocardiography

Wenjuan Bai et al. BMC Surg. .

Abstract

Background: Percutaneous balloon mitral valvotomy is a common therapeutic approach for rheumatic mitral stenosis. Avulsion of the papillary muscle is a rare but serious complication of balloon mitral valvotomy. The papillary muscles are derived from the trabecular layer of the developing ventricular walls. When subjected to a force, avulsion of papillary muscle from the trabecular layer may occur.

Case presentation: In this case report, we describe a patient with rheumatic mitral stenosis, who experienced avulsion of the mitral papillary muscle from the left ventricular wall after undergoing balloon mitral valvotomy. Papillary muscle alvusion resulted in severe mitral regurgitation, which was finally treated by mitral valve replacement.

Conclusion: We successfully diagnosed avulsion of the papillary muscle following balloon mitral valvotomy. Three-dimensional transthoracic echocardiography provides more information on mitral apparatus structure than two-dimensional transthoracic echocardiography.

Keywords: Alvusion; Balloon mitral valvotomy; Papillary muscle.

PubMed Disclaimer

Conflict of interest statement

The authors declare that they have no competing interest.

Figures

Fig. 1
Fig. 1

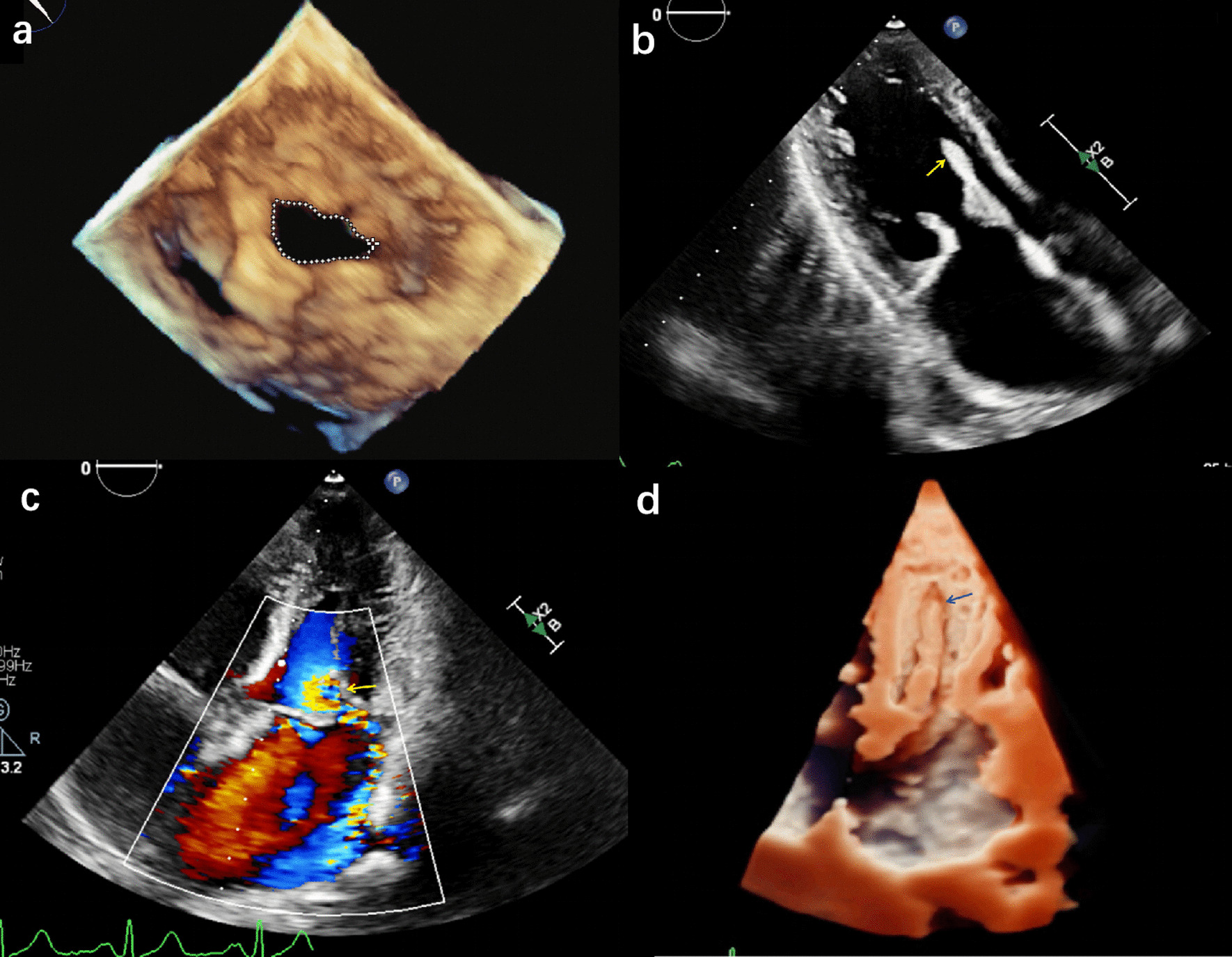

a Three-dimensional transesophageal echocardiography revealing mitral stenosis. b Transthoracic echocardiography revealing avulsion of the papillary muscle from the left ventricular wall. c Color Doppler Flow Imaging revealing severe mitral regurgitation (yellow arrow). d Three-dimensional echocardiogram revealing papillary muscle avulsion (blue arrows)

Similar articles

Cited by

References

    1. Fawzy ME. Percutaneous mitral balloon valvotomy. Catheter Cardiovasc Interv. 2007;69(2):313–321. doi: 10.1002/ccd.21008. - DOI - PubMed
    1. Hasan-Ali H, Shams-Eddin H, Abd-Elsayed AA, Maghraby MH. Echocardiographic assessment of mitral valve morphology after percutaneous transvenous mitral commissurotomy (PTMC) Cardiovasc Ultrasound. 2007;8(5):48. doi: 10.1186/1476-7120-5-48. - DOI - PMC - PubMed
    1. Wilkins GT, Weyman AE, Abascal VM, Block PC, Palacios IF. Percutaneous balloon dilatation of the mitral valve: an analysis of echocardiographic variables related to outcome and the mechanism of dilatation. Br Heart J. 1988;60:299–308. doi: 10.1136/hrt.60.4.299. - DOI - PMC - PubMed
    1. Spicer DE, Bridgeman JM, Brown NA, Mohun TJ, Anderson RH. The anatomy and development of the cardiac valves. Cardiol Young. 2014;24(6):1008–1022. doi: 10.1017/S1047951114001942. - DOI - PubMed
    1. Simmers TA, Meijburg HW, de la Rivière AB. Traumatic papillary muscle rupture. Ann Thorac Surg. 2001;72(1):257–259. doi: 10.1016/S0003-4975(00)02498-X. - DOI - PubMed
