Skip to main page content
U.S. flag

An official website of the United States government

Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Access keys NCBI Homepage MyNCBI Homepage Main Content Main Navigation
. 2022 May 26;13(1):2963.
doi: 10.1038/s41467-022-30702-z.

Iron atom-cluster interactions increase activity and improve durability in Fe-N-C fuel cells

Xin Wan  1 , Qingtao Liu  1 , Jieyuan Liu  1 , Shiyuan Liu  1 , Xiaofang Liu  1 , Lirong Zheng  2 , Jiaxiang Shang  1 , Ronghai Yu  1 , Jianglan Shui  3
Affiliations

Iron atom-cluster interactions increase activity and improve durability in Fe-N-C fuel cells

Xin Wan et al. Nat Commun. .

Abstract

Simultaneously increasing the activity and stability of the single-atom active sites of M-N-C catalysts is critical but remains a great challenge. Here, we report an Fe-N-C catalyst with nitrogen-coordinated iron clusters and closely surrounding Fe-N4 active sites for oxygen reduction reaction in acidic fuel cells. A strong electronic interaction is built between iron clusters and satellite Fe-N4 due to unblocked electron transfer pathways and very short interacting distances. The iron clusters optimize the adsorption strength of oxygen reduction intermediates on Fe-N4 and also shorten the bond amplitude of Fe-N4 with incoherent vibrations. As a result, both the activity and stability of Fe-N4 sites are increased by about 60% in terms of turnover frequency and demetalation resistance. This work shows the great potential of strong electronic interactions between multiphase metal species for improvements of single-atom catalysts.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Fig. 1

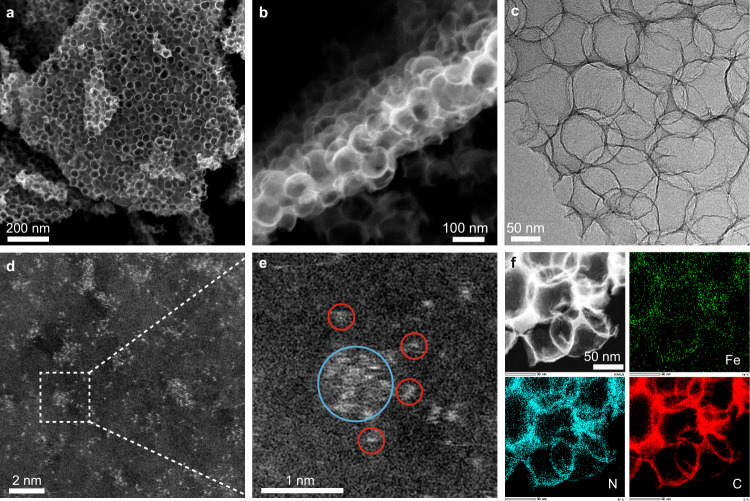

Fig. 1. Morphology characterization of FeSA/FeAC−2DNPC.
a, b SEM images; c TEM image; d, e HAADF-STEM image with zoom-in image showing an iron cluster (cyan circle) and its satellite iron atoms (red circles); f HAADF-STEM image and corresponding element mappings.
Fig. 2
Fig. 2. Active site structure analysis of FeSA/FeAC−2DNPC.
a, b High-resolution N 1 s (a) and Fe 2p (b) XPS spectra of FeSA−2DNPC, FeSA/FeAC−2DNPC, FeSA/FeNP−2DNPC. c Normalized Fe K-edge XANES spectra of FeSA/FeAC−2DNPC and references of Fe foil, FePc and Fe2O3. d, e k3-weighted Fourier transforms (d) and wavelet transforms (e) of the experimental EXAFS spectra of FeSA/FeAC−2DNPC and references of Fe foil, FePc and Fe2O3. FT-EXAFS fitting curve of FeSA/FeAC−2DNPC is present in (d). Source data are provided as a Source Data file.
Fig. 3
Fig. 3. Half-cell tests and quantitative analysis of active sites.
a ORR polarization curves and (b) H2O2 yields and electron transfer numbers of FeSA−2DNPC, FeSA/FeAC−2DNPC, FeSA/FeNP−2DNPC and Pt/C in O2-saturated 0.5 M H2SO4 (0.1 M HClO4 for Pt/C). c SD and TOF of Fe–N4 sites of the indicated Fe–N–C catalysts. Error bars correspond to the standard deviation of three-time measurements. d–f ORR polarization curves and H2O2 yields (inset) before and after 10,000 potential cycles (0.6–1.0 V vs. RHE) in O2-purged 0.5 M H2SO4. g Raman spectra of the catalysts. h Results of metal leaching experiments. ∆Fe%, relative amount of demetalation; v(∆Fe), demetalation rate. i The changes of kinetic current density (jk) and SD after the CV cycling. Source data are provided as a Source Data file.
Fig. 4
Fig. 4. PEMFC tests.
a–c Polarization and power density curves of the indicated catalysts (b, c) before and after the stability test at a constant voltage of 0.5 V under 1 bar H2–air (a). d Polarization curves of FeSA/FeAC−2DNPC (under 1 bar H2–O2) through 30,000 square-wave cycles between 0.6 and 0.95 V under H2–N2. e Polarization and power density curves of FeSA/FeAC−2DNPC under 1 and 2 bar H2–O2. Test conditions: cathode loading 1.5 mgFe–N–C cm−2 and, anode loading 0.2 mgPt cm−2, Nafion 211 membrane, 5 cm2 electrode, 80 °C, 100% relative humidity (RH), flow rates of 300/600 ml min−1 for H2–air polarization, 100/100 ml min−1 for H2–air stability test, and 300/400 ml min−1 for H2–O2 polarization. f Comparison of mass activity of the high-performing Pt-group-metal free catalysts in PEMFC under 1 bar H2–O2. The references to the data points are supplied in Supplementary Table 8. Source data are provided as a Source Data file.
Fig. 5
Fig. 5. Theoretical analysis of the activity and stability of the hybrid active site.
a Model structure of Fe–N4/Fe4–N6 used for theoretical calculation with a spontaneously formed OH ligand. b Schematic ORR process on the Fe–N4 site of Fe–N4-OH/Fe4–N6. c Free energy diagrams at 1.23 V for ORR over three types of active sites of Fe–N4, Fe–N4/Fe4–N6 and Fe–N4-OH/Fe4–N6. d Fe–N radical distribution function profiles of the Fe–N4 moiety in the models of bare Fe–N4 and Fe–N4/Fe4–N6 at 25 and 80 °C. Wavy arrows are used to indicate the amplitude of Fe–N bond-length fluctuation. e Snapshots of Fe–N4 and Fe–N4/Fe4–N6 obtained from MD simulations at 80 °C. The initial configuration (left) and an intermediate state (right) are provided to show the elongation of the Fe–N bond as marked by the yellow box. Source data are provided as a Source Data file.
See this image and copyright information in PMC

References

    1. Chong L, et al. Ultralow-loading platinum-cobalt fuel cell catalysts derived from imidazolate frameworks. Science. 2018;362:1276–1281. doi: 10.1126/science.aau0630. - DOI - PubMed
    1. Ott S, et al. Ionomer distribution control in porous carbon-supported catalyst layers for high-power and low Pt-loaded proton exchange membrane fuel cells. Nat. Mater. 2020;19:77–85. doi: 10.1038/s41563-019-0487-0. - DOI - PubMed
    1. Liu Q, Liu X, Zheng L, Shui J. The solid-phase synthesis of an Fe-N-C electrocatalyst for high-power proton-exchange membrane fuel cells. Angew. Chem. Int. Ed. 2018;57:1204–1208. doi: 10.1002/anie.201709597. - DOI - PubMed
    1. He Y, Liu S, Priest C, Shi Q, Wu G. Atomically dispersed metal-nitrogen-carbon catalysts for fuel cells: advances in catalyst design, electrode performance, and durability improvement. Chem. Soc. Rev. 2020;49:3484–3524. doi: 10.1039/C9CS00903E. - DOI - PubMed
    1. Asset T, Atanassov P. Iron-nitrogen-carbon catalysts for proton exchange membrane fuel cells. Joule. 2020;4:33–44. doi: 10.1016/j.joule.2019.12.002. - DOI
