. 2022 May 16:12:845334.
doi: 10.3389/fonc.2022.845334. eCollection 2022.

Elaboration and Validation of a Nomogram Based on Axillary Ultrasound and Tumor Clinicopathological Features to Predict Axillary Lymph Node Metastasis in Patients With Breast Cancer

Yubo Liu  1 , Feng Ye  2 , Yun Wang  1 , Xueyi Zheng  1 , Yini Huang  1 , Jianhua Zhou  1
Affiliations

Elaboration and Validation of a Nomogram Based on Axillary Ultrasound and Tumor Clinicopathological Features to Predict Axillary Lymph Node Metastasis in Patients With Breast Cancer

Yubo Liu et al. Front Oncol. .

Abstract

Background: This study aimed at constructing a nomogram to predict axillary lymph node metastasis (ALNM) based on axillary ultrasound and tumor clinicopathological features.

Methods: A retrospective analysis of 281 patients with pathologically confirmed breast cancer was performed between January 2015 and March 2018. All patients were randomly divided into a training cohort (n = 197) and a validation cohort (n = 84). Univariate and multivariable logistic regression analyses were performed to identify the clinically important predictors of ALNM when developin1 g the nomogram. The area under the curve (AUC), calibration plots, and decision curve analysis (DCA) were used to assess the discrimination, calibration, and clinical utility of the nomogram.

Results: In univariate and multivariate analyses, lymphovascular invasion (LVI), axillary lymph node (ALN) cortex thickness, and an obliterated ALN fatty hilum were identified as independent predictors and integrated to develop a nomogram for predicting ALNM. The nomogram showed favorable sensitivity for ALNM with AUCs of 0.87 (95% confidence interval (CI), 0.81-0.92) and 0.84 (95% CI, 0.73-0.92) in the training and validation cohorts, respectively. The calibration plots of the nomogram showed good agreement between the nomogram prediction and actual ALNM diagnosis (P > 0.05). Decision curve analysis (DCA) revealed the net benefit of the nomogram.

Conclusions: This study developed a nomogram based on three daily available clinical parameters, with good accuracy and clinical utility, which may help the radiologist in decision-making for ultrasound-guided fine needle aspiration cytology/biopsy (US-FNAC/B) according to the nomogram score.

Keywords: axillary lymph node metastasis; breast cancer; lymphovascular invasion; nomogram; ultrasound features.

PubMed Disclaimer

Conflict of interest statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Figures

Figure 1
Figure 1
Nomogram for the prediction of ALNM in patients with breast cancer.
Figure 2
Figure 2

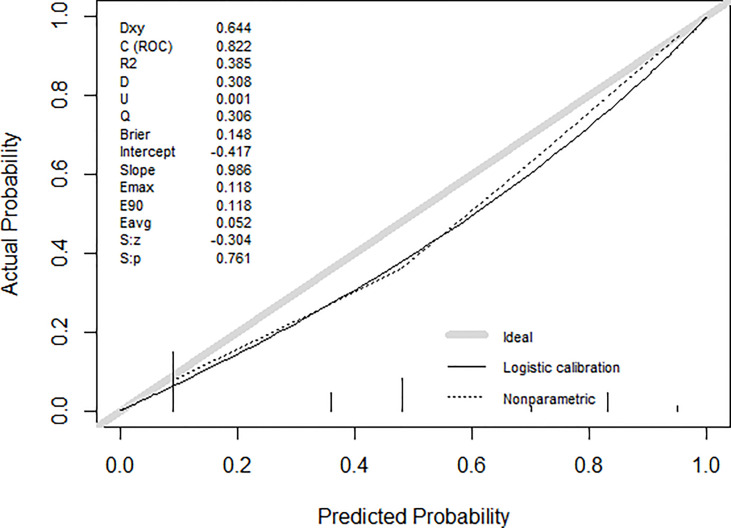

The calibration curves of the nomogram for the probability of ALNM.
Figure 3
Figure 3

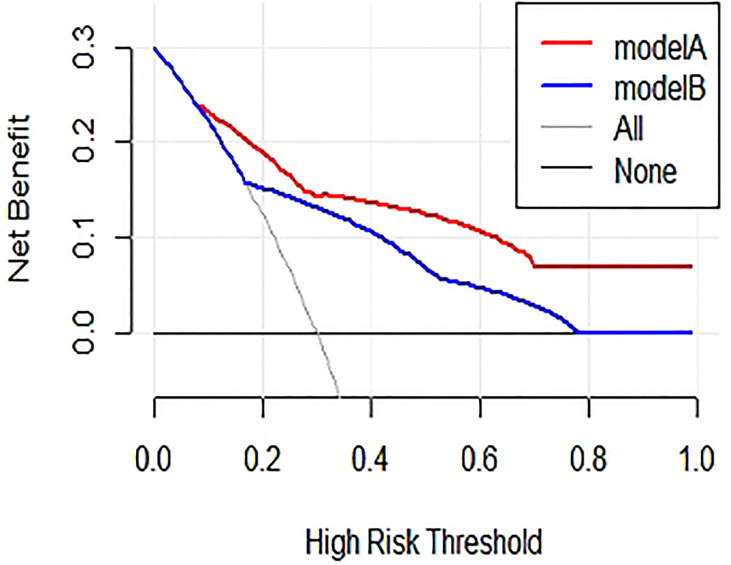

Results of decision curve analysis. Model A = combined model, model B = image-only model. Net benefit in relation to threshold probability for ALNM.
