. 2022 May 14:9:101727.
doi: 10.1016/j.mex.2022.101727. eCollection 2022.

A system for spatial hearing research

Arivudai Nambi Pitchai Muthu  1 , Hasna Fathima  1   2 , Vibha Kanagokar  1 , Jayashree S Bhat  3 , Sathish Kumar  1
Affiliations

A system for spatial hearing research

Arivudai Nambi Pitchai Muthu et al. MethodsX. .

Abstract

The spatial hearing experiments can be simulated using high-fidelity headphones. But these simulated experiments do not account for individual variations and are difficult to investigate when the listener is wearing hearing devices. Hence, the free-field systems are ideal for spatial hearing experiments. However, these systems are not readily available and must be customized based on experimental needs. This paper provides a brief overview of a spatial hearing research facility that is customized to perform experiments on individuals with normal hearing and hearing aid users. •This setup enables the assessment of spatial acuity with 10⁰ precision in the horizontal plane.•The laboratory's universal design enables modifications based on experimental needs with minimum effort.•The signal processing and response acquisition systems are custom designed using MATLAB.

Keywords: Binaural hearing; Sound localization; Spatial hearing lab.

PubMed Disclaimer

Figures

Image, graphical abstract
Graphical abstract
Fig. 1
Fig. 1

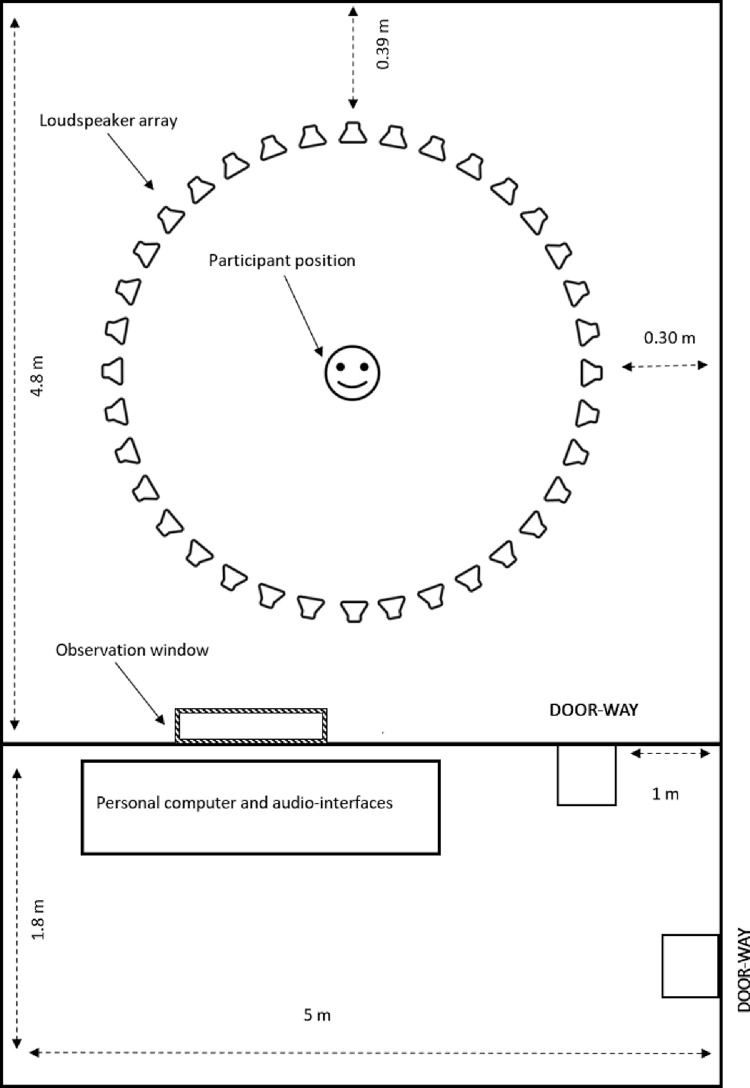

The floor plan of the lab represents the loudspeaker array, subject placement, personal computer, and audio interfaces.
Fig. 2
Fig. 2

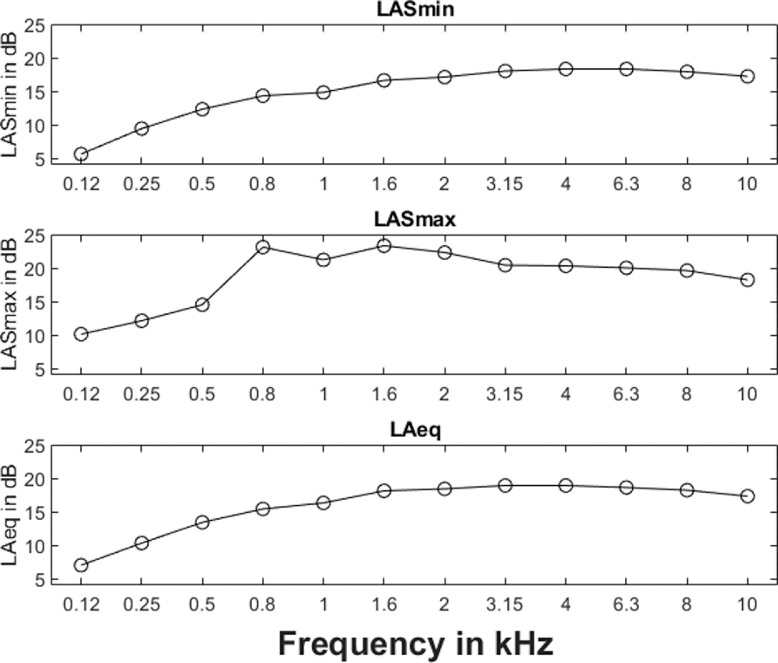

The upper, middle and lower panels depict the minimum, maximum and RMS values of one-third octave band ambient noise levels measured in the experimental room.
Fig. 3
Fig. 3
One octave band reverberation time is represented in a solid line and their corresponding early decay time is represented in a dashed line.
Fig. 4
Fig. 4
Thirty-six loudspeakers positioned on a circular stand installed in the laboratory.
Fig. 5
Fig. 5
Frequency response of Avantone Mixcube speaker without equalization (dotted line) and after equalization (dashed line). The levels at 1 kHz were normalized to 0 dB.
Fig. 6
Fig. 6
Frequency response of three different speakers after equalization and the levels are normalized at 1 kHz to 0 dB.
See this image and copyright information in PMC

References

    1. Hong R.S., Turner C.W. Pure-tone auditory stream segregation and speech perception in noise in cochlear implant recipients. J. Acoust. Soc. Am. 2006;120(1):360–374. http://asa.scitation.org/doi/10.1121/1.2204450 [Internet] Available from: - DOI - PubMed
    1. Glyde H., Buchholz J.M., Dillon H., Cameron S., Hickson L. The importance of interaural time differences and level differences in spatial release from masking. J. Acoust. Soc. Am. 2013;134(2):EL147–EL152. https://pubmed.ncbi.nlm.nih.gov/23927217/ [Internet] Available from: - PubMed
    1. Cameron S., Brown D., Keith R., Martin J., Watson C., Dillon H. Development of the North American listening in spatialized noise-sentences test (NA LiSN-S): sentence equivalence, normative data, and test-retest reliability studies. J. Am. Acad. Audiol. 2009;20(2):128–146. https://pubmed.ncbi.nlm.nih.gov/19927676/ [Internet] Available from: - PubMed
    1. Cameron S., Dillon H., Newall P. The listening in spatialized noise test: an auditory processing disorder study. J. Am. Acad. Audiol. 2006;17(5):306–320. https://pubmed.ncbi.nlm.nih.gov/16796298/ [Internet] Available from: - PubMed
    1. Glyde H., Cameron S., Dillon H., Hickson L., Seeto M. The effects of hearing impairment and aging on spatial processing. Ear Hear. 2013;34(1):15–28. https://pubmed.ncbi.nlm.nih.gov/22941406/ [Internet] Available from: - PubMed
