Development of protective equipment for endoscopic treatment and surgery in otorhinolaryngology

Abstract

Objective: The coronavirus disease pandemic has raised concerns regarding the transmission of infections to healthcare workers. We developed a new protective device to reduce the risk of aerosol diffusion and droplet infection among healthcare workers. Here, we report the results of a theoretical evaluation of the efficacy of this device.

Methods: We used suction-capable masks with and without rubber slits, sleeves for the insertion section of endoscopes and treatment tools, and a cover for the control section of the endoscope. To simulate droplet spread from patients, we created a droplet simulation model and an aerosol simulation model. The results with and without the devices attached and with and without the suction were compared.

Results: The droplet simulation model showed a 95% reduction in droplets with masks with rubber slits; furthermore, a reduction of 100% was observed when the insertion sleeve was used. Evaluation of aerosol simulation when suction was applied revealed an aerosol reduction of 98% and >99% with the use of the mask without rubber slits and with the combined use of the mask and insertion sleeve, respectively. The elimination of droplet emission upon instrument removal confirmed that the instrument sleeve prevented the diffusion of droplets. The elimination of droplets upon repeated pressing of the suction button confirmed that the cover prevented the diffusion of droplets.

Conclusion: We developed a device for infection control, in collaboration with a gastrointestinal endoscopist and Olympus Medical Systems Corporation, that was effective in reducing droplet and aerosol diffusion in this initial theoretical assessment.

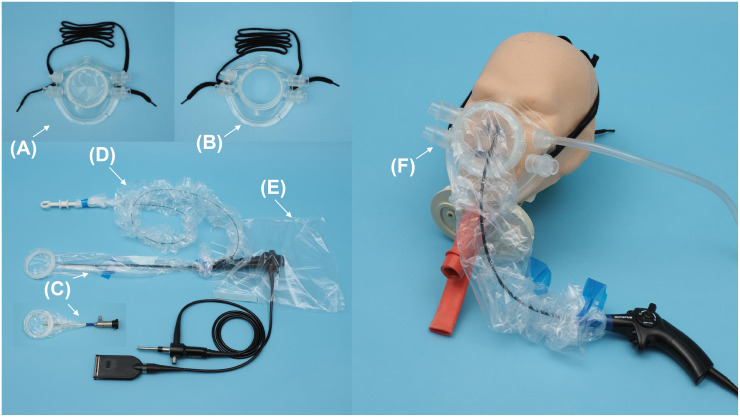

Fig 1. Images of the prototype product.

(A) A mask with a rubber slit (for outpatient use). (B) A mask without a rubber slit (for surgery). (C) Insertion sleeve (attached to a flexible endoscope [Olympus ENF-VT3; Olympus Medical Systems Corporation, Tokyo, Japan] and a rigid endoscope [WA4KA400; Olympus Medical Systems Corporation, Tokyo, Japan]). (D) Instrument sleeve. (E) Control section cover. (F) An example of how the mask and insertion sleeve are attached to the head model when using a flexible endoscope for observation (OLYMPUS ENF-VH2; Olympus Medical Systems Corporation, Tokyo, Japan). A suction tube can be connected to the suction port of the mask. The endoscope insertion port of the mask and the insertion sleeve can be connected by a joint.

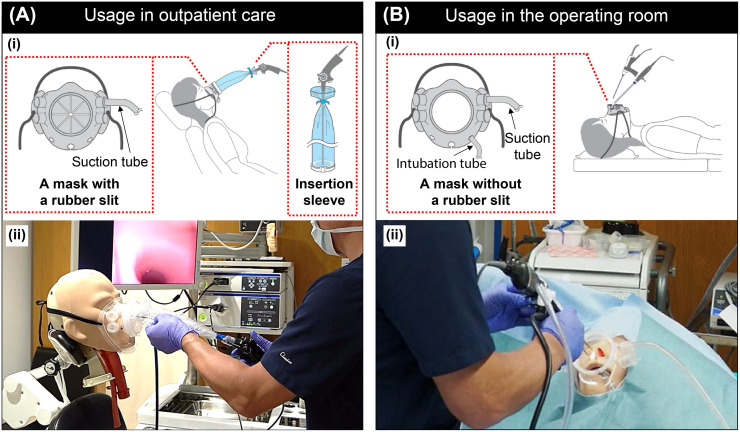

Fig 2. Device usage in outpatient and surgical settings.

(A) Usage in outpatient care: a mask (for outpatient use) is attached to the head model, an insertion sleeve is attached to the endoscope, the joint of the insertion sleeve is joined to the mask, and the surgeon is examining the patient. (i) Illustration of the procedure. (ii) Image showing how the device is used. (B) Usage in the operating room (for surgery): a mask connected to a suction unit is attached to the head model, and the surgeon is performing the treatment. (i) Illustration of the procedure. (ii) Image showing how the device is used. The individual in this figure has given written informed consent (as outlined in PLOS consent form) to publish these case details.

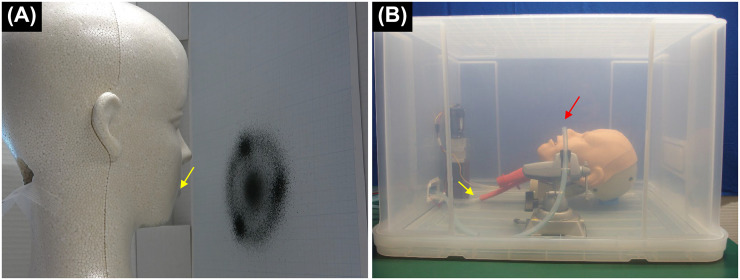

Fig 3. Simulated droplet and aerosol replication models.

(A) A sprayer was installed in the mouth of the head model (yellow arrow) and ink was sprayed. The paper onto which the ink was sprayed was imaged, and the number of pixels that became black after binarization was measured. (B) The airway management training model was placed inside the plastic case and the smoke from an e-cigarette was sprayed through a tube from outside the plastic case (yellow arrow). The number of aerosol particles diffused into the plastic case was measured with a particle counter (red arrow).

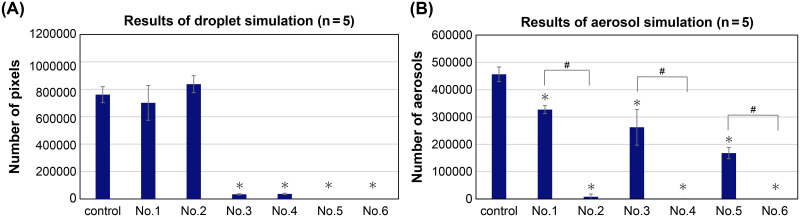

Fig 4. Results of the droplet and aerosol simulations.

Experimental evaluation was performed under the following device configurations: control—no mask; No. 1—wearing a mask without a rubber slit (for surgery) without suction; No. 2—wearing a mask without a rubber slit (for surgery) with suction; No. 3—wearing a mask with a rubber slit (for outpatients) without suction; No. 4—wearing a mask with a rubber slit (for outpatients) with suction; No. 5—wearing a mask with a rubber slit (for outpatients) and using an insertion sleeve for the endoscope without suction; No. 6—wearing a mask with a rubber slit (for outpatients) and using an insertion sleeve for the endoscope with suction. (A) The average number of black pixels, representing droplets (n = 5). (B) The average number of aerosols (n = 5). * P<0.05 vs. control. # P<0.05 between devices used with suction and those used without suction. Statistical analysis was performed using the Mann-Whitney U test.

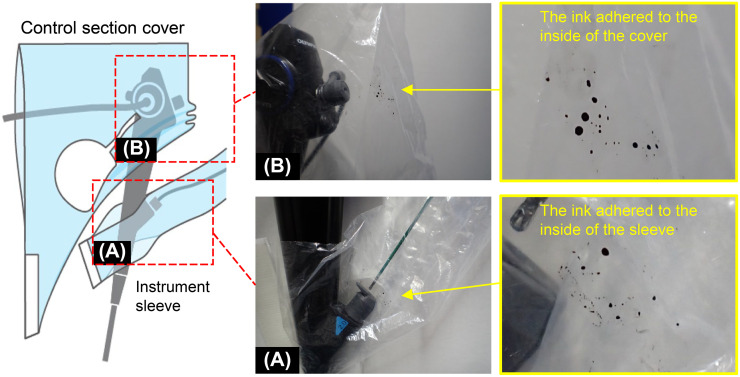

Fig 5. Evaluation of instrument sleeve and control section cover.

(A) Ink that is released when the instrument is removed from the instrument channel of the endoscope adheres to the inside of the instrument sleeve (yellow arrow). An enlarged view of the adhered area is shown (yellow box). B: Ink released when pressing the suction button on the endoscope control unit adheres to the inside of the control section cover (yellow arrow). An enlarged view of the adhered area is shown (yellow box).
