Comparison of calcium-based technologies to remineralise enamel subsurface lesions using microradiography and microhardness

Abstract

Assessment of enamel subsurface lesion remineralisation is essential for the evaluation of novel remineralisation technologies. The gold standard to assess subsurface mineral gain of enamel lesions is transverse microradiography (TMR). However, some studies have utilised surface microhardness (SMH) to evaluate efficacy of remineralisation agents. The aim of this study was to assess remineralisation of enamel subsurface lesions using TMR and SMH after in vitro treatment with calcium-containing technologies, and to test correlation between the TMR and SMH measurements. The parameters obtained from the TMR and SMH analyses of enamel subsurface remineralisation were not significantly correlated. Furthermore, the enamel subsurface remineralisation as measured by TMR was significantly correlated with the water-soluble calcium concentration of the remineralisation products. Scanning electron microscopy revealed surface precipitates formed by specific remineralisation treatments obfuscated accurate assessment of remineralisation by SMH. It was concluded that TMR is a more appropriate method for analysis of enamel subsurface remineralisation, and that SMH values of remineralised enamel should be interpreted with caution. Using TMR the level of remineralisation (%R) by the different technologies was CPP-ACP/F (31.3 ± 1.4%); CPP-ACP (24.2 ± 1.4%); CaSO₄/K₂HPO₄/F (21.3 ± 1.4%); f-TCP/F (20.9 ± 1.0%); Nano-HA/F (16.3 ± 0.3%); Nano-HA (15.3 ± 0.6%) and F alone control (15.4 ± 1.3%).

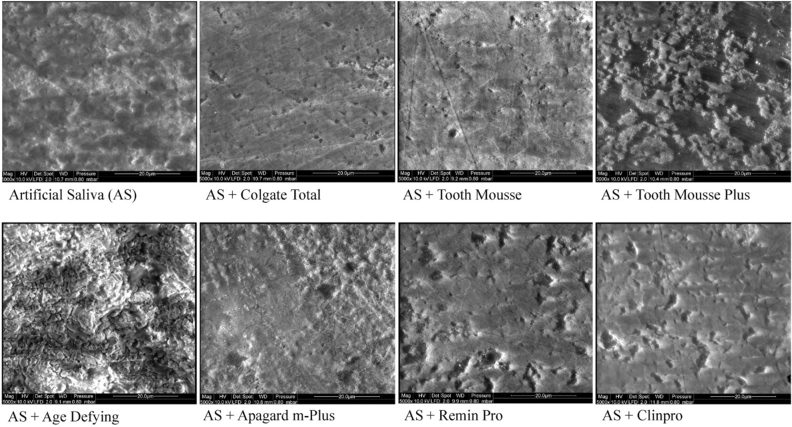

Figure 1

Representative enamel surface SEM images of treated subsurface lesions (× 5000 magnification).

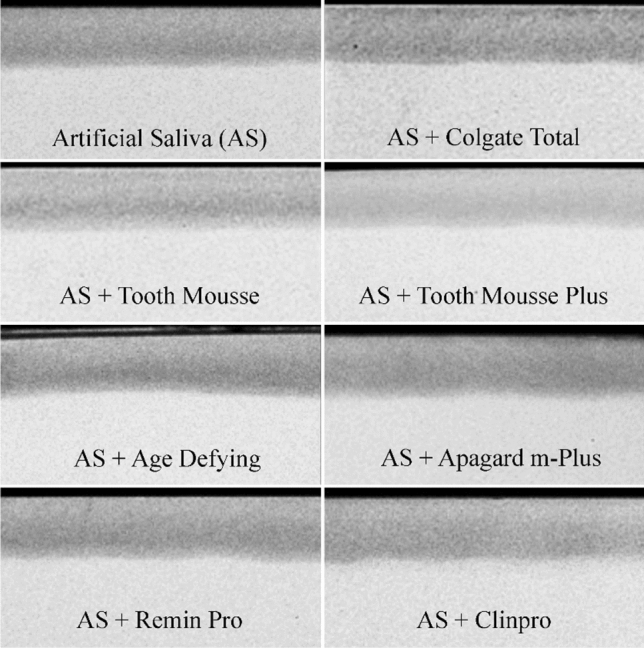

Figure 2

Representative transverse microradiographs of treated enamel subsurface lesions.
