Case Reports
. 2022 Jun 16;14(2):536-546.
doi: 10.3390/neurolint14020043.

Rehabilitation Program for Gait Training Using UAN.GO, a Powered Exoskeleton: A Case Report

Gianfranco Lamberti  1   2 , Gianluca Sesenna  3 , Qamil Paja  4 , Gianluca Ciardi  1   2
Affiliations
Case Reports

Rehabilitation Program for Gait Training Using UAN.GO, a Powered Exoskeleton: A Case Report

Gianfranco Lamberti et al. Neurol Int. .

Abstract

Background: Spinal cord injury is characterized by the interruption of neural pathways of the spinal cord, with alteration of sensory, motor, and autonomic functions. Robotic-assisted gait training offers many possibilities, including the capability to reach a physiological gait pattern.

Methods: A training protocol with UAN.GO®, an active lower limb exoskeleton, was developed. A participant having D10 complete SCI was recruited for this study. The training protocol was composed by 13 sessions, lasting 1.5 h each. The effectiveness of the protocol was evaluated through the mobility performance during the 6 MWT, the level of exertion perceived administrating Borg RPE at the end of each 6 MWT. Furthermore, time and effort required by the participant to earn a higher level of skills were considered.

Results: A significant improvement was registered in the six MWT (t0 = 45.64 m t1 = 84.87 m). Data referring to the mean level of exertion remained stable. The patient successfully achieved a higher level of independence and functional mobility with the exoskeleton.

Discussion: The findings from this preliminary study suggest that UAN.GO can be a valid tool for walking rehabilitation of spinal cord injury patients, allowing the achievement of greater mobility performances.

Keywords: rehabilitation; robotic exoskeleton; spinal cord injury; walking.

PubMed Disclaimer

Conflict of interest statement

PT Gianluca Sesenna was one of the UAN.GO developers; all other authors have no conflict to disclose.

Figures

Figure 1
Figure 1

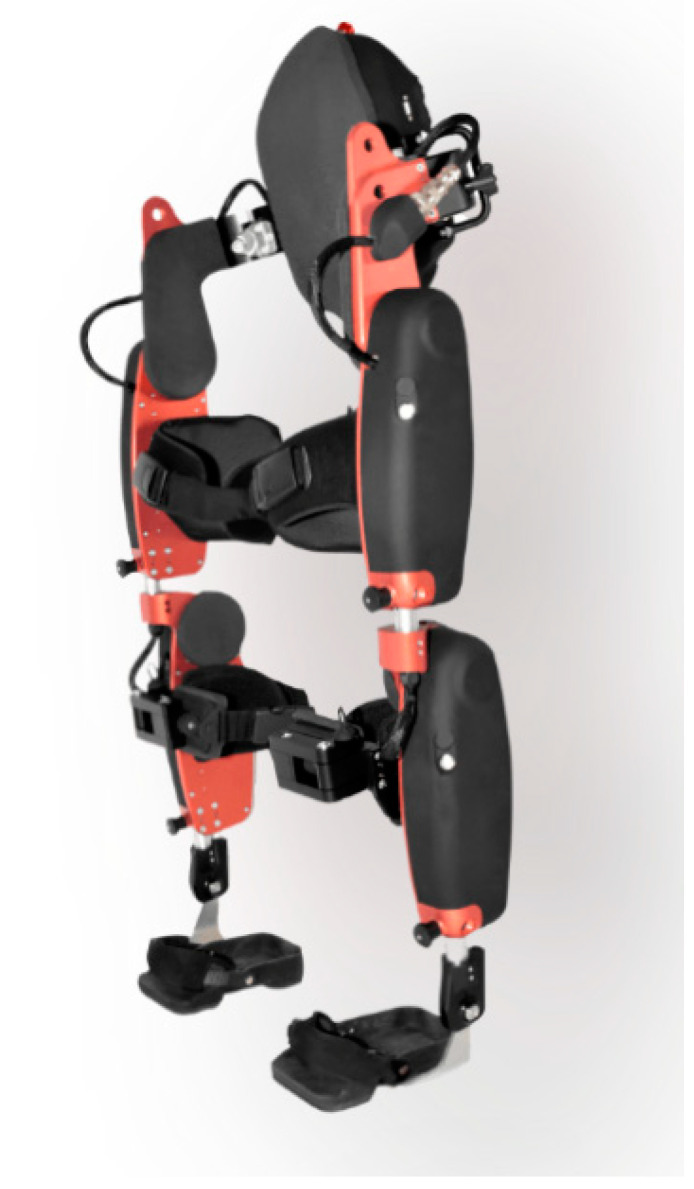

Sagittal view of UAN.GO, the exoskeleton used for the present case report. The device is provided of a bilateral four-joint system (hip, knee, ankle and foot), in which proximal joint are computerized (hip and knee), distal ones are fixed (ankle and foot). A central unit allows movement maps execution.
Figure 2
Figure 2

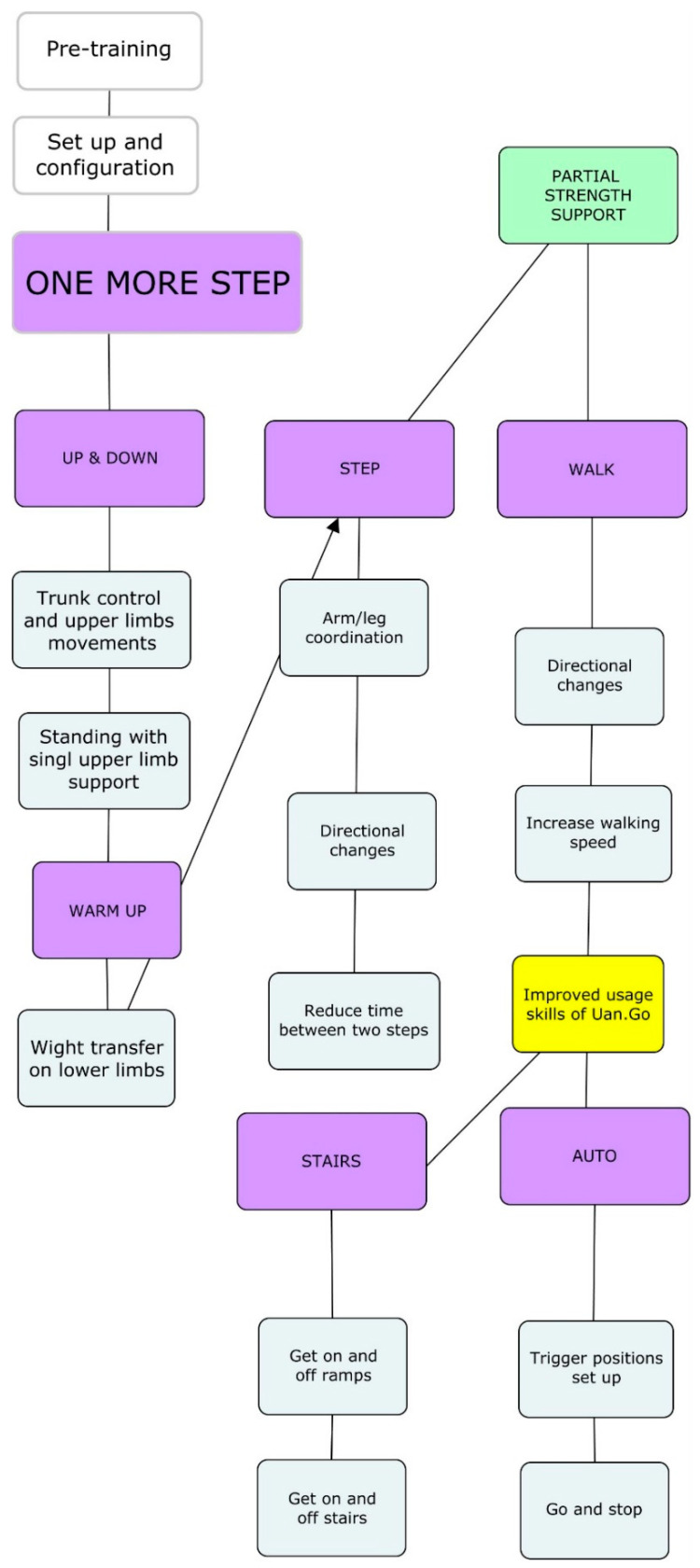

ONE MORE STEP is the treatment protocol developed for this study.
Figure 3
Figure 3

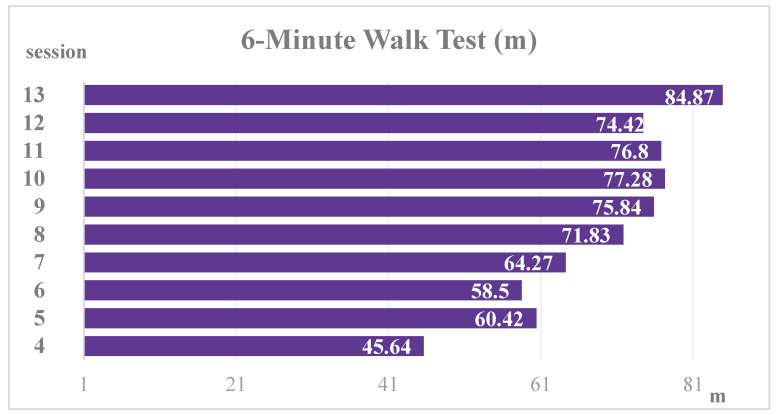

Trend of six MWT.
Figure 4
Figure 4

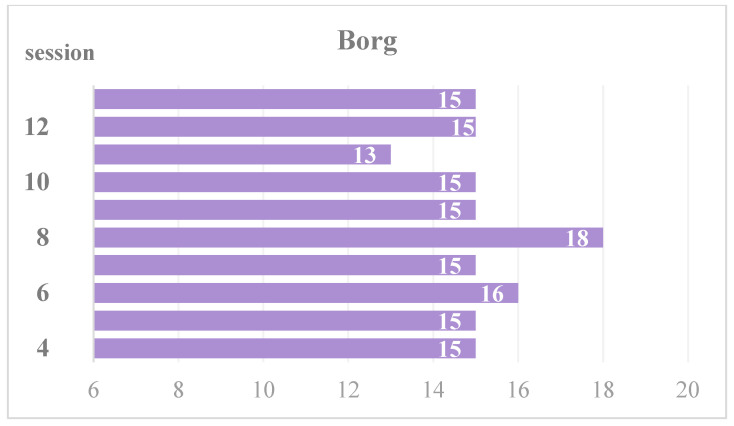

Trend of the BORG score.
Scheme 1
Scheme 1

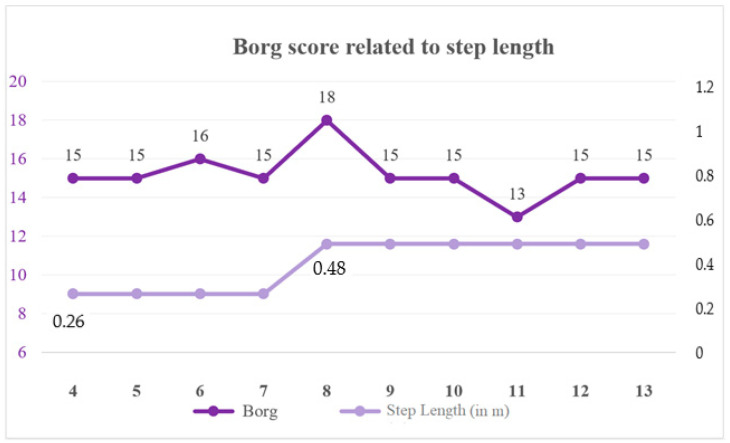

Relation between the Borg score and the length of the step of the movement map used during the session.
Figure 5
Figure 5

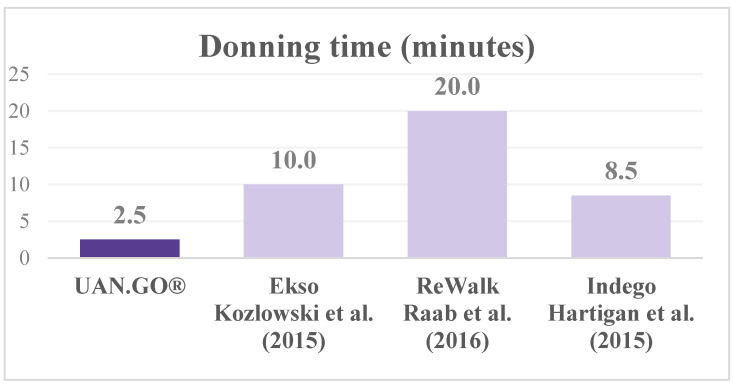

Donning times comparison between Uan.Go, Ekso [36], ReWalk [37] and Indego [38] exoskeletons.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Alizadeh A., Dyck S.M., Karimi-Abdolrezaee S. Traumatic spinal cord injury: An overview of pathophysiology, models and acute injury mechanisms. Front. Neurol. 2019;10:282. doi: 10.3389/fneur.2019.00282. - DOI - PMC - PubMed
    1. Bennett J., Das J.M., Emmady P.D. StatPearls. StatPearls Publishing; Treasure Island, FL, USA: 2021. [(accessed on 13 October 2021)]. Spinal Cord Injuries. Available online: http://www.ncbi.nlm.nih.gov/books/NBK560721/
    1. Wilson J.R., Cadotte D.W., Fehlings M.G. Clinical predictors of neurological outcome, functional status, and survival after traumatic spinal cord injury: A systematic review. J. Neurosurg. Spine. 2012;17((Suppl. 1)):11–26. doi: 10.3171/2012.4.AOSPINE1245. - DOI - PubMed
    1. Hubscher C.H., Herrity A.N., Williams C.S., Montgomery L.R., Willhite A.M., Angeli C.A., Harkema S.J. Improvements in bladder, bowel and sexual outcomes following task-specific locomotor training in human spinal cord injury. PLoS ONE. 2018;13:e0190998. doi: 10.1371/journal.pone.0190998. - DOI - PMC - PubMed
    1. Nash M.S., Groah S.L., Gater D.R., Jr., Dyson-Hudson T.A., Lieberman J.A., Myers J., Sabharwal S., Taylor A.J. Identification and Management of Cardiometabolic Risk after Spinal Cord Injury: Clinical Practice Guideline for Health Care Providers. Top. Spinal Cord Inj. Rehabil. 2018;24:379–423. doi: 10.1310/sci2404-379. - DOI - PMC - PubMed
