Optimization of Nanofiber Wearable Heart Rate Sensor Module for Human Motion Detection

Xiangbin Tang  1 , Aihua Yang  2 , Liangming Li  3
Affiliations

Optimization of Nanofiber Wearable Heart Rate Sensor Module for Human Motion Detection

Xiangbin Tang et al. Comput Math Methods Med. .

Abstract

In order to further improve the detection performance of the wearable heart rate sensor for human physiological and biochemical signals and body kinematics performance, the wearable heart rate sensor module was optimized by using nanofibers. Nanoparticle-doped graphene films were prepared by adding nanoparticles to a graphene oxide solution. The prepared film was placed in toluene, and the nanoparticles were removed to complete the preparation of a graphene film with a porous microstructure. The graphene film and the conductive film together formed a wearable heart rate sensor module. The strain response test of the porous graphene film wearable heart rate sensor module verifies the validity of the research in this paper. The resistance change of the wearable heart rate sensor module based on the PGF-2 film is 8 to 16 times higher than that of the RGO film, and the sensitivity is better, proving that the sensor module designed by this method shows significant application potential in human motion detection.

PubMed Disclaimer

Conflict of interest statement

It is declared by the authors that this article is free of conflict of interest.

Figures

Figure 1
Figure 1

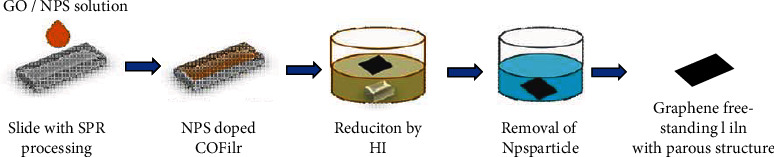

Flow chart of preparation of porous graphene film.
Figure 2
Figure 2

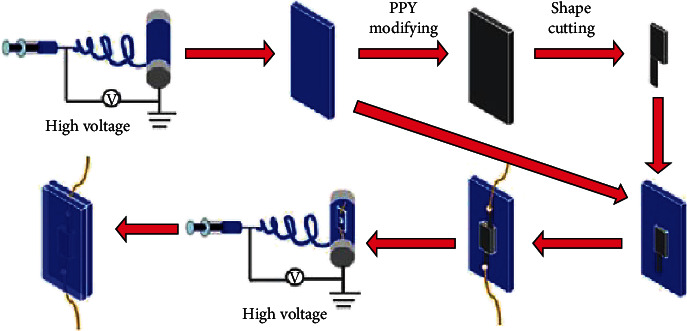

The production flow chart of the wearable heart rate sensor.
Figure 3
Figure 3

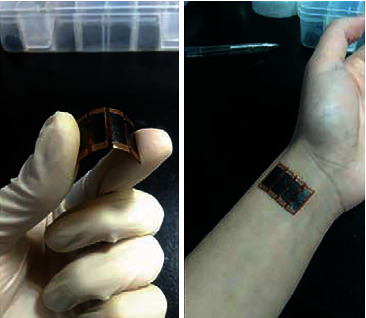

Construction of a wearable heart rate sensor module.
Figure 4
Figure 4

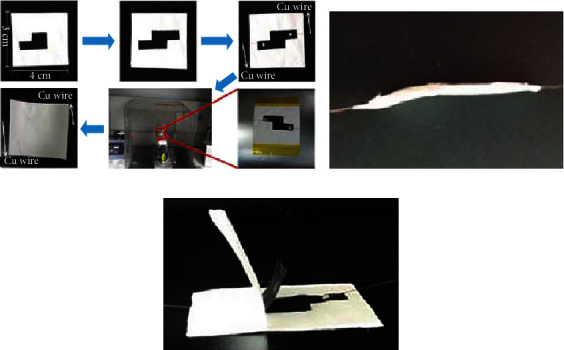

Experimental setup.
Figure 5
Figure 5

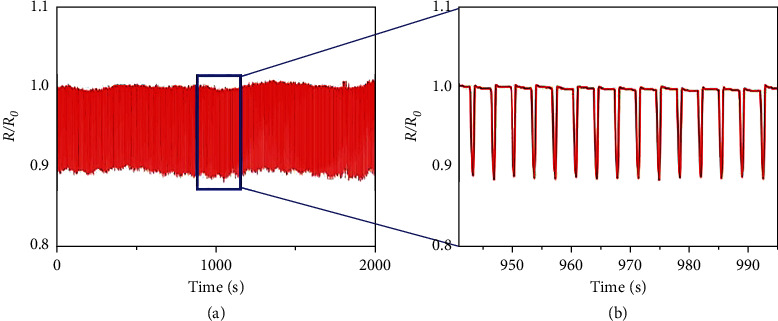

Sensor cycle stability test.
Figure 6
Figure 6

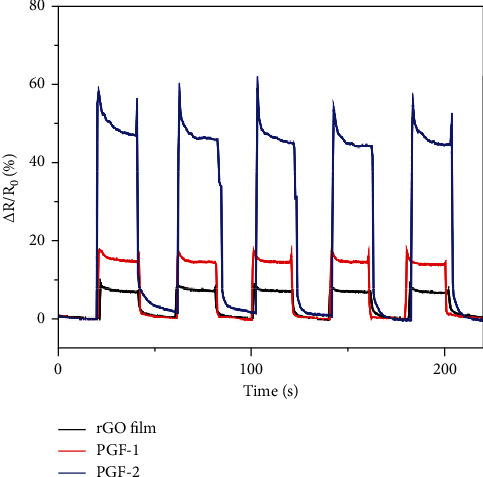

Repeatability test results of strain response.
Figure 7
Figure 7
Relative resistance changes of porous graphene film pairs under different bending states.
Figure 8
Figure 8

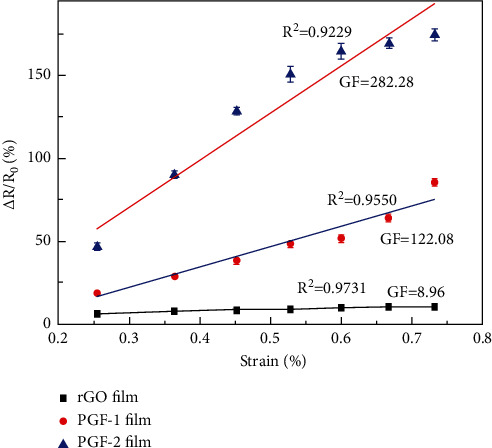

Strain response.
