In vivo experimental validation of detection of gastric slow waves using a flexible multichannel electrogastrography sensor linear array

Abstract

Background: Cutaneous electrogastrography (EGG) is a non-invasive technique that detects gastric bioelectrical slow waves, which in part govern the motility of the stomach. Changes in gastric slow waves have been associated with a number of functional gastric disorders, but to date accurate detection from the body-surface has been limited due to the low signal-to-noise ratio. The main aim of this study was to develop a flexible active-electrode EGG array.

Methods: Two Texas Instruments CMOS operational amplifiers: OPA2325 and TLC272BID, were benchtop tested and embedded in a flexible linear array of EGG electrodes, which contained four recording electrodes at 20-mm intervals. The cutaneous EGG arrays were validated in ten weaner pigs using simultaneous body-surface and serosal recordings, using the Cyton biosensing board and ActiveTwo acquisition systems. The serosal recordings were taken using a passive electrode array via surgical access to the stomach. Signals were filtered and compared in terms of frequency, amplitude, and phase-shift based on the classification of propagation direction from the serosal recordings.

Results: The data were compared over 709 cycles of slow waves, with both active cutaneous EGG arrays demonstrating comparable performance. There was an agreement between frequencies of the cutaneous EGG and serosal recordings (3.01 ± 0.03 vs 3.03 ± 0.05 cycles per minute; p = 0.75). The cutaneous EGG also demonstrated a reduction in amplitude during abnormal propagation of gastric slow waves (310 ± 50 µV vs 277 ± 9 µV; p < 0.01), while no change in phase-shift was observed (1.28 ± 0.09 s vs 1.40 ± 0.10 s; p = 0.36).

Conclusion: A sparse linear cutaneous EGG array was capable of reliably detecting abnormalities of gastric slow waves. For more accurate characterization of gastric slow waves, a two-dimensional body-surface array will be required.

Keywords: EGG; Electrophysiology; Gastric slow waves; High-resolution mapping.

Fig. 1

Benchtop test results of two opamps for EGG recordings in response to synthetic sinusoidal signals at 1, 3, 5, 7 and 9 cpm. A TLC272BID and (B) OPA2325 had a similar high power of 70 dB at 3 cpm, low mains interference of − 4 dB, but the harmonic interference at 100 Hz in TLC272BID (− 14 dB) is higher than it in OPA2325 (− 20 dB)

Fig. 2

Summary of cutaneous EGG correlation with serosal recordings. A Correlations between frequencies (R² = 0.641) and amplitudes (R² = 0.011). B Comparison of cutaneous EGG characteristics (frequency, amplitude, and phase-shift) between normal and abnormal slow waves based on serosal recording classifications

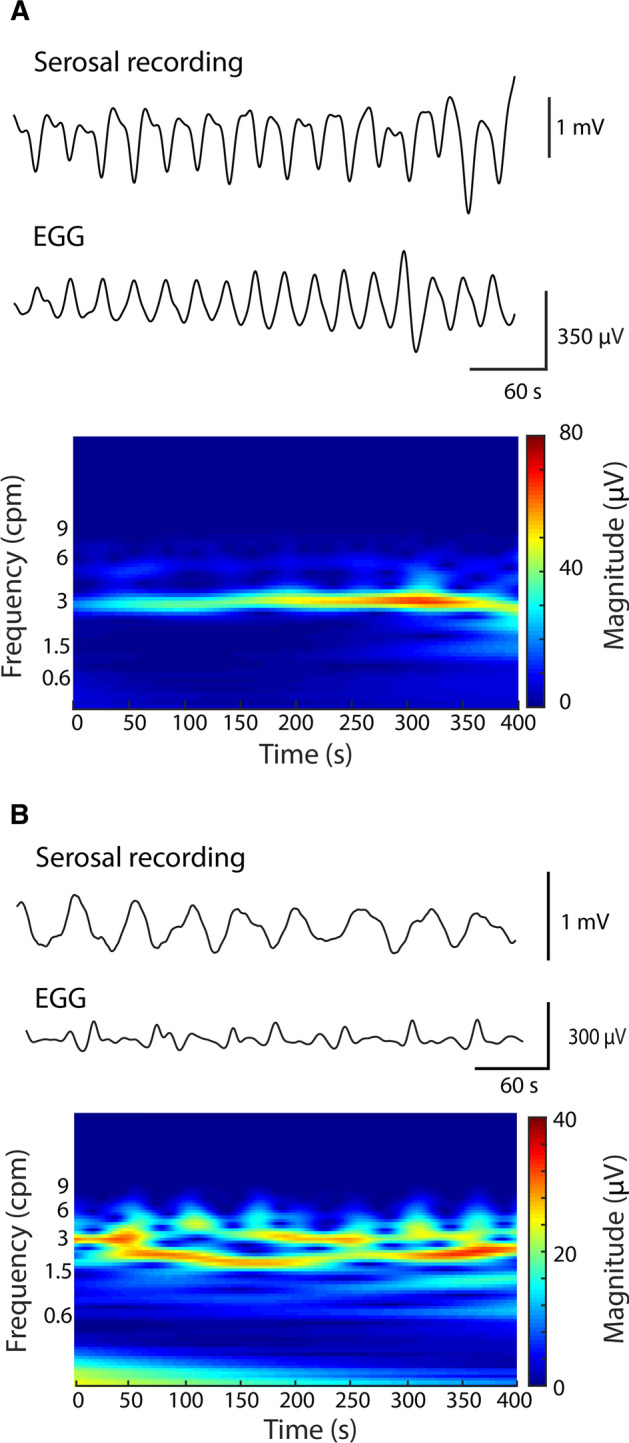

Fig. 3

A Normal slow waves: the cutaneous EGG shows consistent 3 cpm slow waves corresponding to its slow waves in the serosal recording, where the CWT plot showed steady 3 cpm slow waves. B Abnormal slow waves: the cutaneous EGG represents abnormal slow waves (unsteady frequency) in the serosal recording, where the CWT plot showed abrupt changes in slow wave frequency over the period of the recordings

Fig. 4

An example of corresponding slow waves in the serosal electrode and cutaneous EGG: A the traces from eight serosal electrodes in the same column are shown. The recording showed both normal and abnormal slow waves where the normal slow waves showed a frequency of 3 cpm in the antegrade manner (0–600 s) and the abnormal slow waves showed spatiotemporal deviations from the nominal slow waves (600–1200 s); B activation maps showed an individual slow wave’s propagation: antegrade (left), retrograde and ectopic (middle) and retrograde manners (right). The green, yellow, and red bars indicate the types of the activation plot during the recording. C Cutaneous EGG recordings correspond to the serosal traces. D CWT plot represents the contribution of the slow waves in the frequency spectrum over the period of the recording

Fig. 5

EGG amplifier, flexible array and animal validation setup. A The schematic drawing of the circuitry connection between the electrode mapping array and the Cyton biosensing board. B The main components of data acquisition, comprised an electrode array with four sensing buffer electrodes, and a common-mode sensing (CMS) and driven right-leg (DRL) referencing system. C The placement of the cutaneous active electrode array on the epigastrium and the internal HR mapping electrodes surgically placed on the serosal surface of the stomach. The orientation and coverage of the HR mapping electrode (16 × 16 electrodes; 4 mm inter-electrode spacing) relative to the stomach is shown on the left. The stomach is not drawn to scale

Fig. 6

The flowchart of the experimental signal processing and analysis for the serosal (left) and cutaneous EGG recordings (right), starting from the inputs to the signal processing, analysis and outputs
