Non-uniform distribution of dendritic nonlinearities differentially engages thalamostriatal and corticostriatal inputs onto cholinergic interneurons

Abstract

The tonic activity of striatal cholinergic interneurons (CINs) is modified differentially by their afferent inputs. Although their unitary synaptic currents are identical, in most CINs cortical inputs onto distal dendrites only weakly entrain them, whereas proximal thalamic inputs trigger abrupt pauses in discharge in response to salient external stimuli. To test whether the dendritic expression of the active conductances that drive autonomous discharge contribute to the CINs' capacity to dissociate cortical from thalamic inputs, we used an optogenetics-based method to quantify dendritic excitability in mouse CINs. We found that the persistent sodium (NaP) current gave rise to dendritic boosting, and that the hyperpolarization-activated cyclic nucleotide-gated (HCN) current gave rise to a subhertz membrane resonance. This resonance may underlie our novel finding of an association between CIN pauses and internally-generated slow wave events in sleeping non-human primates. Moreover, our method indicated that dendritic NaP and HCN currents were preferentially expressed in proximal dendrites. We validated the non-uniform distribution of NaP currents: pharmacologically; with two-photon imaging of dendritic back-propagating action potentials; and by demonstrating boosting of thalamic, but not cortical, inputs by NaP currents. Thus, the localization of active dendritic conductances in CIN dendrites mirrors the spatial distribution of afferent terminals and may promote their differential responses to thalamic vs. cortical inputs.

Keywords: basal ganglia; mouse; neuroscience; quasi-linear approximation; vervet.

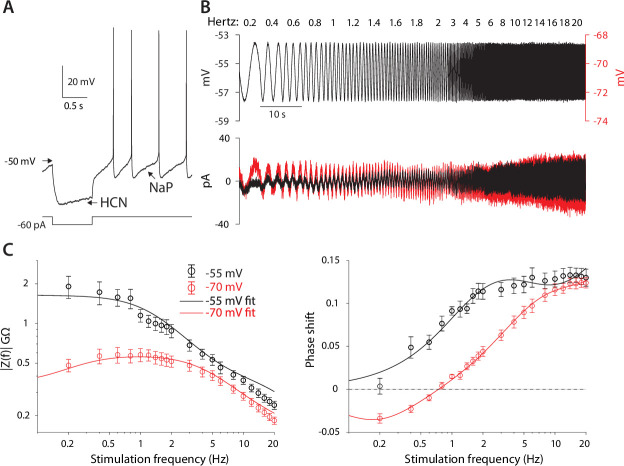

Figure 1.. CIN membranes exhibit voltage-dependent quasi-linear properties.

(A) CINs exhibit a voltage sag due to HCN currents, and autonomous pacemaking due to NaP currents. (B) Application of 2 mV sinusoidal voltage commands to the soma, of increasing frequencies, elicits a current response that is voltage dependent (black trace, –55 mV; red trace, –70 mV). (C) Estimation of the impedance (left) and phase shift (right) show that at –55 mV, CINs exhibit an amplified impedance and that at –70 mV, CINs exhibit a resonance (non-monotonic impedance and negative phase delays). Solid lines are parameter fits for ${\left({\alpha }^2+{\beta }^2\right)}^{-1/2}$ up to a scale factor (left), and phase shift, ${\varphi }_s$ (right, see Equation 5).

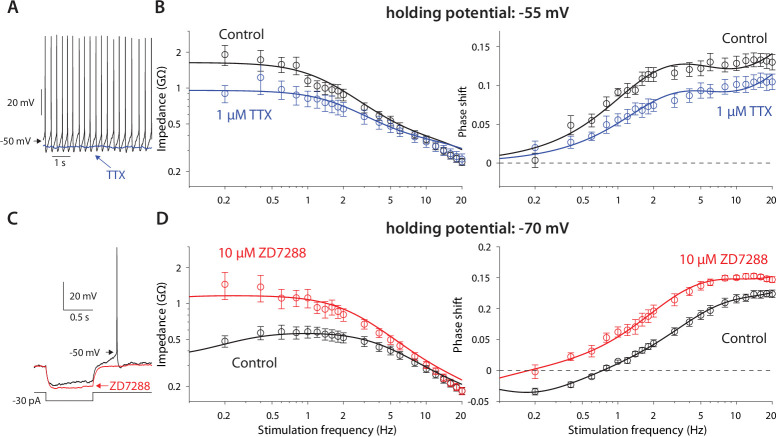

Figure 2.. Amplification is caused by NaP currents, whereas resonance is caused by HCN currents.

(A) TTX (blue) prevents autonomous spiking (black). (B) TTX prevents amplification of the impedance (left), and reduces the phase shift (right). (C) ZD7288 (red) abolishes the voltage sag (black). (D) ZD7288 abolishes the resonance peak in the impedance, and the negative phase shifts in the subhertz range. Solid lines are parameter fits as in Figure 1.

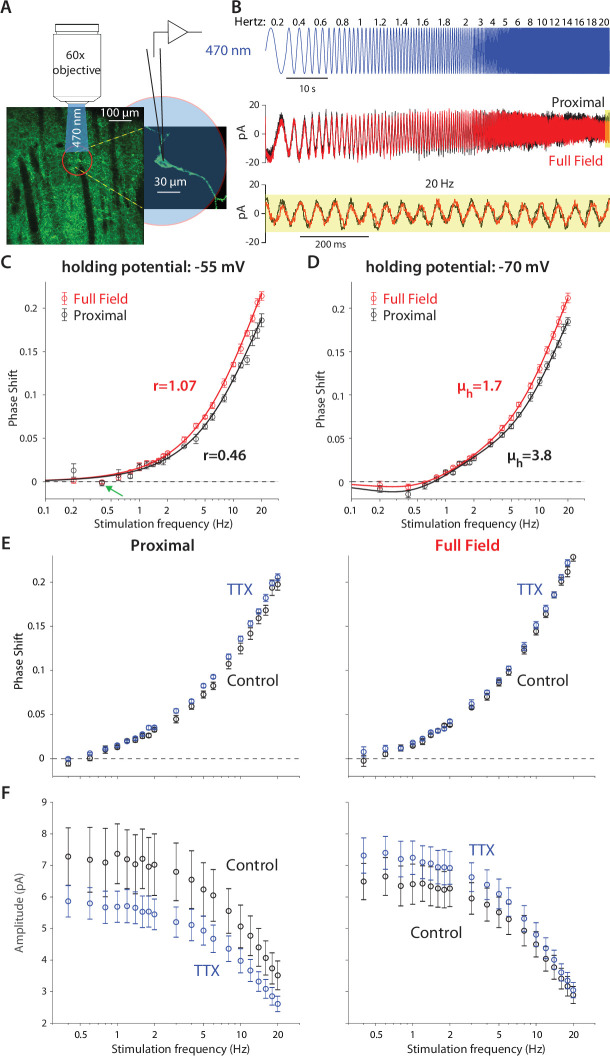

Figure 3.. Optogenetic interrogation of the quasi-linear properties of CIN dendrites indicates that dendritic nonlinearities are more prominent proximally.

(A) A CIN in a sagittal slice from ChAT-ChR2 mouse is patch-clamped in the whole-cell mode while either a small proximal region around the soma or the full-field are illuminated with a sinusoidally modulated 470 nm LED. (B) The current response to the proximal (black) and full-field (red) illumination differ, with the phase of the full-field illumination right-shifted at the higher frequencies (20 Hz is highlighted in yellow). (C) Phase shifts at –55 mV holding potential, calculated for proximal (black) and full-field illumination (red). A tendency towards negative phase shifts is present at 0.4 Hz (green arrow). Fitting the passive model at –55 mV demonstrated that the effective range of illumination (r) is larger for the full field fit (Equation 2). (D) Phase shifts at –70 mV holding potential, exhibit a negative phase shift, and the resonance parameter (µ_h) is smaller for the full field fit, as is the magnitude of the amplification parameter (µ_n, see main text). The elevation in these parameters’ magnitudes when illuminating proximally relative to full-field suggests that the surface densities of NaP and HCN currents are higher proximally. (E) Phase response for proximal (left) and full-field illumination (right) in TTX at –55 mV. (F) Amplitude response for proximal (left) and full-field illumination (right) at –55 mV reveals an opposite effect of TTX.

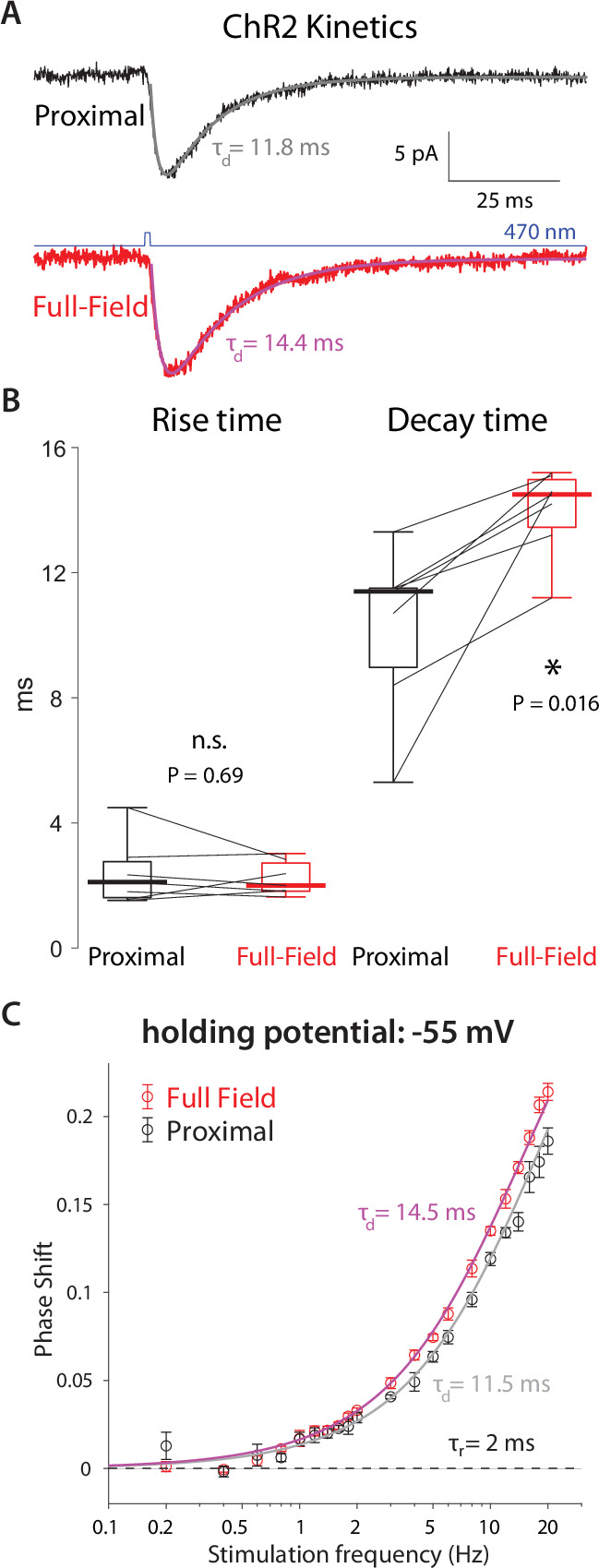

Figure 3—figure supplement 1.. High-frequency phase delays in response to optogenetic activation are attributable to ChR2 kinetics and dendritic delays.

(A) Mean somatic current responses to a 1 ms-long proximal (black, alpha-function fit in gray) and full-field (red, fit in magenta) 470 nm illumination. (B) Distributions of rise and decay time constants (n=7 CINs, N=3 mice) demonstrate that the decay time constant was significantly larger by approximately 3 ms for the full-field illumination, due to dendritic delays. (C) Phase delays of an alpha function with the observed time constants fit the empirical phased delays observed at –55 mV.

Figure 3—figure supplement 2.. Amplitude responses to proximal (black) and full-field (red) illumination at the two holding potentials.

While the curves at –70 mV hint at the presence of a low frequency resonance, the large error bars provide minimal constraints to model fits.

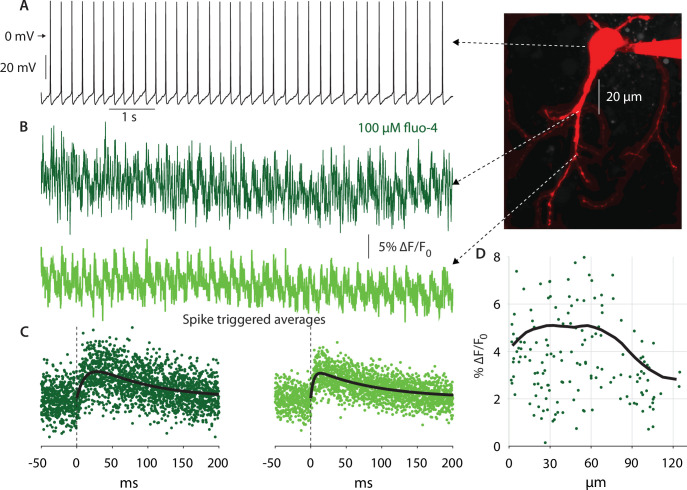

Figure 4.. Autonomous action potentials actively back-propagate in CIN dendrites up to 70 µm from the soma.

(A) Autonomous discharge of a CIN that was patched and filled with fluo-4 and Alexa Fluor 568 for 2PLSM imaging (image). (B) Line scans at various distances from the soma exhibit Ca²⁺ oscillations caused by bAPs. (C) Calculating the spike-triggered average of these oscillations and fitting an alpha-function gives an estimate of the amplitude of these oscillations (in % ∆F/F_o). (D) The scatter plot of these amplitudes as a function of distance from the soma (11 CINs from 7 mice are pooled) exhibits a large degree of variability. However, a 35 µm moving average (black line) exhibits that the Ca²⁺ transients begin to decay approximately 70 µm from the soma, indicating that bAPs are supported by Nav channels up to that point (the initial increase up to 20 µm is due to the increase in the surface-to-volume ratio in the large proximal dendrites).

Figure 5.. Thalamic – but not cortical EPSPs – onto CINs are boosted by NaP currents in wildtype mice.

(A) CINs were patched in current clamp in Thy1-ChR2 mice, so that 470 nm LED illumination of striatal slices activated nominally cortical terminals. (B) Optogenetically evoked monosynaptic cortical EPSPs were unaffected by ranolazine. (C) The parafascicular nucleus (PfN) of Vglut2-Cre mice was inoculated with AAVs harboring Cre-dependent ChR2, so that 470 nm LED illumination of striatal slices activated monosynaptic PfN terminals while CINs were patched in current clamp mode. (D) Optogenetically evoked thalamic EPSPs in CINs (held between –50 mV and –60 mV) were reduced by 30 µM ranolazine.

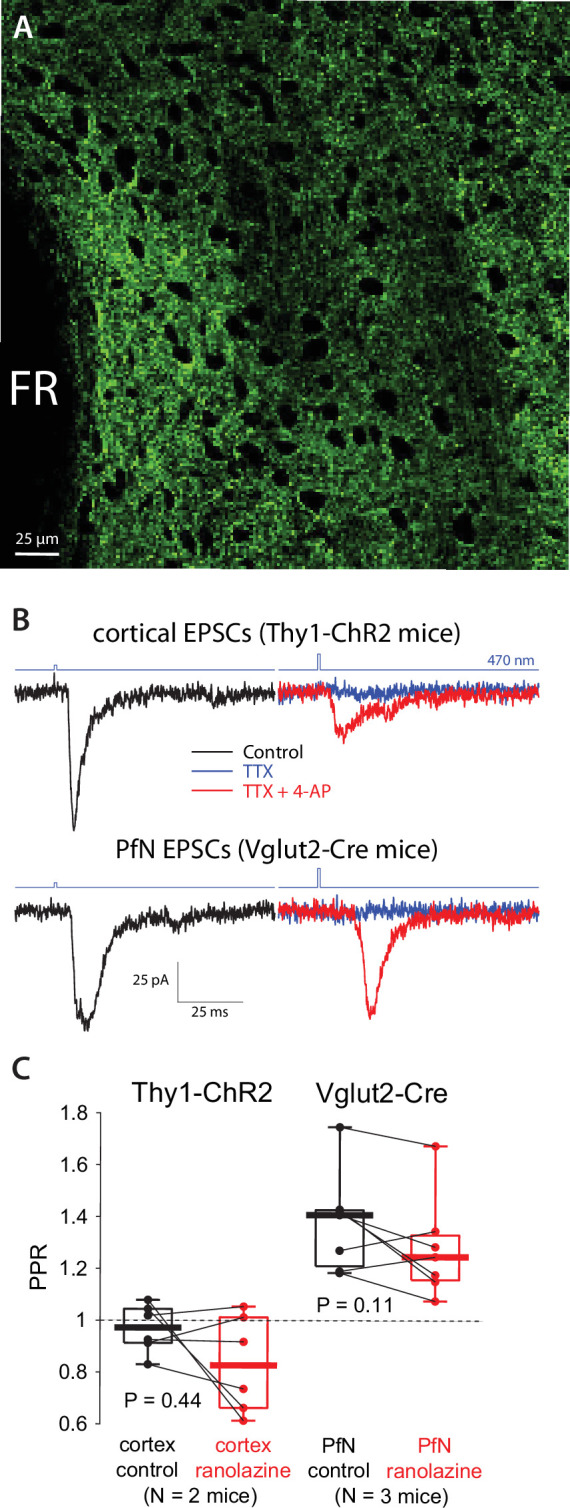

Figure 5—figure supplement 1.. Monosynaptic excitatory cortical and thalamic paired-pulse ratios (PPRs) are not affected by ranolazine.

(A) Coronal slice via the PfN in a Thy1-ChR2-EYFP mouse express EYFP in fibers only but not in somata, ruling out that intrastriatal optogenetic activation in these mice recruits thalamic inputs. FR – fasciculus retroflexus. (B) Optogenetic EPSCs in all CINs recorded in Thy1-ChR2 (n=8 neurons, N=2 mice) and in 6/7 CINs from Vglut2-cre mice, whose PfN was inoculated with AAVs harboring floxed ChR2 (N=2) were monosynaptic, as 4-AP (100 µM) rescued release in the presence of TTX (1 µM). (C) Optical PPRs (100 ms interval) recorded in Thy1-ChR2 mice (left) or in Vglut2-cre mice whose PfN was transfected with AAVs harboring ChR2 (right) are unchanged by ranolazine.

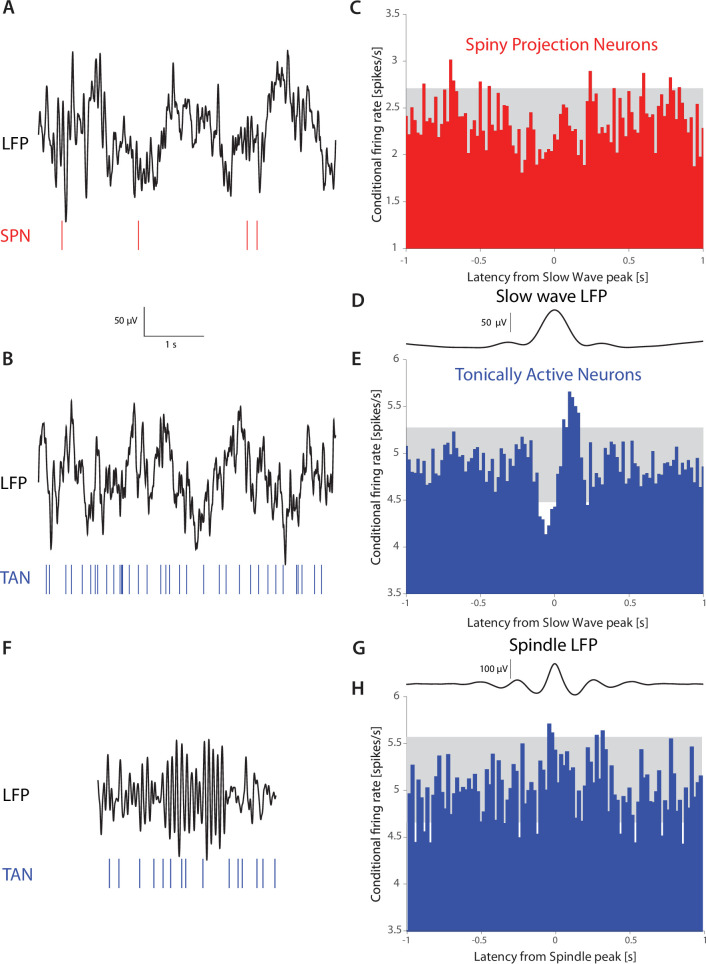

Figure 6.. TANs, but not SPNs, exhibit a pause-like response to slow-wave events occurring during natural non-REM sleep in non-human primates (NHPs).

(A) Simultaneous recording of LFP and an SPN in an NHP during N2 and N3 stages of sleep. (B) Simultaneous recording of LFP and a TAN in an NHP during N2 and N3 stages of sleep. (C) SPN firing rate conditioned on the occurrence of an LFP slow wave event (6,065 triggers). (D) Average striatal LFP signal triggered on the occurrence of slow wave events (see Materials and methods). (E) TAN firing rate conditioned on the occurrence of slow wave event (28,603 triggers). (F).Simultaneous recording of LFP and a TAN in an NHP during a sleep spindle. (G) Average striatal LFP signal triggered on the occurrence of a sleep spindle (see Materials and methods). (H) TAN firing rate conditioned on the occurrence of a sleep spindle (5829 triggers). Gray box indicates the 99% confidence intervals.

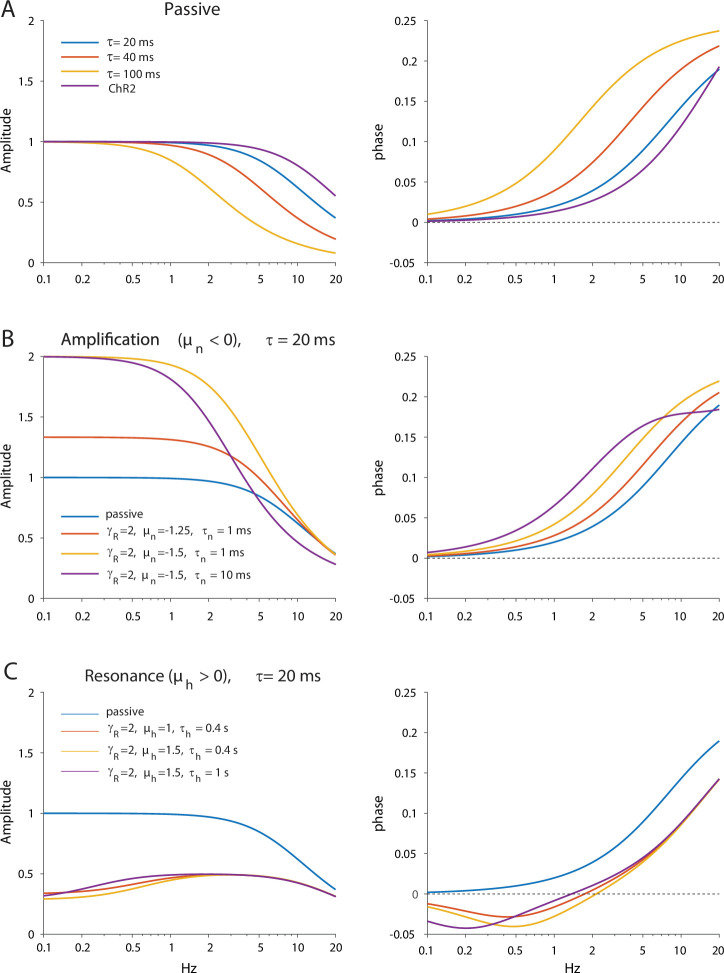

Appendix 1—figure 1.. Dependence of amplitude and phase responses on parameters of the quasi-linear model.

(A) Passive dendrites are controlled by a single parameter τ. Amplitude and phase responses for typical values of the empirical alpha function used to model the ChR2 response (τ_r=2 ms, τ_d=11.5 ms) are is shown in purple for comparison. (B) Adding amplification increases the low frequency amplitude and phase response. (C) Adding resonance reduces the low frequency amplitude response and introduces negative phases in the low frequency phase response.

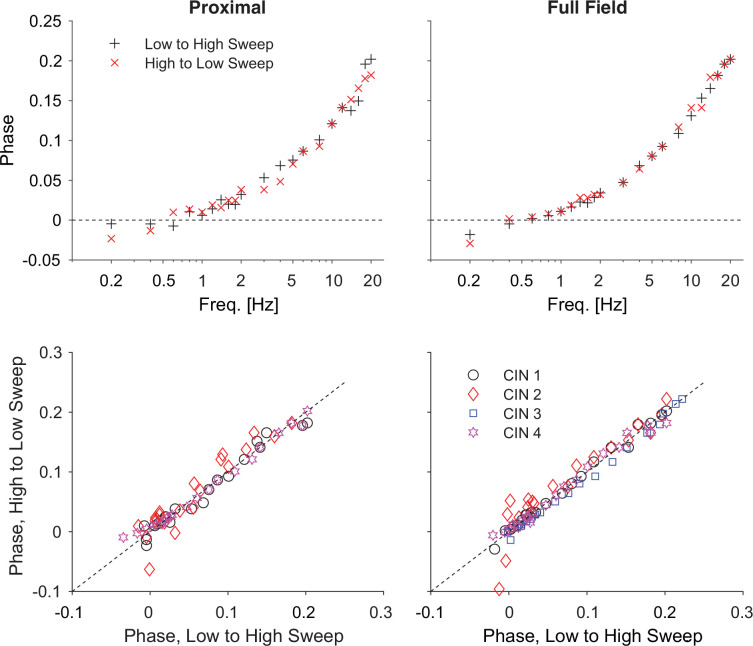

Appendix 1—figure 2.. Reversing the optogenetic frequency sweep does not affect the phase estimates.

Top: estimates of the phases as a function of frequency for one neuron for increasing (black) and decreasing (red) frequencies for proximal and full-field illumination. Bottom: Scatter plot of phases recorded for decreasing vs. increasing frequencies (for 4 cells) shows that the values cluster around the diagonal. Holding potential: –70 mV.

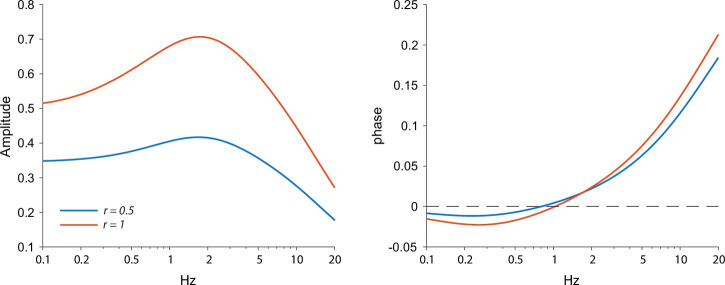

Appendix 1—figure 3.. Amplitude and phase response arising from the ChR2 kinetics and a quasi-linear dendrite.

A homogeneous distribution of quasi-linear properties results in a stronger resonance when a larger portion of the dendrite (r=1 vs. r=0.5) is illuminated, which can be seen as a sharper peak and a negative phase region with more negative phases. Other parameters: γ_R=2, τ=20 ms, μ_n = –1.5, μ_h=2, τ_n=1 ms, τ_h=0.8 s, τ_r=0.2 ms, τ_d=10 ms.
