Diagnosis and Treatment of Children with a Radiological Fat Pad Sign without Visible Elbow Fracture Vary Widely: An International Online Survey and Development of an Objective Definition

Abstract

Children often present at the emergency department with a suspected elbow fracture. Sometimes, the only radiological finding is a 'fat pad sign' (FPS) as a result of hydrops or haemarthros. This sign could either be the result of a fracture, or be due to an intra-articular haematoma without a concomitant fracture. There are no uniform treatment guidelines for this common population. The aims of this study were (1) to obtain insight into FPS definition, diagnosis, and treatment amongst international colleagues, and (2) to identify a uniform definition based on radiographic measurements with optimal cut-off points via a receiver operating characteristic (ROC) curve. An online international survey was set up to assess the diagnostic and treatment strategies, criteria, and definitions of the FPS, the probability of an occult fracture, and the presence of an anterior and/or posterior FPS on 20 radiographs. Additionally, the research team performed radiographic measurements to identify cut-off values for a positive FPS, as well as test-retest reliability and inter-rater reliability via intraclass correlation coefficients (ICC). A total of 133 (paediatric) orthopaedic surgeons completed the survey. Definitions, further diagnostics, and treatments varied considerably amongst respondents. Angle measurements of the fat pad as related to the humeral axis line showed the highest reliability (test-retest ICC, 0.95 (95% CI 0.88-0.98); inter-rater ICC, 0.95 (95% CI 0.91-0.98)). A cut-off angle of 16° was defined a positive anterior FPS (sensitivity, 1.00; specificity, 0.87; accuracy, 99%), based on the respondents' assessment of the radiographs in combination with the research team's measurements. Any visible posterior fat pad was defined as a positive posterior FPS. This study provides insight into the current diagnosis and treatment of children with a radiological fat pad sign of the elbow. A clear, objective definition of a positive anterior FPS was identified as a ≥16° angle with respect to the anterior humeral line.

Keywords: anterior fat pad sign (AFPS); children; elbow; fat pad sign (FPS); intraclass correlation coefficients (ICC); posterior fat pad sign (PFPS); receiver operating characteristic (ROC); survey.

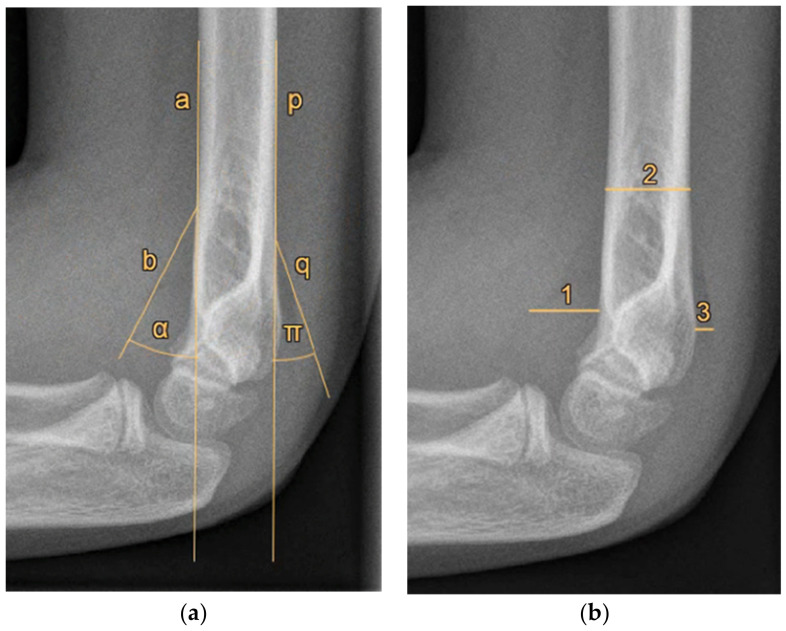

Figure 1

Radiographic measurements of the anterior and posterior fat pad signs. (a) Angle measurements. a: line along the anterior side of the humerus shaft; b: line indicating the anterior fat pad; α: angle measurement of the anterior fat pad; p: line along the posterior side of the humerus shaft; q: line indicating the posterior fat pad; π: angle measurement of the posterior fat pad. (b) Distance measurements—1: maximum perpendicular distance of the anterior fat pad to the humerus; 2: humerus diameter measured at the proximal level of the anterior fat pad; 3: maximum perpendicular distance of the posterior fat pad to the humerus. The anterior fat pad distance was indicated by 1 divided by 2; the posterior fat pad distance was indicated by 3 divided by 2.

Figure 2

Scatter plot showing the mean angle measurements plotted against the percentages of positive respondents for the presence of an AFPS, assessed on the 20 radiographs. The horizontal red line indicates the 60% level of agreement of the respondents. The vertical dotted red line shows the mean angle at which at least 60% of the respondents indicated the presence of the AFPS.

Figure 3

Receiver operating characteristic (ROC) curve for the 16-degree cut-off value of the anterior fat pad sign (α).
