CXCR4high megakaryocytes regulate host-defense immunity against bacterial pathogens

Abstract

Megakaryocytes (MKs) continuously produce platelets to support hemostasis and form a niche for hematopoietic stem cell maintenance in the bone marrow. MKs are also involved in inflammatory responses; however, the mechanism remains poorly understood. Using single-cell sequencing, we identified a CXCR4 highly expressed MK subpopulation, which exhibited both MK-specific and immune characteristics. CXCR4^high MKs interacted with myeloid cells to promote their migration and stimulate the bacterial phagocytosis of macrophages and neutrophils by producing TNFα and IL-6. CXCR4^high MKs were also capable of phagocytosis, processing, and presenting antigens to activate T cells. Furthermore, CXCR4^high MKs also egressed circulation and infiltrated into the spleen, liver, and lung upon bacterial infection. Ablation of MKs suppressed the innate immune response and T cell activation to impair the anti-bacterial effects in mice under the Listeria monocytogenes challenge. Using hematopoietic stem/progenitor cell lineage-tracing mouse lines, we show that CXCR4^high MKs were generated from infection-induced emergency megakaryopoiesis in response to bacterial infection. Overall, we identify the CXCR4^high MKs, which regulate host-defense immune response against bacterial infection.

Keywords: cell biology; hematopoietic stem cell; host-defense immunity; megakaryocytes; megakaryopoiesis; mouse.

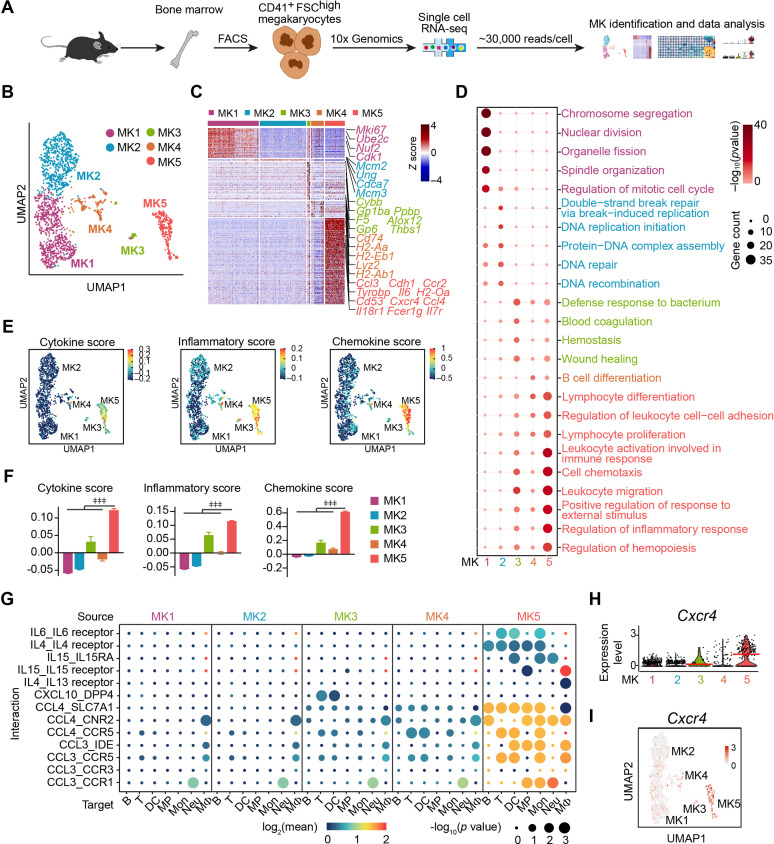

Figure 1.. Single-cell atlas identifies an immune-modulatory subpopulation of MKs.

(A) Schematic strategy for MK preparation, scRNA-seq and data analysis. (B) Clustering of 1712 bone marrow MKs. (C) Heatmap of signature gene expression in MK subpopulations (fold-change >1.5, p value <0.05) with exemplar genes listed on the right (top, color-coded by subpopulations). Columns denote cells; rows denote genes. Z score, row-scaled expression of the signature genes in each subpopulation. (D) Gene Ontology (GO) analysis of signature genes (fold-change >1.5, p value <0.05) for each MK subpopulations. GO terms selected with Benjamini–Hochberg-corrected p values <0.05 and colored by –log₁₀(p value). Bubble size indicates the enriched gene number of each term. (E–F) UMAP visualization (E) and statistical analysis (F) of cytokine score (left), inflammatory score (middle) and chemokine score (right) in MK1 to 5. (G) Dotplots of significant cytokine ligand (source) -receptor (target) interactions between MKs and immune cells discovered. The color indicates the means of the receptor-ligand pairs between two cell types and bubble size indicates p values. Mon, monocytes; MΦ, macrophages (Dong et al., 2020); DC, dendritic cells; Neu, neutrophils; MP, myeloid progenitors; T, T cells; B, B cells. (H–I) Violin plot (H) and feature plot (I) of selected signature genes of MK5. Red lines in (H) indicate the median gene expression. Repeated-measures one-way ANOVA followed by Dunnett’s test for multiple comparisons in (F), ǂǂ <0.01, ǂǂǂ p<0.001.

Figure 1—figure supplement 1.. Cell isolation, quality control and annotation of scRNA-seq data.

(A) Flow cytometry gating for isolation of MKs (CD41⁺ FSC^high) in bone marrow for scRNA-seq. (B) Quality control of scRNA-seq data. Violin plots showing the number of unique genes (gene number) before and after removing doublets, number of total unique molecular identifiers (UMI counts) and percentage of mitochondrial transcripts in single cells after removing doublets. Scatter plot showing the correlation between UMI counts and gene numbers. corr indicates Pearson correlation coefficient. (C–D) UMAP of 5368 bone marrow cells, colored by gene numbers (C) and by cluster identity indicated on the right (D). MK, megakaryocytes; Neu, neutrophils; MΦ, macrophages; MP, myeloid progenitors; DC, dendritic cells; Mon, monocytes; B, B cells; T, T cells. (E) Heatmap of row-scaled signature gene expression in each cell type (top, color-coded by subpopulations). Columns denote cells; rows denote genes. Z score, row-scaled expression of the signature genes in each subpopulation. (F) Feature plots showing selected gene expression. (G) Violin plots showing the number of unique genes (gene number) of 1712 MKs.

Figure 1—figure supplement 2.. Cell type identification by alignment with published scRNA-seq data.

(A) Radar charts showing cell similarities of our single cell dataset with the published bone marrow MK single cells (Pariser et al., 2021; Yeung et al., 2020), bone marrow immune cells and myeloid progenitor single cells (Almanzar et al., 2020; Hamey et al., 2021; Xie et al., 2020) using MetaNeighbor R package. (B) Comparison of our bone marrow scRNA-seq data with published bone marrow MK (Pariser et al., 2021; Yeung et al., 2020) and immune cell (Almanzar et al., 2020; Hamey et al., 2021; Xie et al., 2020) datasets. All cells were integrated by iMAP.py and projected on UMAP. (C) Column-scaled Euclidean distances between the centroid of each cluster. Z score, column-scaled Euclidean distance. MK, megakaryocytes; Neu, neutrophils; MΦ, macrophages; MP, myeloid progenitors; DC, dendritic cells; Mon, monocytes; B, B cells; T, T cells.

Figure 1—figure supplement 3.. Identification of MK subpopulations.

(A) Re-clustering of 1712 MKs from 5368 cells. (B) Violin plots showing MK marker gene expression (Aburima et al., 2021; Bernardes et al., 2020; Kanaji et al., 2005; Liu et al., 2021; Couldwell and Machlus, 2019; Ozaki et al., 2005; Sun et al., 2021; Yeung et al., 2020) of MK1 to 5. Red lines indicate the median gene expression. (C) Projection of our datasets on reported MK (Pariser et al., 2021; Yeung et al., 2020) and immune cell (Hamey et al., 2021; Xie et al., 2020) scRNA-seq datasets by Symphony R package. MK, megakaryocytes; Neu, neutrophils; MΦ, macrophages; MP, myeloid progenitors; DC, dendritic cells; Mon, monocytes; Bas, basophils; B, B cells; T, T cells; ABM, adult bone marrow. (D) MKs (MK1 to 5) and cell types projection based on similarities of our single-cell transcriptional profiles and published MK (Pariser et al., 2021; Yeung et al., 2020) and immune cell datasets (Hamey et al., 2021; Xie et al., 2020) by scmap R package.

Figure 1—figure supplement 4.. Enriched genes in MK1 to 4 and MK5.

(A) Volcano plot showing MK5 and MK1 to 4 enriched genes (|fold change|>1.4, p value <0.05). (B–C) Gene Ontology (GO) analysis showing MK5 enriched immune pathway genes and MK1 to 4 mainly enriched hemopoiesis and RNA processing pathway genes. (D–F) Gene set enrichment analysis (GSEA) evaluated enrichment of selected pathways in MK5 cells compared to other MK subpopulations (MK1 to 4).

Figure 1—figure supplement 5.. MK5 interacts with immune cells and express signature genes of immune MKs.

(A) Dotplots of significant cytokine ligand (source) -receptor (target) interactions between MKs and immune cells discovered using CellChat. Color indicates communication probabilities, and bubble size indicates p value of the ligand-receptor pairs between MK subpopulations (source) and immune cells (target). (B) Selected signature gene expression in MK subpopulations.

Figure 1—figure supplement 6.. Polyploidy, platelet generation ability and cell size of CXCR4^low and CXCR4^high MKs.

(A) Representative flow cytometry plots of gating strategy of CD41 and CXCR4 in the bone marrow of control mice and mice 3 days after L. monocytogenes infection. (B) Relative expression of Pf4, Vwf and Mpl in CXCR4^high and CXCR4^low MKs by RT-qPCR. (C) Representative immunofluorescent staining image showing membranous CD41 staining typical of sorted bone marrow CXCR4^high MKs. (D) Sorted CXCR4^low and CXCR4^high MKs produced proplatelets in vitro on day five post cultured under 100 ng ml^–1 TPO. White arrowheads indicate proplatelet formation. (E) Polyploidy distribution of CXCR4^low MKs and CXCR4^high MKs (right). (F) Representative immunofluorescent staining images showing CD41 and CXCR4 expression of CXCR4^low and CXCR4^high MKs in the bone marrow. CD41, green; CXCR4, red; DAPI, blue. (G) Comparison of cell size between CXCR4^low MKs and CXCR4^high MKs on day three post cultured under 100 ng ml^–1 Thrombopoietin (TPO). (H) Median fluorescence intensity of CXCR4 in small and large sizes of MKs by flow cytometry. Scale bars, 20µm. Data represent mean ± s.e.m in (B, D, E, H) or mean ±first and third quartiles in (G). Two-sample KS test was performed to assess statistical significance in (G). Two-tailed Student’s t-test was performed to assess statistical significance in (B, D, E, H). * p<0.05, ** p<0.01, *** p<0.001.

Figure 2.. CXCR4^high MKs enhance myeloid cell mobility and bacteria phagocytosis.

(A) Distribution of myeloid cells to CXCR4^low or CXCR4^high MKs 3 days after L. monocytogenes infection. Representative images of MKs (blue), CXCR4 (red), and myeloid cells (green) in mouse bone marrow. Yellow arrows indicate CXCR4^high MKs and white arrowheads indicate CXCR4^low MKs. (B–C) Distance (B) and mean distance (C) of actual or randomly positioned myeloid cells to the closest CXCR4^low and CXR4^high MKs 3 days after L. monocytogenes infection. (D) Numbers of transmigrated myeloid cells normalized to Ctrl (without MKs in the lower chambers) as indicated by transwell assays. Mon, monocytes; MΦ, macrophages; DC, dendritic cells; Neu, neutrophils. (E–F) Representative images (E) and quantification (F) of neutrophil phagocytosis capacity with or without MK co-culture as indicated. CD11b, red; E. coli, green; DAPI, blue. Ctrl, neutrophil without MK co-culture. (G–H) Representative images (G) and quantification (H) of macrophage phagocytosis capacity with or without MK co-culture as indicated. F4/80, red; E. coli, green; DAPI, blue. Ctrl, macrophage without MK co-culture. (I) Spearman correlation analysis between expression profiles of Cxcr4 and feature genes in MK subpopulations. (J) Quantification of TNFα⁺ and IL-6⁺ cells in CXCR4^low MKs and CXCR4^high MKs from control mice or mice 3 days after L. monocytogenes infection. (K–L) Quantification of neutrophil (K) and macrophage (L) phagocytosis with or without CXCR4^high MK co-culture in the absence or presence of anti-TNFα or anti-IL-6 neutralizing antibodies. (M–N) Quantification of the phagocytosis abilities by neutrophils (M) and macrophages (N) with or without CXCR4^low MK or CXCR4^high MK co-culture in the absence or presence of anti-TNFα or anti-IL-6 neutralizing antibodies by flow cytometry. Ctrl, neutrophils (M) or macrophages (N) without MKs co-culture. Scale bars, 20 μm (A, E, G). Data represent mean ± s.e.m (D) and boxplots show medians, first and third quartiles (F, H, K–L). Repeated-measures one-way ANOVA followed by Dunnett’s test for multiple comparisons in (D, M, N), ǂ p<0.05, ǂǂ p<0.01, n.s., not significant. A two-sample KS test was performed to assess statistically significant (C, F, H, K, L), n.s., not significant. Paired Student’s t-test was performed to assess statistical significance (J), # p<0.05, ## p<0.01, n.s., not significant.

Figure 2—figure supplement 1.. L. monocytogenes promote myelopoiesis and the association of myeloid cells and the CXCR4^high MK-blood vessel intersection.

(A–B) Representative immunofluorescent staining image (A) and statistical analysis (B) showing association of MKs (blue) and myeloid cells (green) in the bone marrow of control mice and mice 3 days after L. monocytogenes infection (n=30 control and infected MKs). CD41, blue; CD11b, green. (C–D) Distance (C) and mean distance (D) of actual or randomly positioned myeloid cells to the closest CXCR4^low Mks and CXR4^high MKs from mice without infection. (E–F) Representative images of MKs (blue), CXCR4 (red), vascular endothelial cells (green) and myeloid cells (white) (E), and statistical analysis (F) in bone marrow showing the distribution of myeloid cells to CXCR4^low or CXCR4^high MKs and vascular cells 3 days after L. monocytogenes infection. CD41, blue; CXCR4, red; EMCN, green; CD11b, white. Yellow arrows indicate CXCR4^high MKs and white arrowheads indicate CXCR4^low MKs (left) and two-dimensional probability distribution of distances from myeloid cells to CXCR4^low or CXCR4^high MKs and vascular cells (n=104 CD11b⁺ cells; p=0.04 by 2D KS test). Scale bars, 20µm. Boxplots show medians, first and third quartiles in (B). Two-sample KS test was performed to assess statistical significance in (B, D). Two-dimensional-two-sample KS test was performed to assess statistical significance in (F).

Figure 2—figure supplement 2.. CXCR4^high MKs promote myeloid cell phagocytosis and produce TNFα and IL-6.

(A–B) Quantification of phagocytosis abilities in neutrophils (A) and macrophages (B) without or with CXCR4^low MKs or CXCR4^high MKs as indicated. (C–E) TNFα and IL-6 protein levels in CXCR4^low and CXCR4^high MKs were shown by immunofluorescent staining (C–D) using sorted MKs, compared to their levels in sorted macrophages upon L. monocytogenes infection (E).Scale bars, 5μm. Data represent mean ± s.e.m in (A, B) and boxplots show medians, first and third quartiles in (C–E). Repeated-measures one-way ANOVA followed by Dunnett’s test for multiple comparisons in (A, B), ǂ p<0.05, ǂǂ p<0.01. Two-sample KS test was performed to assess statistical significance in (C–E).

Figure 3.. CXCR4^high MKs stimulate host-defense immunity against bacterial pathogens.

(A) Schema for diphtheria toxin (DT) and L. monocytogenes administration used for the experiments shown in (B–E). (B) Representative images of MKs (blue, indicated by arrows) and vascular endothelial cells (green) in the bone marrow of mice after four daily DT treatments. (C) Bacterial burdens in the liver and spleen of Pf4^Cre; Rosa26^fs-iDTR mice 3 days after L. monocytogenes (L.m.) infection with four-time DT injections. (D–E) Myeloid cells in the liver (D) and spleen (E) of Pf4^Cre; Rosa26^fs-iDTR mice 3 days after L. monocytogenes (L.m.) infection with four-time DT injections. (F) Quantification of bacterial phagocytosis capacities of neutrophils, CXCR4^low MKs and CXCR4^high MKs. (G) Quantification of MHCI-OVA levels on CXCR4^low MKs, CXCR4^high MKs and bone-marrow-derived dendritic cells (DCs) upon a pulse of 24 hr with or without OVA. (H) Quantification of activated OT-I CD8⁺ T cells after co-culture with bone-marrow-derived DCs, OVA-pulsed bone-marrow-derived DCs, CXCR4^low MKs, or CXCR4^high MKs. (I) Schema for antigen-specific T cell activation assay shown in (J). (J) Splenocytes from control or MK ablated mice 7 days after L. monocytogenes-OVA_257-264 infection and seven DT injections were stimulated with OVA peptide in vitro for 4 hr, and antigen-specific activated T cells were quantified (n=4 mice). L.m.-OVA, L. monocytogenes-OVA_257-264. (K) Schema for DT, L. monocytogenes administration, MK transfusing and bacterial burden determination shown in (L). (L) Bacterial burdens in the liver and spleen of Pf4^Cre; Rosa26^fs-iDTR mice without or with CXCR4^low or CXCR4^high MK transfused. Scale bars, 20μm. Data represent mean ± s.e.m. Repeated-measures one-way ANOVA followed by Dunnett’s test for multiple comparisons in (F), ǂǂǂ p<0.001. Paired Student’s t-test was performed to assess statistical significance (G), # p<0.05, n.s., not significant. Two-tailed Student’s t-test was performed to assess statistical significance except (F), * p<0.05, ** p<0.01, *** p<0.001, n.s., not significant.

Figure 3—figure supplement 1.. MK ablation influenced HSC and myeloid cell numbers.

(A) Schema for diphtheria toxin (DT) and L. monocytogenes administration used for the experiments shown in (B–D). (B) Number of bone marrow hematopoietic stem and progenitor cells in Pf4^Cre+; Rosa26^fs-iDTR+/- mice compared to Pf4^Cre-; Rosa26^fs-iDTR+/- mice after L. monocytogenes infection and DT injection. (C–D) Gating strategies (C) and numbers (D) of myeloid cells in the bone marrow of Pf4^Cre; Rosa26^fs-iDTR+/- mice after L. monocytogenes infection and DT injection. (D–E) Gating strategies of myeloid cells in the liver (D) and spleen (E) of Pf4^Cre; Rosa26^fs-iDTR+/- mice at 3 days after L. monocytogenes infection. Neu, neutrophil; MF, macrophage; Mono, monocyte; DC, dendritic cell. Two-tailed Student’s t-test was performed to assess statistical significance. * p<0.05, ** p<0.01, *** p<0.001.

Figure 3—figure supplement 2.. CXCR4^high MKs induced B3Z T cell activation.

The LacZ activity in B3Z T cells with or without co-culture as indicated. Ctrl indicates B3Z cells without MKs co-culture; bone-marrow-derived DCs, CXCR4^low MKs and CXCR4^high MKs were pulsed with OVA for 24 hr. Two-tailed Student’s t-test was performed to assess statistical significance, * p<0.05.

Figure 4.. Bacterial infection stimulates the migration of CXCR4^high MKs.

(A) Representative image of CD41 (blue), CD150 (red), EMCN (green), and lineage cells (white) in bone marrow from control mice or mice at 3 days after L. monocytogenes infection. d_HSC and d_EC indicate the distance between the MK (blue, marked with an asterisk) and the closest HSC (red), endothelial cell (green), respectively. Yellow boxes indicate the locations of the magnified images. Arrowheads indicate HSCs. EMCN, endomucin; EC, endothelial cell. (B) Comparison of the distance between MKs to Ecs (n=119 control and 103 infected MKs) in the bone marrow of control mice or mice at 3 days after L. monocytogenes infection. (C) Comparison of the distance between CXCR4^low or CXCR4^high MKs and endothelial cells (Ecs) in the bone marrow of mice 3 days after L. monocytogenes infection (n=68 CXCR4^low and 78 CXCR4^high MKs). CD41 (blue), CXCR4 (red), and EMCN (green). Yellow arrows indicate CXCR4^high MKs, while white arrowheads indicate CXCR4^low MKs. (D) Representative immunofluorescent staining images (left) and quantification (right) of CXCR4 (red) labeled MKs (blue) egressed into sinusoids (green) upon infection (n=46 CXCR4^low MKs and 69 CXCR4^high MKs in 4 biological replicates). Yellow arrows indicate CXCR4^high MKs. (E) Comparison of the distance between HSCs to MKs (n=96 control and 127 infected HSCs, p=0.21 by two-sample KS test) in the bone marrow of control mice or mice at 3 days after L. monocytogenes infection. (F) Visualization of MK migration (red, arrowhead) into sinusoids (green) by live imaging in the bone marrow of Pf4^Cre+; Rosa26^{fs-tdTomato+/-} mice 24 hr after L. monocytogenes infection (Movie S1). ‘S’ indicates sinusoid and dashed lines demarcate the border of sinusoids. (G) Quantification of CXCR4^high MKs in bone marrow, peripheral blood, liver, spleen, and lung of control mice and mice 3 days after L. monocytogenes infection. (H) Quantification of CXCR4 levels on CXCR4^low MKs treated with IFN-γ, LPS or L. monocytogenes for 4 hr compared to CXCR4^high MKs. (I) Quantification of tdTomato⁺ CXCR4^high MKs in the liver and spleen from control mice or mice 3 days after L. monocytogenes infection by flow cytometry. (J) Schema of mtdTomato⁺ bone marrow (from R26R^mTmG mice) cell perfusion in control and L. monocytogenes infected recipients. (K) The percentage of CXCR4^high mtdTomato⁺ MKs and CXCR4^low mtdTomato⁺ MKs in bone marrow, liver, and spleen of control or infected recipients were analyzed 2 days after mtdTomato⁺ bone marrow cells were perfused. (L) Radar chart showing transcriptomic similarities of bone marrow MK subpopulations with reported BM and lung MK datasets (Pariser et al., 2021; Yeung et al., 2020). (M) Schema for transfer experiments using tdTomato⁺ MKs from Pf4^Cre+; Rosa26^{fs-tdTomato+/-} mice into control recipients or recipients 1 day following L. monocytogenes infection. (N–O) Representative images (N) and quantification by flow cytometry (O) of tdTomato⁺ MKs in the lung of control or infected recipients 2 days after cell perfusion (n=3 mice). Arrows indicate tdTomato⁺ MKs in the lung. Scale bars without indicated, 20 μm. Data represent mean ± s.e.m. A two-sample KS test was performed to assess statistical significance in (E). Repeated-measures one-way ANOVA followed by Dunnett’s test for multiple comparisons in (H), ǂǂ p<0.01, ǂǂǂ p<0.001. Two-tailed Student’s t-test was performed to assess statistical significance except (E, H), * p<0.05, ** p<0.01, *** p<0.001, n.s., not significant.

Figure 4—figure supplement 1.. The effects of association of MKs and blood vessels, HSC activation, and MK numbers in bone marrow upon bacterial infection.

(A) Bone marrow MKs (blue) and sinusoids (green) in control mice and mice 3 days after L. monocytogenes infection. CD41, blue; EMCN, green. Yellow arrows indicate MKs egressed into sinusoids. ‘S’ indicates sinusoid and dashed lines demarcate the border of sinusoids. (B) HSC and progenitor cell number in the bone marrow of control mice and mice 3 days after L. monocytogenes infection. LT, long term; ST, short term; MPP, multipotential progenitor. (C–D) MK numbers (C) and CXCR4^low MK frequency (D) in the bone marrow of control mice and mice 3 days after L. monocytogenes infection (n=8 mice). (E–F) Frequency of BrdU⁺ (E) and Annexin V⁺ (F) cells in CXCR4^high MKs from bone marrow of control mice or mice 3 days after L. monocytogenes infection (n=5 mice). Scale bars, 20µm. Data represent mean ± s.e.m. Two-tailed Student’s t-test was performed to assess statistical significance. * p<0.05, n.s., not significant.

Figure 4—figure supplement 2.. scRNA-seq of MKs from mice upon bacterial infection.

(A) Schematic depicting the strategy of scRNA-seq using bone marrow MKs from mice 3 days after L. monocytogenes infection. (B) Violin plots showing the number of unique genes (gene number) before and after removing doublets, number of total unique molecular identifiers (UMI counts) and percentage of mitochondrial transcripts in single cells after removing doublets. Scatter plot showing the correlation between UMI counts and gene numbers. corr indicates Pearson correlation coefficient. (C) UMAP of the combined 5368 cells from control bone marrow and 4276 cells from L. monocytogenes infection bone marrow, colored by cell types. Neu, neutrophil; MP, myeloid progenitor; Mon, monocytes; B, B cells; T, T cells. (D) UMAP of the combined 1712 control MKs and 1560 infection MKs in the bone marrow, colored by clusters. (E) Fraction of each MK subpopulation from control MKs or L. monocytogenes infection MKs. (F) Violin plot showing Cxcr4 expression in each MK subpopulation of control and infection MKs.

Figure 4—figure supplement 3.. CXCL12 expression upon bacterial infection.

(A–H) Relative expression of Cxcl12 (A–D) and frequency of CXCL12^DsRed cells (E–H) in the bone marrow (A), lung (B), liver (C), and spleen (D) from control mice and mice 3 days after L. monocytogenes infection by RT-qPCR (A–D) and flow cytometry (E–H), respectively. Two-tailed Student’s t-test was performed to assess statistical significance. * p<0.05, ** p<0.01, *** p<0.001.

Figure 4—figure supplement 4.. Cell cycle and apoptosis of CXCR4^high MKs, and CXCR4^low MK numbers in different organs upon bacterial infection.

(A–B) Fraction of BrdU⁺ and Annexin V⁺ MKs in CXCR4^high MKs in the liver (A) and spleen (B) from control mice or mice 3 days after L. monocytogenes infection. (C) Quantification of CXCR4^low MKs in peripheral blood, liver, spleen, and lung of control mice and mice at 3 days after L. monocytogenes infection. (D) Quantification of CXCR4 levels on CXCR4^high MKs and CXCR4^low MKs treated with LPS or IFN-γ for 18 or 24 hr. (E–F) Representative images and quantification of mGFP⁺ MKs (green) in the liver (E) and spleen (F) from control mice or mice 3 days after L. monocytogenes infection (n=4 and 7 mice, respectively). (G–H) Gating strategies for CXCR4^high MKs in the liver (G) and spleen (H). (I) Quantification of tdTomato⁺CXCR4^low MKs in the liver and spleen from control mice or mice 3 days after L. monocytogenes infection by flow cytometry. Scale bars, 20μm. Data represent mean ± s.e.m. Two-tailed Student’s t-test was performed to assess statistical significance except (D). * p<0.05, ** p<0.01, *** p<0.001, n.s., not significant. Repeated-measures one-way ANOVA followed by Dunnett’s test for multiple comparisons in (D), ǂǂ p<0.01, ǂǂǂ p<0.01.

Figure 4—figure supplement 5.. Comparison of immune gene expression in MK5 and lung MKs from control mice or mice upon bacterial infection.

(A) Gene set variation analysis (GSVA) of each MK subpopulation under control or L. monocytogenes infection, colored by row-scaled GSVA enrichment scores. (B) Antigen processing and presentation score of control MK5, infection MK5, and bone marrow and lung MKs from Yeung et al., 2020. (C) Heatmap showing the row-scaled antigen processing and presentation gene expression of control and infection MK5 cells, comparing with bone marrow MK and lung MK from Yeung et al., 2020. Data represent mean ±first and third quartiles in (B). Two-sample KS test was performed to assess statistical significance in (B).

Figure 4—figure supplement 6.. Intravascular and extravascular tdTomato⁺ MKs in the lung after MK perfusion.

(A) Schema for transfer experiments using tdTomato⁺ MKs from Pf4^Cre+; Rosa26^{fs-tdTomato+/-} mice into recipients 1 day following L. monocytogenes infection. (B) Transfused MKs (red) and sinusoids (green) in the lung of mice after L. monocytogenes infection as indicated in Figure 4M. DAPI, blue; EMCN, green; tdTomato, red. (C) Quantification of transfused intravascular and extravascular MKs in the lung. Scale bar, 20μm. Data represent mean ± s.e.m. Two-tailed Student’s t-test was performed to assess statistical significance. *** p<0.001.

Figure 5.. Acute inflammation induces emergency megakaryopoiesis of CXCR4^high MKs.

(A–B) Representative images (A) and statistical analysis (B) of CD41 (green) and DAPI (blue) in bone marrow from control mice or mice 3 days after L. monocytogenes infection. Arrows indicate ruptured MKs, yellow boxes indicate the locations of the magnified images. (C) Platelets in peripheral blood in control mice or mice after L. monocytogenes infection on indicated days. (D) The dynamics percentage of CXCR4^high MKs (left) or CXCR4^low MKs (right) in the bone marrow of L. monocytogenes-challenged mice within 72 hr of infection. (E) Schema for HSC lineage tracing upon L. monocytogenes infection using Scl^CreER+; Rosa26^{fs-tdTomato+/-} mice. (F–G) Cell numbers of tdTomato⁺ CXCR4^low MKs and tdTomato⁺ CXCR4^high MKs (F), and tdTomato⁺ progenitors (G) in the bone marrow of control and L. monocytogenes infected Scl^CreER+; Rosa26^{fs-tdTomato+/-} recipients 18 hr after L. monocytogenes infection and tamoxifen administration. CMP, common myeloid progenitor; GMP, granulocyte-monocyte progenitor; MEP, megakaryocyte-erythroid progenitor. Scale bars, 20 μm. Data represent mean ± s.e.m. Two-tailed Student’s t-test was performed to assess statistical significance, * p<0.05, ** p<0.01, n.s., not significant.
