Experimental platform for the functional investigation of membrane proteins in giant unilamellar vesicles

Abstract

Giant unilamellar vesicles (GUVs) are micrometer-sized model membrane systems that can be viewed directly under the microscope. They serve as scaffolds for the bottom-up creation of synthetic cells, targeted drug delivery and have been widely used to study membrane related phenomena in vitro. GUVs are also of interest for the functional investigation of membrane proteins that carry out many key cellular functions. A major hurdle to a wider application of GUVs in this field is the diversity of existing protocols that are optimized for individual proteins. Here, we compare PVA assisted and electroformation techniques for GUV formation under physiologically relevant conditions, and analyze the effect of immobilization on vesicle structure and membrane tightness towards small substrates and protons. There, differences in terms of yield, size, and leakage of GUVs produced by PVA assisted swelling and electroformation were found, dependent on salt and buffer composition. Using fusion of oppositely charged membranes to reconstitute a model membrane protein, we find that empty vesicles and proteoliposomes show similar fusion behavior, which allows for a rapid estimation of protein incorporation using fluorescent lipids.

Fig. 1. Formation of spherical adhesion cap at low and high streptavidin density. PVA and Pt wire GUVs in the presence and absence of 100 mM NaCl were immobilized at different streptavidin densities and confocal Z-stacks were recorded. Side-views of representative GUVs from each condition are shown. Spherical caps are observed for all conditions at high streptavidin densities while low densities show no or few caps in the absence of NaCl. The scale bar is 10 μm.

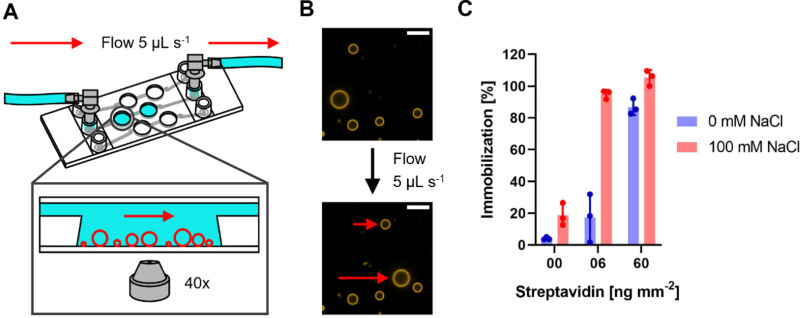

Fig. 2. Immobilization assay using channel slides and PVA GUVs. (A) Schematic representation of the channel slide setup with a blow-up depicting the immobilized GUVs (red circles) in the well of the channel. (B) Example of immobilized GUVs under flow. Top image depicts GUVs before and bottom image during application of flow. Non-immobilized GUVs are indicated by the red arrows. The scale bar is 10 μm. (C) Percentage of immobilized PVA GUVs in the presence or absence of 100 mM NaCl at different streptavidin densities assessed by comparing the number of immobilized GUVs and the number of GUVs before application of flow. Data from three independent experiments are shown. 40–120 GUVs were counted for analysis. The height of the bar indicates the average percentage of immobilization with individual values from the experiments shown as dots. Error bars indicate the standard deviation.

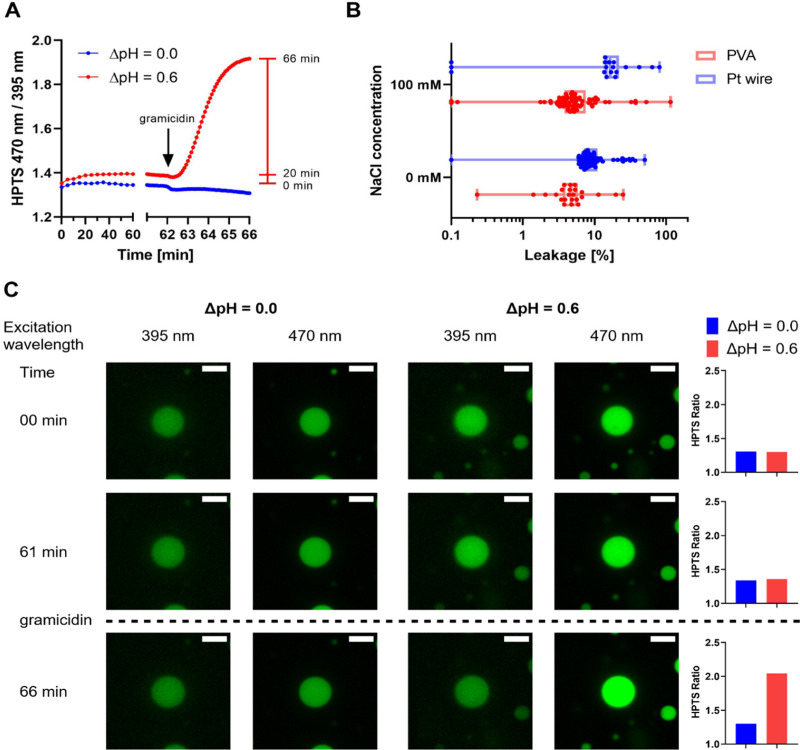

Fig. 3. Proton leakage of immobilized PVA and Pt wire GUVs in the presence or absence of 100 mM NaCl. Analysis was limited to GUVs with diameters of 5–20 μm in the focal plane. Data are taken from a single time series for each condition. (A) Average HPTS ratio of PVA GUVs with 100 mM NaCl subjected to a pH gradient of 0.0 and 0.6 over time (pH inside = 7.4, pH outside = 8.0). After 62 min, gramicidin was added to equilibrate the inner and outer pH, leading to an efflux of protons and an increase in HPTS ratio if a pH gradient is applied while no change is observed without pH gradient. The red bar indicates the time points used to assess the percentage of leakage. (B) Box plot showing the percentage of leakage of PVA (red) and Pt wire GUVs (blue) with individual GUVs indicated as dots. Proton leakage was calculated by dividing the increase of the HPTS ratio after 20 min by the total increase from 0 min to 66 min (after addition of gramicidin). 20–70 GUVs per field of view were considered for analysis. (C) Confocal microscopy images of an exemplary PVA GUV with 100 mM NaCl from the measurement with or without a pH gradient shown in (A). The two HPTS channels (green) are shown at different time points during the experiment. GUVs are shown at the start (00 min), after 1 h incubation before (61 min) and after (66 min) the addition of gramicidin. On the right, the HTPS ratio of the GUVs depicted on the left were calculated. The scale bar is 10 μm. All images were processed identically.

Fig. 4. Charge mediated fusion of positively charged SUVs with negatively charged GUVs. Fusion was performed in an 8 well chambered slide with addition of SUVs to immobilized GUVs. Only GUVs with diameters of 5–20 μm in the focal plane were analyzed. (A) Fusion of GUVs with empty SUVs (final concentration 10 μg mL⁻¹) followed in real time. SUVs were added to the well after 30 s after which an increase of Liss Rhod PE signal in the GUV membrane was observed. Traces represent the mean (solid line) and standard deviation (transparent area above and below the trace) of the average intensity increase of 10–50 GUVs from 4 experiments. (B) Fusion of PVA GUVs at 0 mM NaCl with empty SUVs and proteo-SUVs (final concentration 40 μg mL⁻¹) containing DY-647P1-labeled cytochrome bo₃ ubiquinol oxidase. Empty and proteo-SUVs were mixed at different ratios with proteo-SUV proportions of 3/0, 2/1, 1/2 and 0/3 v/v. The DY-647P1 intensity is compared to the Liss Rhod PE intensity 150 s after addition of SUVs. A similar distribution of Liss Rhod PE intensities is observed in all fusion reactions as both empty and proteo-SUVs contain Liss Rhod PE. The DY-647P1 shows a linear dependency to the Liss Rhod signal with a decreasing slope as the proportion of proteo-SUVs decreases. Values of individual GUVs from one experiment are shown (30–50 GUVs) as dots and the linear regression is represented as a dotted line. (C) Confocal microscopy images of representative GUVs from fusion with different proteo-SUV proportions shown in (B). For each GUV, the Liss Rhod PE and DY-647P1 channel are depicted. The scale bar is 10 μm. All images from each channel were processed identically.
