Graves' disease and papillary thyroid carcinoma: case report and literature review of a single academic center

Abstract

Background: Graves' disease (GD) and papillary thyroid cancer (PTC) can be concomitant. The existence of a link between these entities has long been investigated, but a clear correlation hasn't been established. We report a case of GD resistant to medical treatment in which surgery revealed unsuspected PTC and we aim to study the prevalence of PTC in Graves' disease, its clinical characteristics and review of the literature.

Case presentation: Report of a 32 yo man who presented with weight loss and was found to be biochemically hyperthyroid. Antibodies were positive. Incremental doses of methimazole provided no improvement in thyroid tests. Hypervascularity and a spongiform nodule were noted on ultrasound. Thyroid uptake and scan showed 70.2% uptake. Thyroidectomy was performed due to inadequate therapeutic response. Pathology revealed PTC with extrathyroidal extension and positive lymph nodes. A retrospective review (2000-2021) and literature review of PTC in GD was performed. Clinical data were reviewed. Statistical analysis was calculated to identify correlations. 243 GD patients had total thyroidectomy at an academic center, 50 (20%) had PTC, 14% were microcarcinomas. 76% of cases were less than 55yo, 82% female, 78% stage 1, PTC diagnosis was incidental in 48%, hyperthyroidism was difficult to treat in 10% and only 2% had recurrence of PTC. There was no correlation between demographic or clinical data.

Conclusions: Evidence is controversial with some studies showing GD does not affect PTC prognosis. PTC may not be well recognized in GD, pre-operative assessment should consider risk of cancer.

Keywords: Autoimmunity; Case report; Graves’ disease; Thyroid cancer; Thyroidectomy.

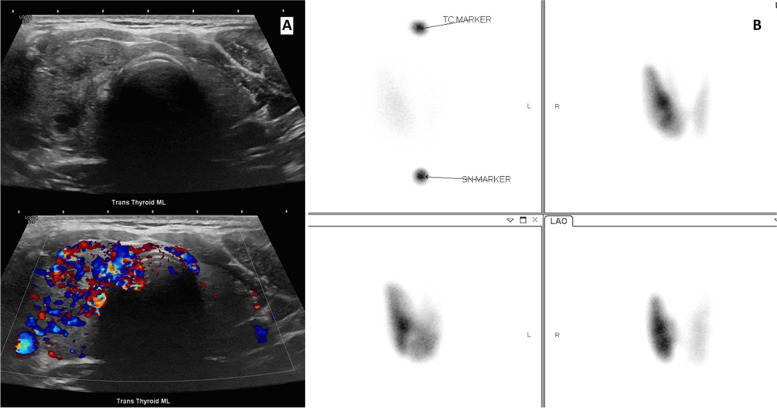

Fig. 1

A Thyroid Ultrasound performed at the time of diagnosis. B Thyroid uptake and scan
