Biomechanical effect of Coflex and X-STOP spacers on the lumbar spine: a finite element analysis

Abstract

Objective: To explore the biomechanical differences between Coflex and X-STOP devices by finite element analysis.

Methods: Based on the normal lumbar CT images from a healthy adult volunteer, four finite element models including the healthy lumbar segment model, the mild degenerated lumbar segment model, a Coflex fixed lumbar segment model and X-STOP fixed lumbar segment model were constructed. A simulation analysis under the conditions of flexion, extension, lateral bending, and rotation was performed to compare range of motion (ROM), intradiscal pressure, the facet joint force, the maximum Von Mises stress and the peak facet contact forces, between Coflex and X-STOP devices.

Results: Compared to the mild degenerated lumbar segment model at surgical level L4-L5, Coflex and X-STOP could reduce ROM in extension by 98.34% and 95.86%, respectively, decrease peak stress of intervertebral discs in extension by 59.4% and 66.17%, respectively, and release peak force of facet joint in extension by 97.09% and 95.42%, respectively. Both devices had no significant impact on adjacent levels. The maximum Von Mises stress in Coflex device was 637.56 Mpa in flexion, 528.86 Mpa in extension, while the maximum Von Mises stress in X-STOP device was 476.65 Mpa at extension position. The peak facet contact forces of Coflex and X-STOP devices appeared in extension and were 19.76 Mpa and 49.28 Mpa, respectively.

Conclusions: Coflex and X-STOP devices can effectively decrease the ROM and intradiscal pressure in extension, without affecting the adjacent levels.

Keywords: Coflex; X-STOP; biomechanical properties; finite element analysis; lumbar vertebrae.

Figure 1

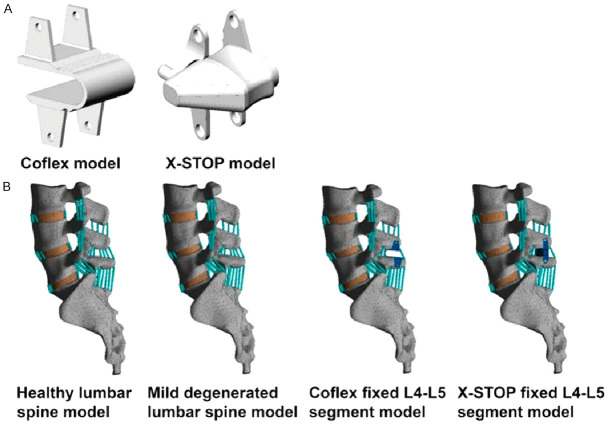

3-D geometry models with interspinous spacers. A: Coflex and X-STOP devices. B: Different kinds of lumbar spine models.

Figure 2

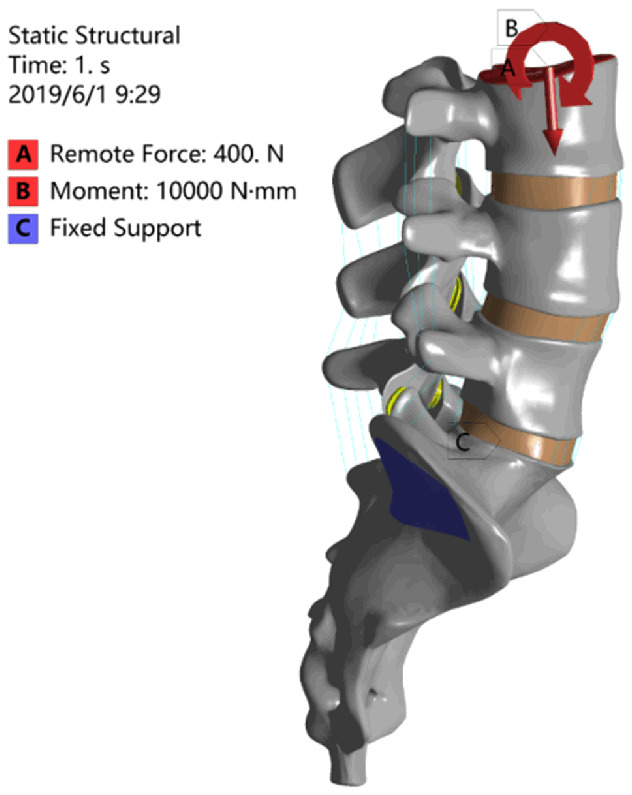

Schematic of flexion loading.
