Dual-layer spectral CT fusion imaging for lung biopsies: more accurate targets, diagnostic samplings, and biomarker information?

Abstract

The increasingly widespread use of computed tomography (CT) has increased the number of detected lung lesions, which are then subjected to needle biopsy to obtain histopathological diagnosis. Obtaining high-quality biopsy specimens is fundamental for diagnosis and biomolecular characterisation that guide therapy decision-making. In order to obtain samples with high diagnostic potential, fusion imaging techniques, such as fusion between positron emission tomography and CT, have been introduced to target the biopsy where there more viable neoplastic cells can be sampled. Nowadays, dual-layer spectral CT represents a novel technology enabling an increased tissue characterisation. In particular, Z-effective images, i.e., colour-coded images based on the effective atomic number of tissue components, provide a higher level of discrimination than usual imaged based on x-ray attenuation in Hounsfield units and offer the potential of a better tissue characterisation. Our hypothesis is based on the future use of data provided by spectral CT, in particular by Z-effective images, as a guide for appropriate biopsy sampling for histopathological and biomolecular characterisation in the era of patient tailored-therapy.

Keywords: Biomarkers; Biopsy (needle); Decision making; Lung neoplasms; Tomography (x-ray computed).

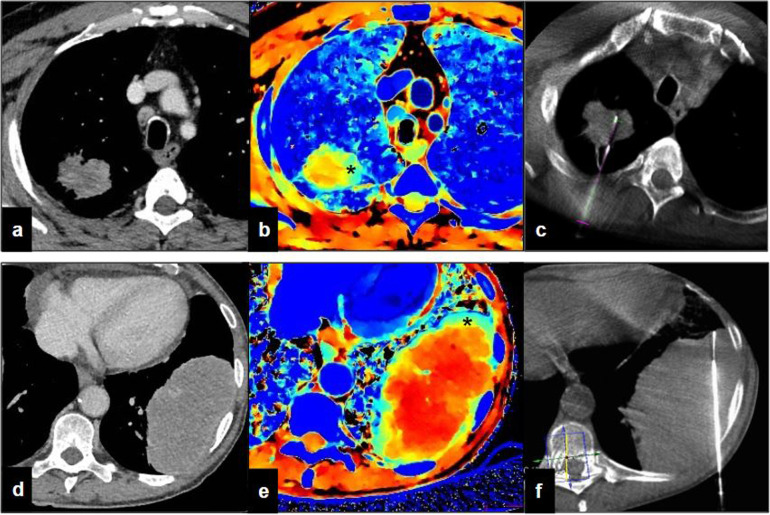

Fig. 1

Percutaneous lung biopsy. a Axial routine diagnostic image in a patient with solid lung lesion at the upper right lobe. b Effective atomic number-based reconstruction at the same level: the lesion is characterised by inhomogeneous intralesional atomic number with a central area showing a reduced atomic number (yellow–red) and a medial eccentric area showing a higher atomic number (light blue, asterisk). c Intraprocedural cone beam computed tomography (CBCT) shows that the needle has been located in the area with the highest atomic number. d Axial routine diagnostic image in a patient with solid lung lesion at the lower left lobe. e Effective atomic number-based reconstruction at the same level: the lesion is characterised by inhomogeneous intralesional atomic number with a central area showing a reduced atomic number (yellow–red) and an external circular area showing a higher atomic number (light blue, asterisk). f Intraprocedural CBCT shows that the needle has been located in the area with the highest atomic number
