. 2022 Aug 14;22(16):6068.
doi: 10.3390/s22166068.

BENS-B5G: Blockchain-Enabled Network Slicing in 5G and Beyond-5G (B5G) Networks

Saurabh Singh  1 , C Rajesh Babu  2 , Kadiyala Ramana  3 , In-Ho Ra  4 , Byungun Yoon  1
Affiliations

BENS-B5G: Blockchain-Enabled Network Slicing in 5G and Beyond-5G (B5G) Networks

Saurabh Singh et al. Sensors (Basel). .

Abstract

Fifth-generation (5G) technology is anticipated to allow a slew of novel applications across a variety of industries. The wireless communication of the 5G and Beyond-5G (B5G) networks will accommodate a wide variety of services and user expectations, including intense end-user connectivity, sub-1 ms delay, and a transmission rate of 100 Gbps. Network slicing is envisioned as an appropriate technique that can meet these disparate requirements. The intrinsic qualities of a blockchain, which has lately acquired prominence, mean that it is critical for the 5G network and B5G networks. In particular, the incorporation of blockchain technology into B5G enables the network to effectively monitor and control resource utilization and sharing. Using blockchain technology, a network-slicing architecture referred to as the Blockchain Consensus Framework is introduced that allows resource providers to dynamically contract resources, especially the radio access network (RAN) schedule, to guarantee that their end-to-end services are effortlessly executed. The core of our methodology is comprehensive service procurement, which offers the fine-grained adaptive allocation of resources through a blockchain-based consensus mechanism. Our objective is to have Primary User-Secondary User (PU-SU) interactions with a variety of services, while minimizing the operation and maintenance costs of the 5G service providers. A Blockchain-Enabled Network Slicing Model (BENS), which is a learning-based algorithm, is incorporated to handle the spectrum resource allocation in a sophisticate manner. The performance and inferences of the proposed work are analyzed in detail.

Keywords: 5G communications; 5G-CORE network functions; beyond-5G; blockchain; network slicing; radio access network.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
Network slicing scenario.
Figure 2
Figure 2
Dynamic spectrum-sharing environment.
Figure 3
Figure 3
5G−CORE specification for dynamic spectrum sharing.
Figure 4
Figure 4
BENS-B5G model.
Figure 5
Figure 5
Network slice mapping structure for 5G.
Figure 6
Figure 6
Variation in user traffic with respect to channel reservation time (slice request).
Figure 7
Figure 7
PU Channel Switching.
Figure 8

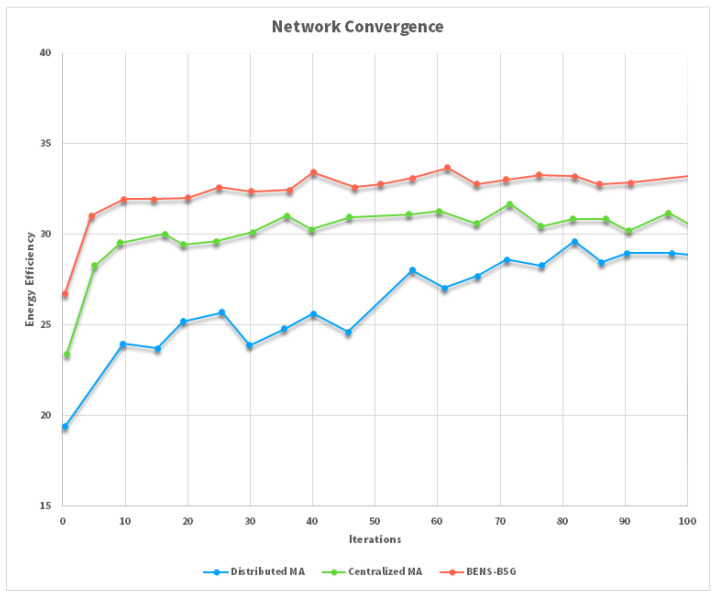

Figure 8
Convergence comparison.
See this image and copyright information in PMC

References

    1. An N., Kim Y., Park J., Kwon D.H., Lim H. Slice management for quality of service differentiation in wireless network slicing. Sensors. 2019;19:2745. doi: 10.3390/s19122745. - DOI - PMC - PubMed
    1. Theodorou V., Lekidis A., Bozios T., Meth K., Fernandez-Fernandez A., Tavlor J., Diogo P., Martins P., Behravesh R. Blockchain-based zero touch service assurance in cross-domain network slicing; Proceedings of the 2021 Joint European Conference on Networks and Communications and 6G Summit, EuCNC/6G Summit; Porto, Portugal. 8–11 June 2021; pp. 395–400. - DOI
    1. Zanzi L., Albanese A., Sciancalepore V., Costa-Perez X. NSBchain: A Secure Blockchain Framework for Network Slicing Brokerage; Proceedings of the IEEE International Conference on Communications; Dublin, Ireland. 7–11 June 2020; - DOI
    1. Sattar D., Matrawy A. Towards Secure Slicing: Using Slice Isolation to Mitigate DDoS Attacks on 5G Core Network Slices; Proceedings of the 2019 IEEE Conference on Communications and Network Security; CNS, Washington, WA, USA. 10–12 June 2019; pp. 82–90. - DOI
    1. Gonçalves J.P.d.B., de Resende H.C., Villaca R.d.S., Municio E., Both C.B., Marquez-Barja J.M. Distributed Network Slicing Management Using Blockchains in E-Health Environments. Mob. Netw. Appl. 2021;26:2111–2122. doi: 10.1007/s11036-021-01745-1. - DOI
