Developing machine learning-based models to predict intrauterine insemination (IUI) success by address modeling challenges in imbalanced data and providing modification solutions for them

Abstract

Background: This study sought to provide machine learning-based classification models to predict the success of intrauterine insemination (IUI) therapy. Additionally, we sought to illustrate the effect of models fitting with balanced data vs original data with imbalanced data labels using two different types of resampling methods. Finally, we fit models with all features against optimized feature sets using various feature selection techniques.

Methods: The data for the cross-sectional study were collected from 546 infertile couples with IUI at the Fatemehzahra Infertility Research Center, Babol, North of Iran. Logistic regression (LR), support vector classification, random forest, Extreme Gradient Boosting (XGBoost) and, Stacking generalization (Stack) as the machine learning classifiers were used to predict IUI success by Python v3.7. We employed the Smote-Tomek (Stomek) and Smote-ENN (SENN) resampling methods to address the imbalance problem in the original dataset. Furthermore, to increase the performance of the models, mutual information classification (MIC-FS), genetic algorithm (GA-FS), and random forest (RF-FS) were used to select the ideal feature sets for model development.

Results: In this study, 28% of patients undergoing IUI treatment obtained a successful pregnancy. Also, the average age of women and men was 24.98 and 29.85 years, respectively. The calibration plot in this study for IUI success prediction by machine learning models showed that between feature selection methods, the RF-FS, and among the datasets used to fit the models, the balanced dataset with the Stomek method had well-calibrating predictions than other methods. Finally, the brier scores for the LR, SVC, RF, XGBoost, and Stack models that were fitted utilizing the Stomek dataset and the chosen feature set using the Random Forest technique obtained equal to 0.202, 0.183, 0.158, 0.129, and 0.134, respectively. It showed duration of infertility, male and female age, sperm concentration, and sperm motility grading score as the most predictable factors in IUI success.

Conclusion: The results of this study with the XGBoost prediction model can be used to foretell the individual success of IUI for each couple before initiating therapy.

Keywords: Cumulative live birth; Imbalanced data; Infertility; Intrauterine insemination; Machine learning.

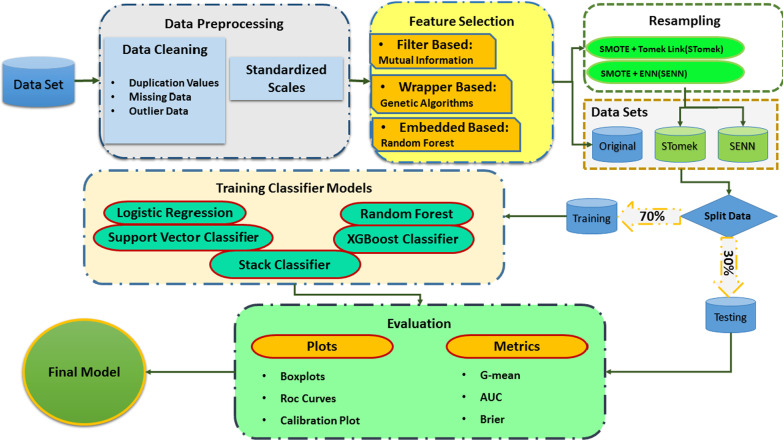

Fig. 1

Modeling steps with Python in this study

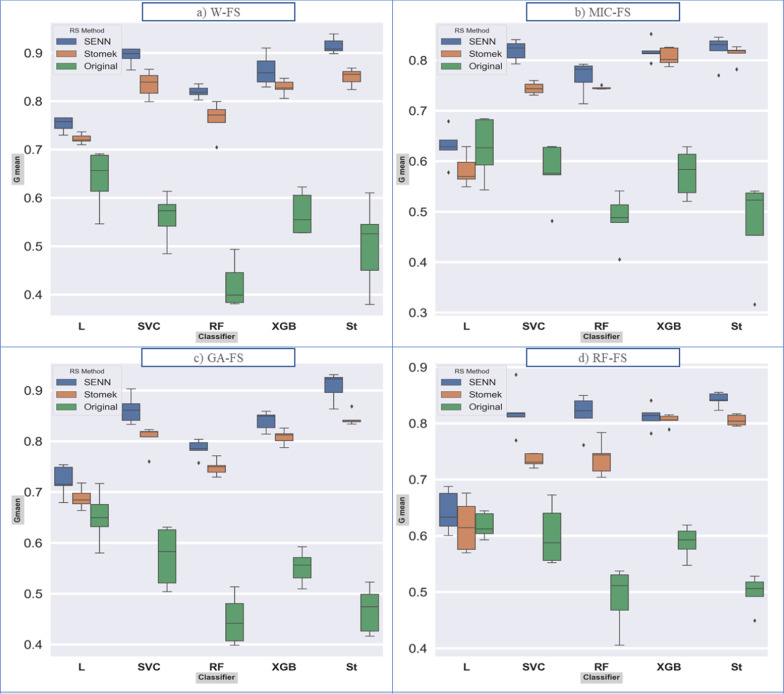

Fig. 2

Boxplot for G-means index, for each model. a: d show plots related to the feature selection methods. Abbreviations: RS method: Resampling method

Fig. 3

ROC curve and AUC index of each class by different models. Each row by 1: 4 numbers show graphs for each feature selection method and Columns a: c show plots related to the data used to model training

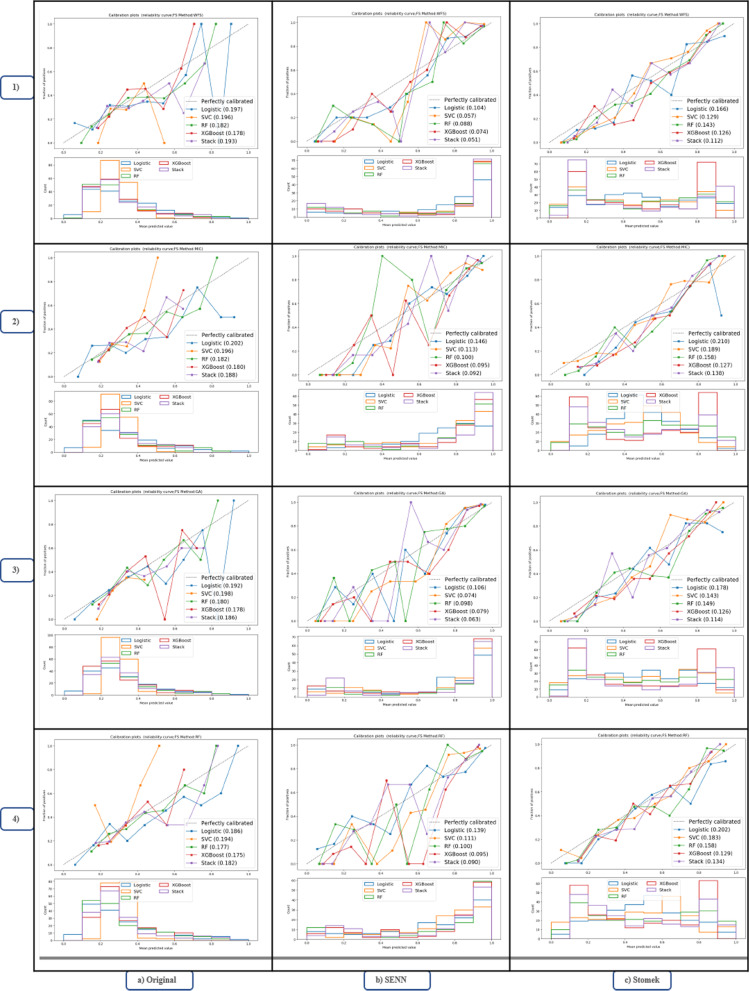

Fig. 4

Reliability and predictive power of each class by different model. Each row by 1: 4 numbers show graphs for each feature selection method; 1) Without feature selection (W_FS), 2) Mutual Information Classification feature selection (MIC-FS), 3) genetic algorithm feature selection (GA-FS), and 4) random forest feature selection (RF-FS), and Columns a: c show plots related to the data used to model training

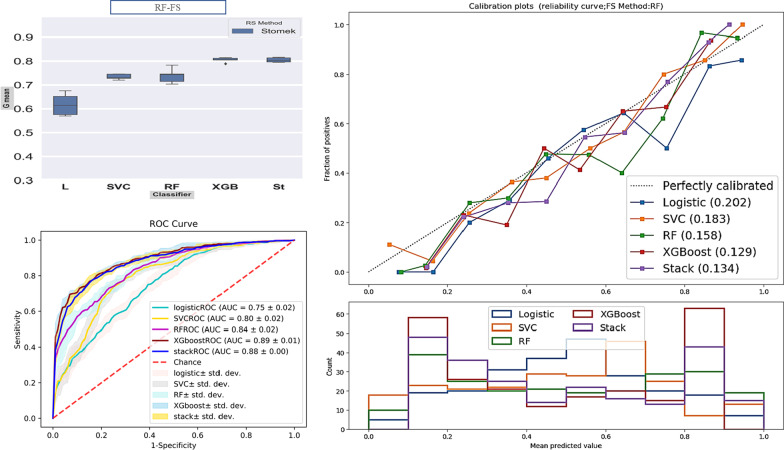

Fig. 5

Boxplot, calibration plot, and ROC curve for trained models with random forest- selected features from the Stomek-balanced dataset

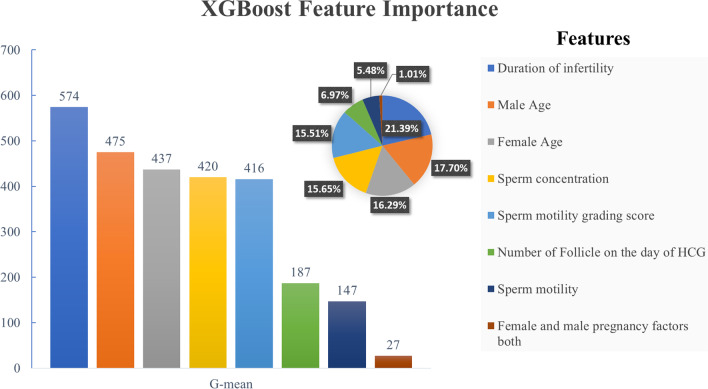

Fig. 6

Ranking of features used in XGBoost based on the effect on model learning and prediction
