. 2022 Aug 30;12(17):3006.
doi: 10.3390/nano12173006.

Nanostructured PbS-Doped Inorganic Film Synthesized by Sol-Gel Route

Adrian Ionut Nicoara  1 , Mihai Eftimie  1 , Mihail Elisa  2 , Ileana Cristina Vasiliu  2 , Cristina Bartha  3 , Monica Enculescu  3 , Mihaela Filipescu  4 , César Elosúa Aguado  5   6 , Diego Lopez  5 , Bogdan Alexandru Sava  1   4 , Mihai Oane  4
Affiliations

Nanostructured PbS-Doped Inorganic Film Synthesized by Sol-Gel Route

Adrian Ionut Nicoara et al. Nanomaterials (Basel). .

Abstract

IV-VI semiconductor quantum dots embedded into an inorganic matrix represent nanostructured composite materials with potential application in temperature sensor systems. This study explores the optical, structural, and morphological properties of a novel PbS quantum dots (QDs)-doped inorganic thin film belonging to the Al2O3-SiO2-P2O5 system. The film was synthesized by the sol-gel method, spin coating technique, starting from a precursor solution deposited on a glass substrate in a multilayer process, followed by drying of each deposited layer. Crystalline PbS QDs embedded in the inorganic vitreous host matrix formed a nanocomposite material. Specific investigations such as X-ray diffraction (XRD), optical absorbance in the ultraviolet (UV)-visible (Vis)-near infrared (NIR) domain, NIR luminescence, Raman spectroscopy, scanning electron microscopy-energy dispersive X-ray (SEM-EDX), and atomic force microscopy (AFM) were used to obtain a comprehensive characterization of the deposited film. The dimensions of the PbS nanocrystallite phase were corroborated by XRD, SEM-EDX, and AFM results. The luminescence band from 1400 nm follows the luminescence peak of the precursor solution and that of the dopant solution. The emission of the PbS-doped film in the NIR domain is a premise for potential application in temperature sensing systems.

Keywords: alumino-silico-phosphate glass; composite material; lead sulfide; optical properties; quantum confinement; quantum dots; sol-gel method.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of the data; in the writing of the manuscript; or in the decision to publish the results.

Figures

Figure 1
Figure 1
XRD pattern of PbS-doped film.
Figure 2
Figure 2
(a) Optical absorption of PbS-doped and un-doped film, and glass substrate; (b) graphical determination of the optical band gap value.
Figure 3
Figure 3
(a) variation of (α/λ)0.5 with 1/λ; (b) Urbach plot for PbS-doped glass.
Figure 4
Figure 4
Optical emission of PbS-doped film, precursor solution and glass substrate, collected by 800 nm excitation.
Figure 5
Figure 5

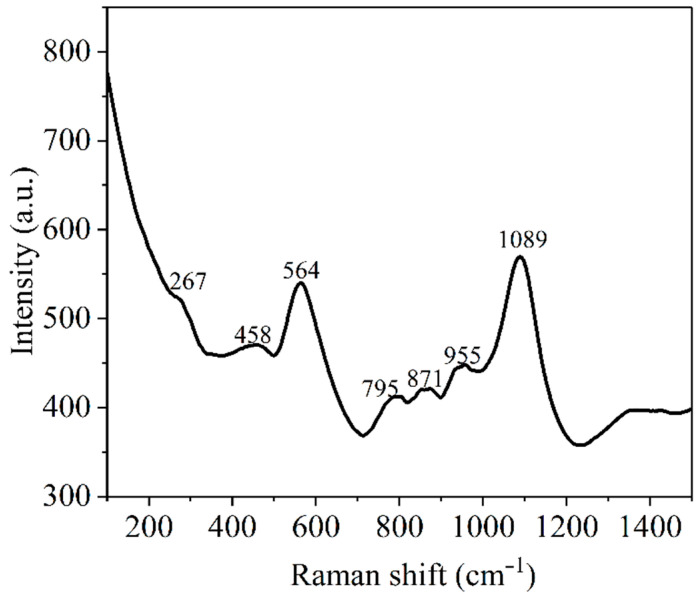

Raman spectrum of PbS-doped film, collected by 514 nm excitation.
Figure 6
Figure 6
SEM image in a cross section of PbS-doped film, deposited on a glass substrate.
Figure 7
Figure 7
SEM image of the PbS-doped film surface.
Figure 8
Figure 8
EDX elemental composition of the Pb-doped film deposited on glass substrate.
Figure 9
Figure 9
AFM images of the surface layer of the PbS-doped film, scanned on different areas: (a) 40 μm × 40 μm and (b) 2 μm × 2 μm.
See this image and copyright information in PMC

References

    1. Jang Y., Shapiro A., Isarov M., Rubin-Brusilovski A., Safran A., Budniak A.K., Horani F., Dehnel J., Sashchiuk A., Lifshitz E. Interface control of electronic and optical properties in IV–VI and II–VI core/shell colloidal quantum dots: A review. Chem. Commun. 2016;53:1002–1024. doi: 10.1039/C6CC08742F. - DOI - PubMed
    1. Wang R., Tong X., Long Z., Channa A.I., Zhao H., Li X., Cai M., You Y., Sun X., Wang Z. Rational design of eco-friendly Mn-doped nonstoichiometric CuInSe/ZnSe core/shell quantum dots for boosted photoelectrochemical efficiency. Nano Res. 2022;15:7614–7621. doi: 10.1007/s12274-022-4334-2. - DOI
    1. You Y., Tong X., Channa A.I., Li X., Liu C., Ye H., Wang Z. Tailoring the optoelectronic properties of eco-friendly CuGaS2/ZnSe core/shell quantum dots for boosted photoelectrochemical solar hydrogen production. EcoMat. 2022:e12206. doi: 10.1002/eom2.12206. - DOI
    1. Zaini M.S., Kamarudin M.A., Liew Y.C.J., Ahmad S.A.A., Mohmad A.R. Temperature and Power Dependence of Photoluminescence in PBS Quantum Dots Nanoparticles. Sains Malays. 2019;48:1281–1288. doi: 10.17576/jsm-2019-4806-16. - DOI
    1. Chillcce E., Ramos-Gonzales R., Cordeiro C., Gutierrez-Rivera L., Fragnito H., Cruz C.D.B., Bordonalli A., Hernández-Figueroa H., Braga R., Barbosa L. Luminescence of PbS quantum dots spread on the core surface of a silica microstructured optical fiber. J. Non-Cryst. Solids. 2010;356:2397–2401. doi: 10.1016/j.jnoncrysol.2010.03.025. - DOI
