Potential of ATR-FTIR-Chemometrics in Covid-19: Disease Recognition

Abstract

The COVID-19 pandemic has caused major disturbances to human health and economy on a global scale. Although vaccination campaigns and important advances in treatments have been developed, an early diagnosis is still crucial. While PCR is the golden standard for diagnosing SARS-CoV-2 infection, rapid and low-cost techniques such as ATR-FTIR followed by multivariate analyses, where dimensions are reduced for obtaining valuable information from highly complex data sets, have been investigated. Most dimensionality reduction techniques attempt to discriminate and create new combinations of attributes prior to the classification stage; thus, the user needs to optimize a wealth of parameters before reaching reliable and valid outcomes. In this work, we developed a method for evaluating SARS-CoV-2 infection and COVID-19 disease severity on infrared spectra of sera, based on a rather simple feature selection technique (correlation-based feature subset selection). Dengue infection was also evaluated for assessing whether selectivity toward a different virus was possible with the same algorithm, although independent models were built for both viruses. High sensitivity (94.55%) and high specificity (98.44%) were obtained for assessing SARS-CoV-2 infection with our model; for severe COVID-19 disease classification, sensitivity is 70.97% and specificity is 94.95%; for mild disease classification, sensitivity is 33.33% and specificity is 94.64%; and for dengue infection assessment, sensitivity is 84.27% and specificity is 94.64%.

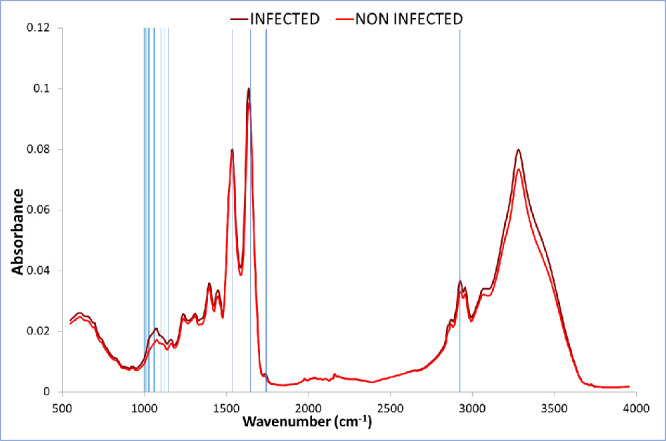

Figure 1

Average of all 55 SARS-CoV-2 positive spectra, and the average of all 194 negatives (cm^–1). Wavenumbers selected for separation of categories between both types of samples indicated by vertical lines.

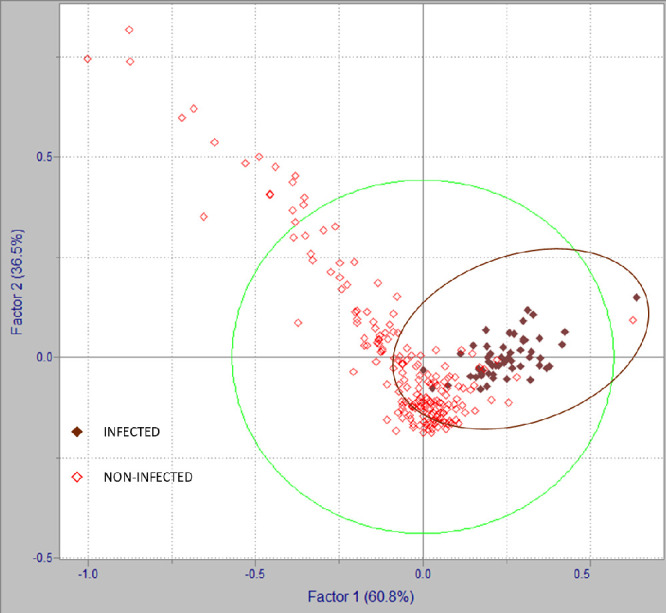

Figure 2

2D representation of Y1/CS1 scores by PLS-DA of SARS-CoV-2 infected and non-infected patients.

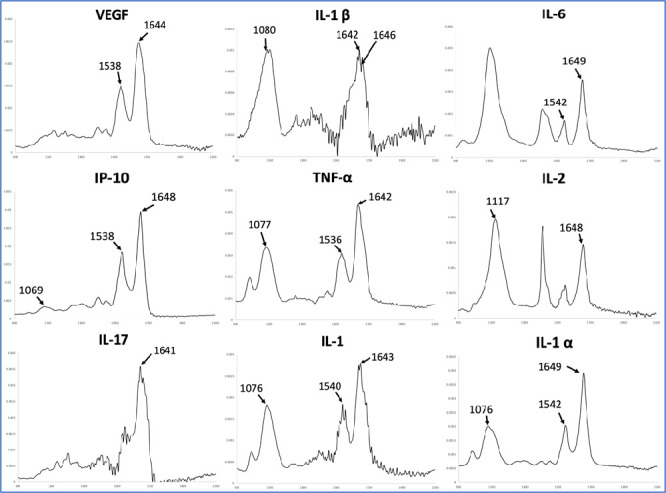

Figure 3

Raw spectra of cytokine standards where correspondence with our model was shown (in absorbance vs wavenumber range in cm^–1).
