Truncal Valve Repair: 3-Dimensional Imaging and Modeling to Enhance Preoperative Surgical Planning

Trevor R Williams #  1 , Alana R Cianciulli #  2 , Yan Wang  1 , Andras Lasso  3 , Csaba Pinter  4 , Alison M Pouch  5 , David M Biko  6 , Muhammad Nuri  7 , Michael D Quartermain  1 , Lindsay S Rogers  1 , Jonathan M Chen  7 , Matthew A Jolley  1   2   5
Affiliations

Truncal Valve Repair: 3-Dimensional Imaging and Modeling to Enhance Preoperative Surgical Planning

Trevor R Williams et al. Circ Cardiovasc Imaging. 2022 Dec.
No abstract available

Keywords: computer simulation; imaging; surgical planning; three-dimensional; truncus arteriosus.

PubMed Disclaimer

Figures

Figure 1:
Figure 1:. Preoperative Imaging of Truncal Valve.
A. 3D Echocardiographic (3DE) image of truncal valve in diastole; B. 3DE image in truncal valve in systole; C. Short-Axis 2D Color Doppler in diastole showing primarily central regurgitation; D. 3D Color Doppler image in diastole demonstrating primarily central regurgitation; E. Volume rendering of CT scan in diastole demonstrating central coaptation defect from a surgical view; F. Volume rendering of CT scan in systole showing partial leaflet fusion. See Video 1 for expanded description and multiphase video. A=Anterior, P=Posterior, L=Left, R=Right.
Figure 2:
Figure 2:. 3D Image-Derived Modeling to Inform Truncal Valve Repair.
A. Measurement of the geometric height (gH) in a 2D plane bisecting the anterior and rightward truncal leaflet in diastole; B. Same measurement in volume rendered CT scan; C. Measurement of the geometric height (gH) in a 2D plane bisecting the anterior and rightward truncal leaflet in 3D echocardiogram (3DE) in diastole; D. Same measurement in volume rendering of 3DE; E. Segmented model of truncal valve in diastole; F. Segmented model of truncal valve in diastole with upper and lower annular rings demonstrating asymmetry of leaflet heights; F. Segmented model of truncal valve with upper and lower annular rings demonstrating asymmetry of leaflet heights. See Videos 2–4 for expanded description. Blue leaflet = Left anterior, Green leaflet = Right anterior, Yellow leaflet = Left posterior, Red leaflet = Right posterior.
Figure 3:
Figure 3:. Comparison of Preoperative Imaging to Postoperative Imaging of Truncal Valve Repair.

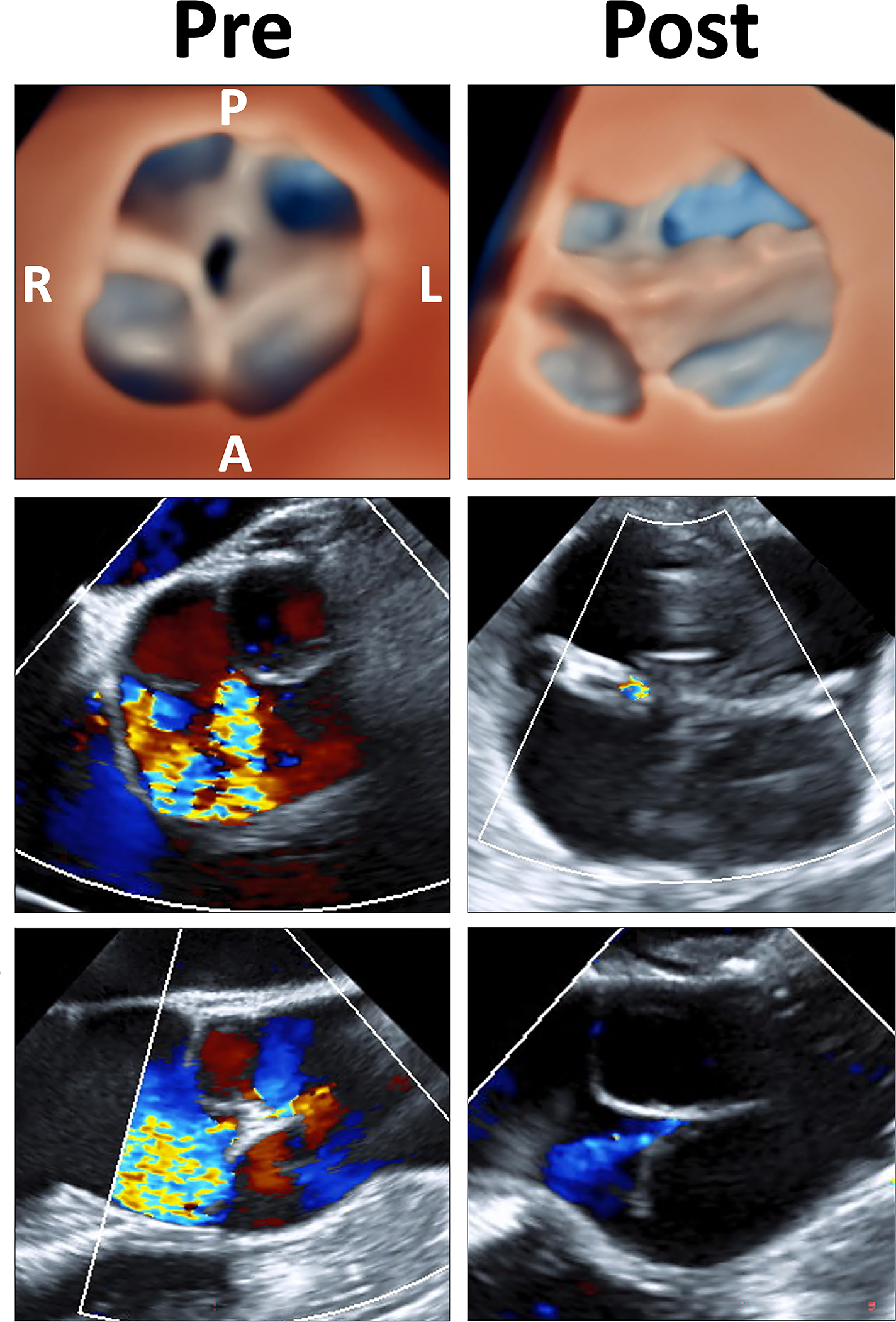

Top. Comparison of 3D echocardiographic images of truncal valve before and after repair in diastole; Middle. Comparison of 2D-color doppler in short axis before and after repair showing significantly reduced regurgitation; Bottom: Comparison of 2D-color doppler in long axis before and after repair demonstrating the same. See Video 5 for expanded description. 3D = three-dimensional; 2D = two-dimensional; L = left; R = right; A = anterior; P= posterior; Pre = pre-repair; Post = post-repair
See this image and copyright information in PMC
