Is Hip Medial Ultrasound More Accurate Than Radiography for Determining the Status of Hip Reduction in Children Treated With a Spica Cast? A Retrospective Diagnostic Accuracy Study

Abstract

Background: Developmental dysplasia of the hip (DDH) is the most common hip abnormality in children. Closed or open reduction and cast immobilization are the most commonly used treatments for patients aged 6 to 18 months with dislocation; they are also used in children younger than 6 months when brace treatment is not effective. During cast immobilization, surgeons need reliable and timely imaging methods to assess the status of hip reduction to ensure successful treatment and avoid complications. Several methods are used, but they have disadvantages. We developed and, in this study, evaluated a hip medial ultrasound method to evaluate the status of hip reduction in children treated with a spica cast.

Question/purpose: Is hip medial ultrasound more accurate than radiography for determining the status of hip reduction in children treated with a spica cast?

Methods: Between November 2017 and December 2020, we treated 136 patients with closed or open reduction and spica casting for DDH in our department. These children were 3 to 18 months old at the time of surgical reduction and had a specific medical history, physical examination findings, or AP radiographic evidence of unilateral or bilateral DDH. None had a concomitant femoral/acetabular osteotomy procedure in these hips. All patients underwent hip medial ultrasound, AP radiography, and MRI under sedation within 2 to 7 days after open or closed reduction. The examination time was from the second day after reduction to enable the patient to recover from anesthesia. MRI was performed within 7 days after reduction because of a few long appointment times, and ultrasound and AP radiography were always performed 1 or 2 days before MRI. Based on that, 65% (88 of 136 [88 hips]) of patients were excluded due to the absence of MRI, ultrasound, or AP radiography; 3% (4 of 136 [4 hips]) of patients were excluded because of concurrent congenital spina bifida, Larson syndrome, or Prader-Willi syndrome; and 1% (1 of 136 [1 hip]) of patients were excluded because the patient underwent MRI before ultrasound. A total of 32% (43 of 136 [43 hips]) of patients were eligible for analysis in this cross-sectional diagnostic study, and these 43 patients underwent AP radiography, ultrasound, and MRI. In this retrospective study, the mean age at the time of surgery was 10 ± 4 months (male:female ratio 5:38; unilateral DDH: 34; bilateral DDH: 9). To ensure the independence of the results, the study was limited to one hip per patient (in patients with bilateral DDH, the right hip was evaluated). The reduction of 43 hips (left:right ratio 26:17; closed:open reduction ratio 30:13) was evaluated by MRI, hip medial ultrasound, and radiography. Children with spica casts were placed in the supine position, which is necessary to expose the perineum for ultrasound. We used a broad-spectrum, microconvex, and intracavitary probe. The acetabular medial wall was identified by the triradiate cartilage of the ischial tuberosity and the pubis superior, and the femoral head was identified by the femoral neck. Then, the acetabulum coronal midsectional plane was used to determine the positions of the femoral head and acetabulum and to measure the triradiate cartilage-femoral distance. MRI examinations were performed using a 1.5-T MRI system with an eight-channel body coil. Each reviewer evaluated each reduction independently. Additionally, to further assess the hip medial ultrasound method's reliability and reproducibility, we investigated the interobserver and intraobserver agreement in evaluating the reduction using hip medial ultrasound. Using ultrasound or radiography, the reviewers classified hips as reduced, uncertain status, or dislocated. MRI was considered the gold standard for assessing hip reduction, and the reviewers classified hips as reduced or dislocated by MRI. Patients with hips with an uncertain reduction status according to ultrasound or radiography were retained in the analysis. Thus, the test results of radiography and ultrasound were classified into three classifications (positive, negative, or uncertain) in the present study. The test was considered positive or negative when patients were assessed with dislocation or without dislocation, respectively. The sensitivity, specificity, positive predictive value (PPV), and negative predictive value (NPV) of ultrasound and radiography were calculated and compared. We combined uncertain and positive into the positive classification to be conservative in the statistical choices. The specificity, sensitivity, PPV, and NPV were analyzed based on this premise. Furthermore, a subgroup analysis was conducted by sex. MRI evaluation revealed that 41 hips were reduced and two hips were dislocated.

Results: The sensitivity, specificity, PPV, and NPV of ultrasound were 100% (95% CI 16% to 100%), 95% (95% CI 84% to 99%), 50% (95% CI 7% to 93%), and 100% (95% CI 91% to 100%), respectively. The sensitivity, specificity, PPV, and NPV of radiography were 50% (95% CI 1% to 99%), 68% (95% CI 52% to 82%), 7% (95% CI 0% to 34%), and 97% (95% CI 82% to 100%), respectively. Ultrasound showed a higher specificity (95% versus 68%; p < 0.001) and PPV (50% versus 7%; p = 0.02) than radiography. The sensitivity, specificity, PPV, and NPV of ultrasound were 100% (95% CI 16% to 100%), 94% (95% CI 81% to 99%), 50% (95% CI 7% to 93%), and 100% (95% CI 90% to 100%), respectively, for female patients (with only five male patients, we could not perform these analyses in this group). The sensitivity, specificity, PPV, and NPV of radiography were 50% (95% CI 1% to 99%), 64% (95% CI 46% to 79%), 7% (95% CI 0% to 34%), and 96% (95% CI 79% to 100%), respectively, for female patients. The κ values for intra- and interobserver reliability both were 1.0.

Conclusion: Hip medial ultrasound can directly visualize the femoral head and acetabulum. Hip medial ultrasound is more reliable than radiography as a preliminary evaluation method and does not involve irradiation. We recommend using hip medial ultrasound during outpatient follow-up visits for patients younger than 2 years treated with hip reduction and cast immobilization.

Level of evidence: Level III, diagnostic study.

Fig. 1

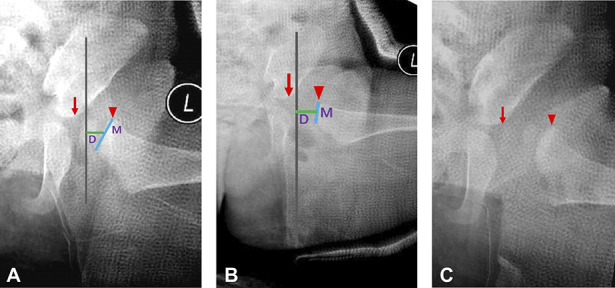

A-C (A) Radiography evaluation criteria for the reduced hip: The highest point of the superior margin of the ossified metaphysis (arrowhead) was not higher than the superolateral margin of the triradiate cartilage (small arrow), the direction of the long axis of the metaphysis of the proximal femur was toward the triradiate cartilage, and the distance (D) from the midpoint of the superior margin of the ossified metaphysis to the perpendicular line from the superolateral margin of the acetabulum was smaller than the length of the superior margin of the ossified metaphysis (M). (B) Radiography evaluation criteria for the uncertain hip: The highest point of the superior margin of the ossified metaphysis (arrowhead) was not higher than the superolateral margin of the triradiate cartilage (small arrow), the direction of the long axis of the metaphysis of the proximal femur was toward the triradiate cartilage, and the distance (D) from the midpoint of the superior margin of the ossified metaphysis to the perpendicular line from the superolateral margin of the acetabulum was larger than the length of the superior margin of the ossified metaphysis (M). (C) Radiography evaluation criteria for the dislocated hip: The Shenton line was broken, the highest point of the superior margin of the ossified metaphysis (arrowhead) was higher than the superolateral margin of the triradiate cartilage (small arrow), and the direction of the long axis of the metaphysis of the proximal femur was not toward the triradiate cartilage. A color image accompanies the online version of this article.

Fig. 2

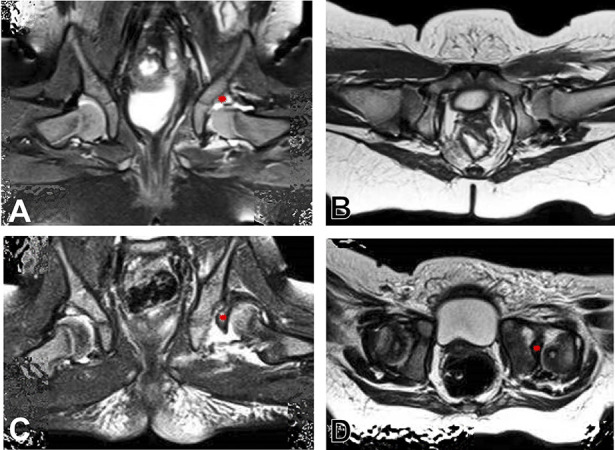

MRI evaluation criteria for (A-B) the reduced hip: Coronal imaging demonstrated that the femoral head was below the labrum (*). Coronal and axial imaging demonstrated that the femoral head was in the acetabulum and that the direction of the femoral head was toward the triradiate cartilage. (C-D) For the dislocated hip: Coronal and axial imaging demonstrated that the femoral head was completely dislocated and was separated from the acetabulum by the inverted labrum (*). A color image accompanies the online version of this article.

Fig. 3

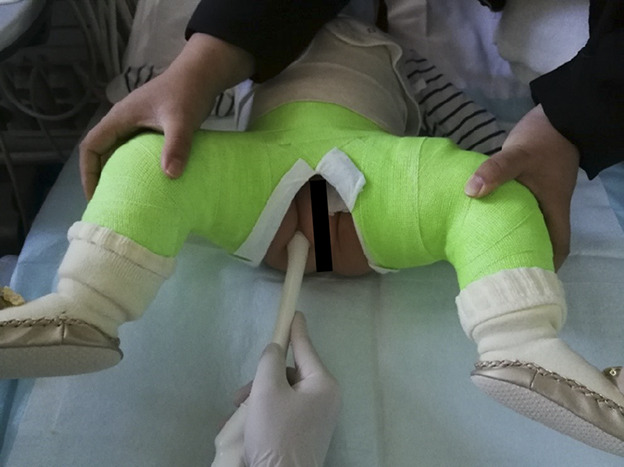

This photograph shows positioning of the probe on a child in a spica cast. The probe was placed at the medial side of the hip, and the sound beam was parallel to the coronal plane of the body.

Fig. 4

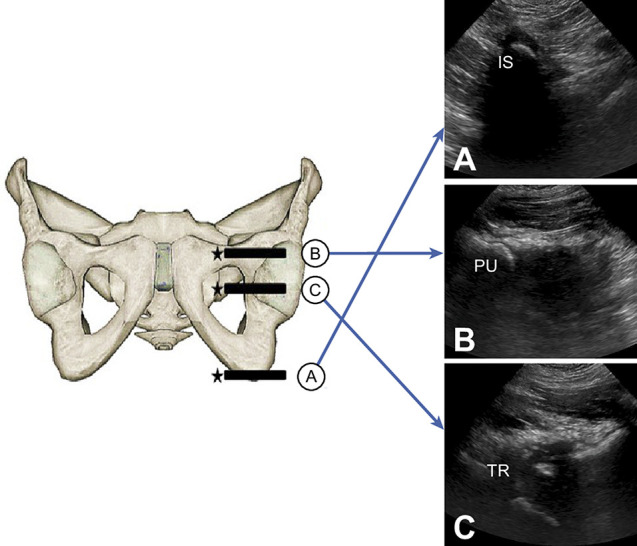

A-C This figure shows the scanning procedure for hip medial ultrasound. According to the bony markers of the (A) ischial tuberosity and (B) pubis superior ramus, the probe was moved up and down to identify (C) the triradiate cartilage between the pubis and ischium; PU = pubis; TR = triradiate cartilage; IS = ischium.

Fig. 5

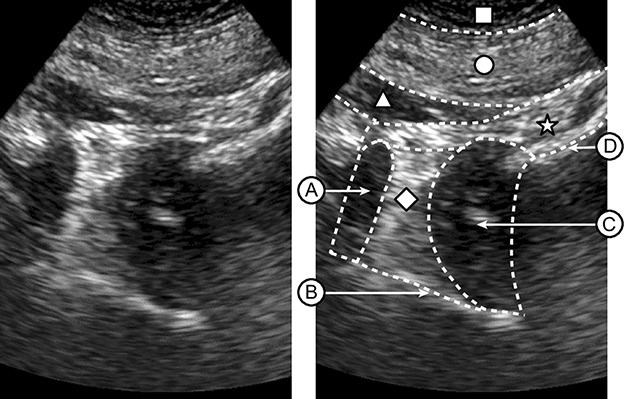

These images are of the hip’s anatomic structures in the acetabulum coronal midsectional plane: (A) triradiate cartilage, (B) bony acetabular roof (ilium), (C) femoral head, and (D) femoral neck; □ = skin layer and subcutaneous tissue; ○ = hip adductor; △ = obturator externus; ☆= joint capsule; ◇ = acetabular component, such as the pulvinar fat pad and ligament teres.

Fig. 6

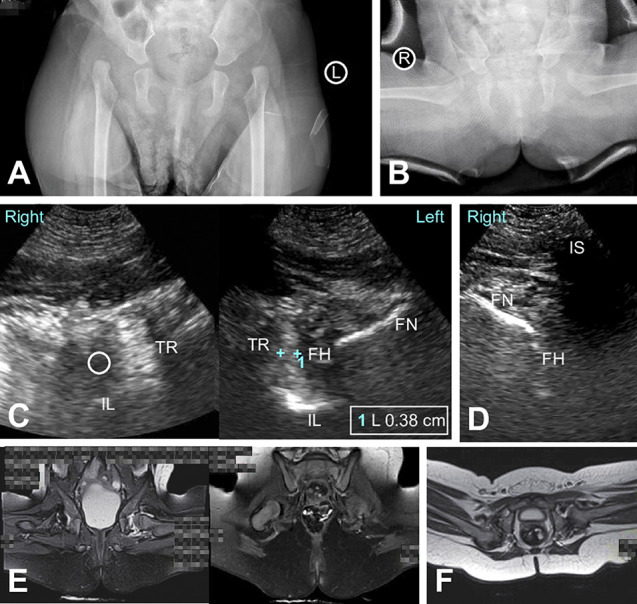

A-F An 11-month-old female with a bilaterally dislocated hip underwent closed reduction and spica cast immobilization. (A) A preoperative AP radiograph of the pelvis shows bilateral hip dislocation. (B) A postoperative AP radiograph shows bilateral hip reduction. (C) Hip medial ultrasound after reduction shows that the left hip was reduced (TFD = 3.8 mm), the right hip was dislocated, and the femoral head could not be seen in the acetabulum coronal midsectional plane (“○” indicates that the femoral head was not in the acetabulum). (D) Hip medial ultrasound after reduction shows that the right femoral head is in the ischial tuberosity coronal plane and was dislocated behind the acetabulum. (E) A postoperative MR image of the coronal midsectional plane shows that the left hip was reduced and the right hip was dislocated, and ischial tuberosity in the coronal plane shows that the right femoral head was dislocated toward the back of the acetabulum. (F) A postoperative MR image in the axial plane shows dislocation of the right femoral head toward the posterior acetabulum; IL = ilium (bony acetabular roof); TR = triradiate cartilage; FH = femoral head; FN = femoral neck; IS = ischium.

Fig. 7

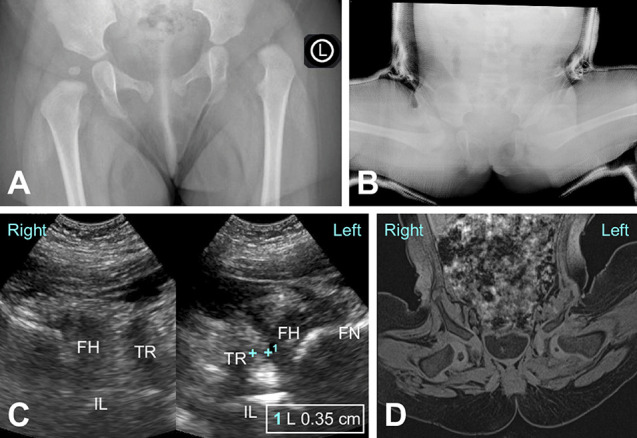

A-D A 9-month-old female had a dislocated left hip after open reduction and spica cast immobilization. (A) An intraoperative AP radiograph of the pelvis before reduction shows left hip dislocation. (B) A postoperative AP radiograph shows an uncertain left hip reduction status because the femoral head was too close to the acetabulum. (C) Hip medial ultrasound after reduction shows that the left hip was reduced (left hip TFD = 3.5 mm). (D) A postoperative MR image in the coronal midsectional plane shows that the hip was reduced; IL = ilium (bony acetabular roof); TR = triradiate cartilage; FH = femoral head; FN = femoral neck.

Fig. 8

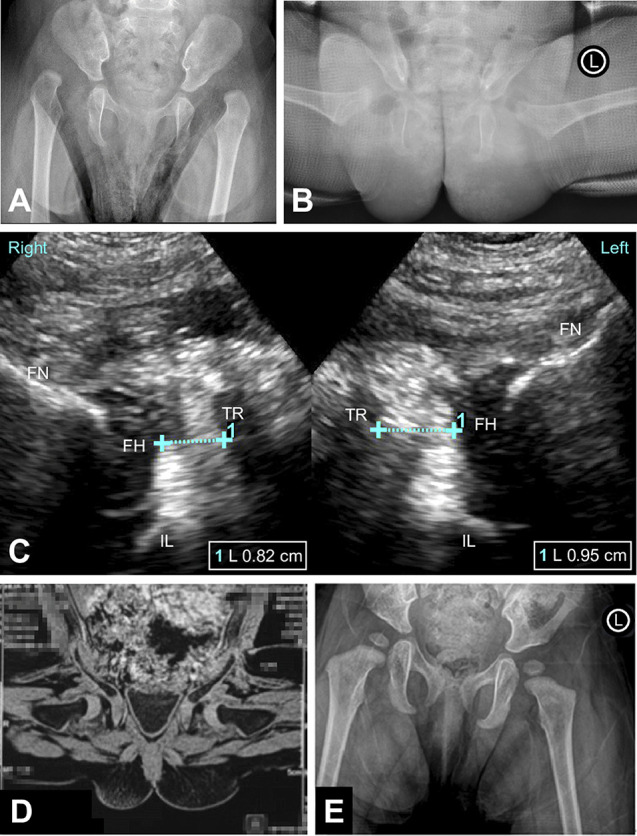

A-E A 7-month-old female had bilaterally dislocated hips after open reduction and spica cast immobilization. (A) An intraoperative AP radiograph of the pelvis before reduction shows bilateral hip dislocation. (B) A postoperative AP radiograph shows that both hips have an uncertain status because the femoral head was far from the medial wall of the acetabulum. (C) Hip medial ultrasound after reduction shows that both hips were reduced (left hip TFD = 9.5 mm; right hip TFD = 8.2 mm). (D) A postoperative MR image in the coronal midsectional plane shows bilateral hip reduction. (E) At 9 months postoperatively, an AP radiograph at the clinical follow-up visit shows bilateral hip reduction; IL = ilium (bony acetabular roof); TR = triradiate cartilage; FH = femoral head; FN = femoral neck.
