Scalable synthesis of gyroid-inspired freestanding three-dimensional graphene architectures

Abstract

Three-dimensional porous architectures of graphene are desirable for energy storage, catalysis, and sensing applications. Yet it has proven challenging to devise scalable methods capable of producing co-continuous architectures and well-defined, uniform pore and ligament sizes at length scales relevant to applications. This is further complicated by processing temperatures necessary for high quality graphene. Here, bicontinuous interfacially jammed emulsion gels (bijels) are formed and processed into sacrificial porous Ni scaffolds for chemical vapor deposition to produce freestanding three-dimensional turbostratic graphene (bi-3DG) monoliths with high specific surface area. Scanning electron microscopy (SEM) images show that the bi-3DG monoliths inherit the unique microstructural characteristics of their bijel parents. Processing of the Ni templates strongly influences the resultant bi-3DG structures, enabling the formation of stacked graphene flakes or fewer-layer continuous films. Despite the multilayer nature, Raman spectra exhibit no discernable defect peak and large relative intensity for the Raman 2D mode, which is a characteristic of turbostratic graphene. Moiré patterns, observed in scanning tunneling microscopy images, further confirm the presence of turbostratic graphene. Nanoindentation of macroscopic pillars reveals a Young's modulus of 30 MPa, one of the highest recorded for sp² carbon in a porous structure. Overall, this work highlights the utility of a scalable self-assembly method towards porous high quality graphene constructs with tunable, uniform, and co-continuous microstructure.

Fig. 1. Schematic illustrating the bi-3DG synthesis process. (a) First, a bi-PEGDA template is made via a spinodal decomposition of a polymer-infiltrated lutidine : water : silica mixture. (b) The bi-PEGDA is coated with Ni via electroless deposition and put through a 2-step thermal cycle to decompose the PEGDA and reduce Ni to create a bi-Ni scaffold. (c) CVD using methane on the Ni template is performed, resulting in bi-Ni-3DG. (d) Finally, the Ni backbone is etched, leaving behind a 3D graphene structure, bi-3DG. Below each schematic is an optical image of the macroscopic structure alongside a ruler. The bi-PEGDA has a length of approximately 0.25 inches.

Fig. 2. SEM images of bijel templated samples after (a) SEM images of bijel templated samples after electroless Ni deposition and thermal removal of PEGDA (bi-Ni). The scale bar is 200 μm, (b) after CVD growth at 900 °C for 30 min (bi-Ni-3DG). (c) After etching Ni with FeCl₃ (bi-3DG). A red dashed box tracks the same pore throughout the processes for (a–c).

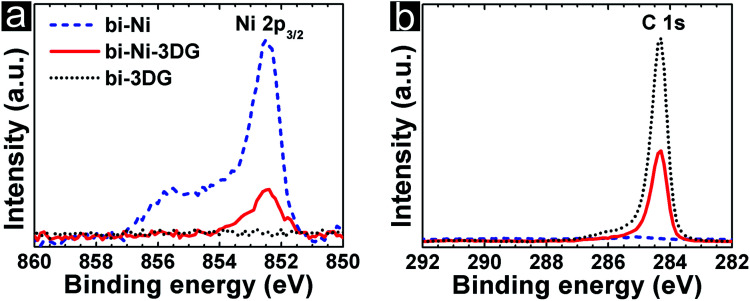

Fig. 3. XPS spectra of the (a) Ni 2p peak and (b) C 1s peak of a bijel templated electroless Ni scaffold after thermal removal of PEGDA (blue curve), after CVD growth (red curve), and after etching Ni with FeCl₃ (black curve).

Fig. 4. (a) Representative Raman spectra of graphene/Ni (red solid curve) and graphene (black dotted curve) bijel-templated architectures. (b) SEM cross sectional image of 3D Ni structure formed from a bijel template after pyrolysis of the Ni-coated PEGDA scaffold. The scale bar is 10 μm. (c) Cross-sectional SEM image of a pore within 3D graphene structure grown on Ni architecture. The scale bar is 4 μm.

Fig. 5. Low voltage SEM images acquired at 1 kV accelerating voltage of surfaces after CVD growth on (a) bijel-templated Ni architecture and (b) on a 2D substrate of Ni/SiO₂/Si. The scale bar is 10 μm. (c) A 50 nm² STM image shows various Moiré patterns on the 2D graphene film on Ni/SiO₂/Si (empty states, I = 0.4 nA, V_gap = 400 mV). The scale bar is 10 nm. Fourier transforms are taken in the three regions highlighted in black boxes and labelled (i)–(iii), with their respective FFT shown below.

Fig. 6. (a) Representative Raman spectrum graphene/Ni (red solid curve) and graphene (black dotted curve) bijel-templated architectures where the nickel was annealed at 900 °C in forming gas before CVD growth. (b–d) SEM images of graphene bijel-templated architectures with scale bars of (b) 100 μm and (c and d) 10 μm.

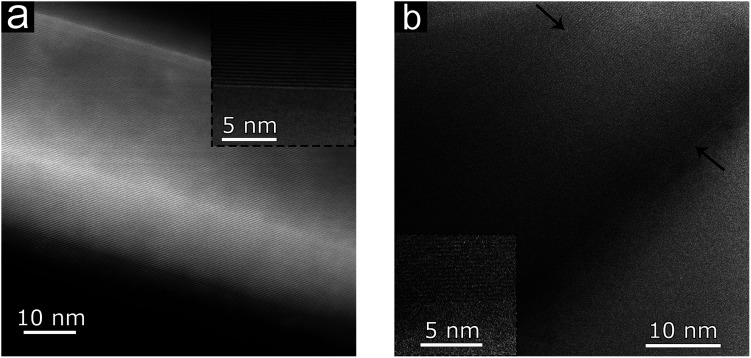

Fig. 7. (a) Bright field TEM image of bi-3DG and (b) HAADF-STEM image of bi-2-3DG in cross section where the arrows highlight the edges of the cross-section in (b). The insets in (a) and (b) show a high-resolution view of layer stacking.

Fig. 8. Nanoindentation measurements of a (a–c) graphene bijel-templated pillar with diameter 0.87 mm and height of 1.24 mm and of a (d–f) similar pillar, pre-annealed, with diameter 0.71 mm and height of 1.4 mm. (a and d) Stress–strain tests are performed on the same pillar with a strain rate of 1.2 μm s⁻¹. Insets are before and after optical images of the graphene bijel-templated pillars. (b and e) Stress–strain curve acquired with a strain rate of 0.25 μm s⁻¹. (c and f) Young's modulus vs. strain from the tests.
