. 2022 Sep 20;10(9):e4183.
doi: 10.1097/GOX.0000000000004183. eCollection 2022 Sep.

Dufourmentel Flap for Scalp Reconstruction

Enrique J Viciana  1 , Anne-Sophie Lessard  2
Affiliations

Dufourmentel Flap for Scalp Reconstruction

Enrique J Viciana et al. Plast Reconstr Surg Glob Open. .

Abstract

Transposition flaps are useful for reconstruction of many skin defects. Limberg described a rhomboid rotation flap in 1946. Dufourmentel described an improved version of the Limberg flap in 1962. The Dufourmentel flap is also a quadrangular rhomboid flap which can be used in any area of the body except for the central face, the fingers, and the volar hand. The design of the Dufourmentel flap creates a wider base for this random flap, thus making it more reliable. Where tissue loss is significant, or where skin and soft tissue elasticity is limited, double opposing Dufourmentel flaps are useful. A variation of the Dufourmentel flap is described where a circular defect is converted to a square. The line of greatest extensibility is marked through the circular defect or lesion. A square is marked around the circle with one corner of the square tilted 10-20 degrees counterclockwise from the line of greatest extensibility. After marking corners A, B, C, and D, lines are marked extending BD and CD. The first incision, DE, will bisect the angle created by extending BD and CD. The second incision, EF, is roughly perpendicular to CD extended, but the angle at E is opened up a bit to create a wider base for the flap. Point D will rotate to point B, E rotates to C, and F translates to D. The invisible line DF should be approximately parallel to the line of greatest extensibility. When the defect is relatively large or where the surrounding tissues have limited elasticity, the above-described ideal variation of the Dufourmentel flap may not be possible because the flap may not rotate and advance all the way around without tension. In this case, double opposing Dufourmentel type flaps have been found to be useful by meeting each other at the halfway point.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
A 78-year-old man presented with this defect of the scalp vertex following Mohs excision of a squamous cell carcinoma.
Fig. 2.
Fig. 2.
Double opposing Dufourmentel-style flaps were designed for closure of the defect.
Fig. 3.
Fig. 3.
This is the appearance of the area on postoperative day 12.
Fig. 4.
Fig. 4.

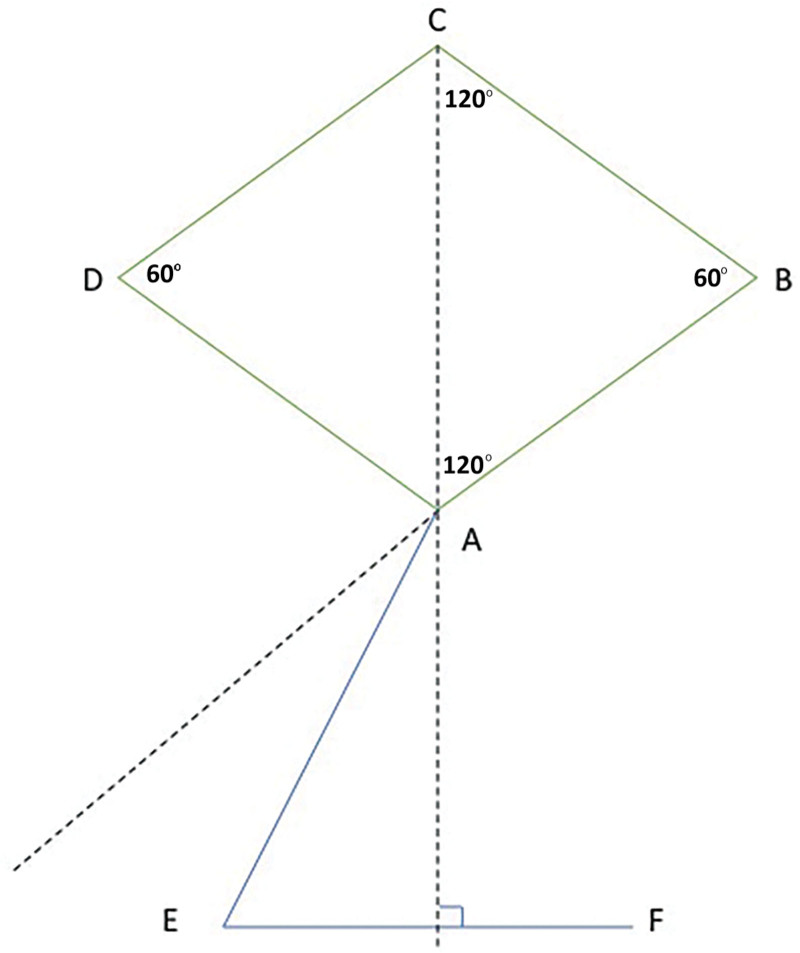

Depiction of the original design of the Dufourmentel flap.
Fig. 5.
Fig. 5.

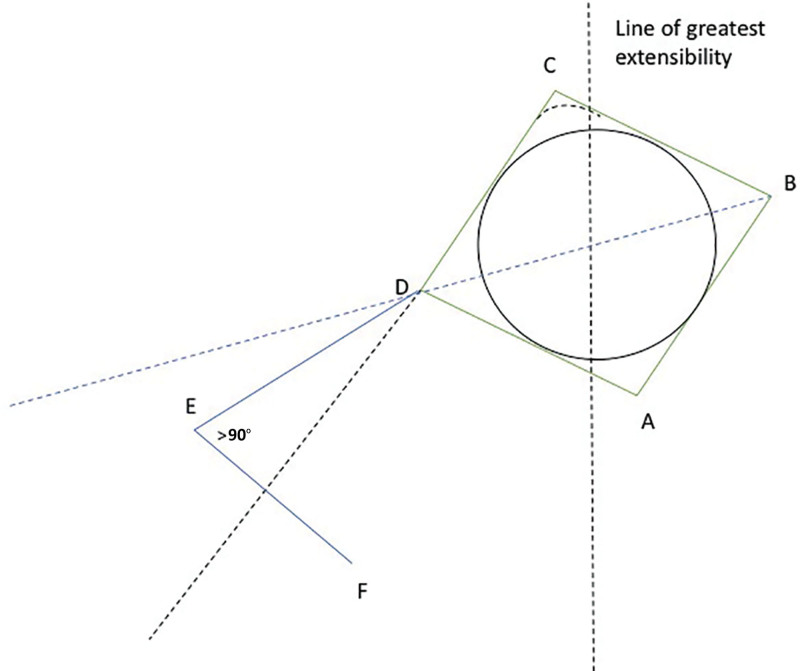

Depiction of the author’s modification of the Dufourmentel flap, where a circular defect is converted to a square.
See this image and copyright information in PMC
