Mirror symmetry and aging: The role of stimulus figurality and attention to colour

Abstract

Symmetry perception studies have generally used two stimulus types: figural and dot patterns. Here, we designed a novel figural stimulus-a wedge pattern-made of centrally aligned pseudorandomly positioned wedges. To study the effect of pattern figurality and colour on symmetry perception, we compared symmetry detection in multicoloured wedge patterns with nonfigural dot patterns in younger and older adults. Symmetry signal was either segregated or nonsegregated by colour, and the symmetry detection task was performed under two conditions: with or without colour-based attention. In the first experiment, we compared performance for colour-symmetric patterns that varied in the number of wedges (24 vs. 36) and number of colours (2 vs. 3) and found that symmetry detection was facilitated by attention to colour when symmetry and noise signals were segregated by colour. In the second experiment, we compared performance for wedge and dot patterns on a sample of younger and older participants. Effects of attention to colour in segregated stimuli were magnified for wedge compared with dot patterns, with older and younger adults showing different effects of attention to colour on performance. Older adults significantly underperformed on uncued wedge patterns compared with dot patterns, but their performance improved greatly through colour cueing, reaching performance levels similar to young participants. Thus, while confirming the age-related decline in symmetry detection, we found that this deficit could be alleviated in figural multicoloured patterns by attending to the colour that carries the symmetry signal.

Keywords: Ageing; Attention; Colour; Perceptual organization; Symmetry.

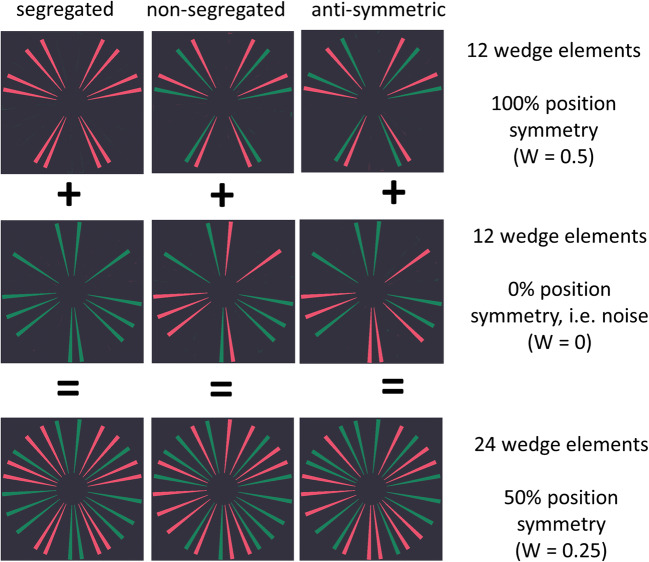

Fig. 1

Properties of colour-symmetric wedge patterns. An example of how a 24-wedge pattern is built by combining twelve 100% positionally symmetric wedge elements and 12 noise elements. Each wedge pattern contains a symmetry signal (i.e., 100% position symmetry, as reflected by the weight of evidence W score of perceptual goodness equal to 0.5 meaning that there are 6 symmetric pairs out of a total of 12 elements) and noise (0% position symmetry). This results in a symmetric pattern with 50% position symmetry for the two-colour condition (W = 0.25) and 33% position symmetry (W = 0.17) for the three-colour condition. There are three colour arrangement conditions: segregated (left), nonsegregated (middle), and antisymmetric (right), all containing 50% position symmetry. In the segregated condition, the symmetry signal is of a single colour (either red or green) and noise of another colour (either green or red). In the nonsegregated condition, the symmetry signal is distributed evenly across the two colours (both red and green) as with the noise. In the antisymmetric condition, the symmetric elements are made of both colours but with symmetric pairs having opposite colours across the symmetry axis. Note that the number of wedges in each colour is equal across the symmetry axis. (Colour figure online)

Fig. 2

Example stimuli for the different colour–symmetry and noise combinations. a Experiment 1: Wedge stimuli consisted of 24 (top) or 36 (bottom) wedges and were of made of two (left) or three (right) colours. There were three colour–symmetry conditions: segregated, nonsegregated, and antisymmetric (see text and Fig. 1 for further details). b Experiment 2 contrasted performance for dot (top) and wedge (bottom) patterns using the segregated, nonsegregated, and antisymmetric conditions. The foil for these conditions was random distributed dots/wedges of all colours in equal proportions. In addition, we included a colour-grouped antisymmetric condition and a colour-grouped random pattern in which one side of the pattern was of one colour and the other side was of a different colour. The colour-grouped noise patterns served as foil for the colour-grouped antisymmetric condition. Note: the colour of the symmetry signal in the segregated conditions is red. (Colour figure online)

Fig. 3

Schematic of the 2IFC procedure. In each trial, participants viewed two intervals—one containing a symmetric pattern and one showing a random/noise pattern (i.e., foil). The order of the patterns was randomized from trial to trial. In this example, the first interval contains the symmetric stimulus in which symmetry and noise are segregated by colour (symmetric wedges are all red), while the second interval contains a noise pattern (0% position symmetry). The fixation cross is elongated along the vertical axis to reinforce that this is the symmetry axis along which the circular patterns are to be judged. (Colour figure online)

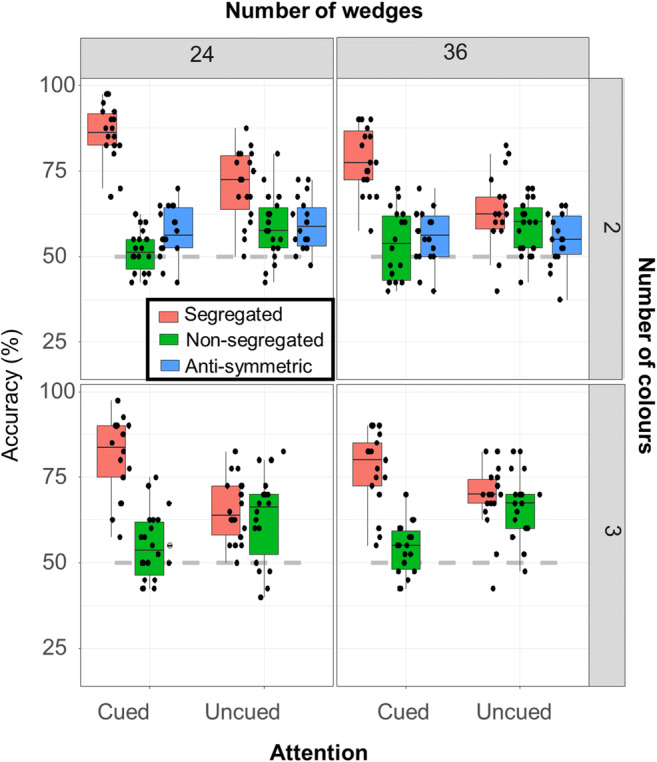

Fig. 4

Results for Experiment 1: Box plot showing accuracy in the symmetry detection task. Dots indicate individual data points. The dashed grey line indicates the chance level (50% accuracy). (Colour figure online)

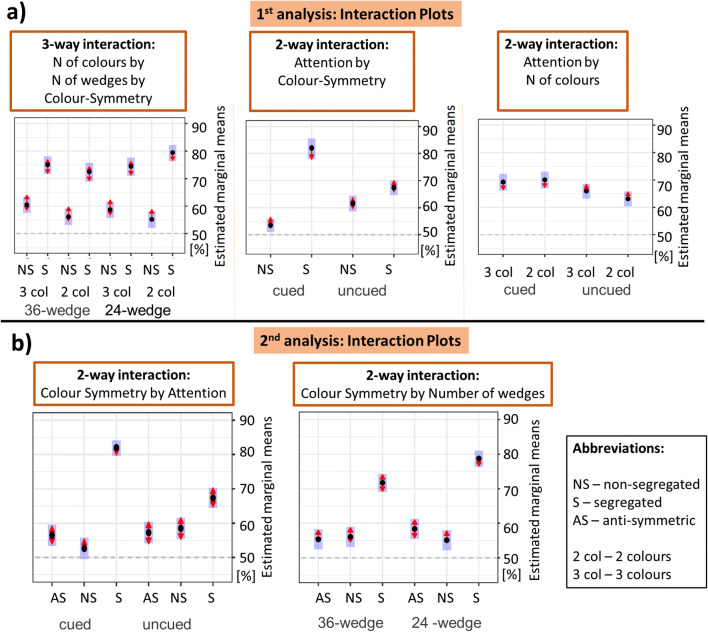

Fig. 5

Plots of all the interactions from Experiment 1. a Interactions from the first analysis, which included patterns that differed in the number of colours. Estimated marginal means derived from the best fitting GLMM are presented on the y-axis, while the levels of factors involved in the interactions are presented on the x-axis. The other factors are collapsed. b Interaction plots for the second analysis involving all three symmetry conditions (nonsegregated, segregated and antisymmetric) for 24 or 36 wedges, with and without attention. Estimated response rates derived from the best fitting GLMM are shown on the y-axis, with only the factors involved in the interaction shown on the x-axis. Dashed lines indicate chance level, shaded blue areas indicate 95% confidence intervals of the estimate, and red arrows demarcate statistically significant differences (note that conditions for which the red errors overlap are not statistically different from each other). (Colour figure online)

Fig. 6

Results for Experiment 2. a Average accuracy in the symmetry detection task. Dots indicate individual participant data. The dashed grey line emphasizes 50% accuracy equivalent to chance performance. b Three-way interaction plots from the best fitting model, depicting data collapsed so as to visualize only those factors involved in the interactions. The left graph depicts the interaction between stimulus type, colour–symmetry and attention, collapsing across age. The right graph depicts the interaction between stimulus type, attention, and age, collapsing across colour–symmetry combinations. Model predictions are back transformed to reflect accuracy measures. Error bars depict 95% confidence intervals. (Colour figure online)

Fig. 7

Wedge pattern (left), bar pattern with the segments arranged orthogonally to the imaginary circular path (centre), and ring-bar pattern (right) stimuli. Bar patterns can be created either from wedge patterns by removing figurality (global orientation information consistent with a figure/shape) through removal of the inner section of the circle (i.e., shortening the segments) or by symmetrically segmenting radial-frequency patterns such as those used by Wilson and Wilkinson (2002). Ring-bar patterns contain local orientation information embedded within a circular outline, making them more figural. Both bar and ring-bar patterns can be made of segments that are either collinear, orthogonal, or random to the imaginary circular contour path. They could be useful in future research investigating the interaction between position, orientation, length, and colour in symmetry perception. (Colour figure online)
