. 2022 Dec 16;3(4):101681.
doi: 10.1016/j.xpro.2022.101681. Epub 2022 Sep 28.

Protocol for high-throughput reservoir quantification across global HIV subtypes using a cross-subtype intact proviral DNA assay

Carolyn S Fish  1 , Noah A J Cassidy  1 , Claire N Levy  2 , Sean M Hughes  2 , Keith R Jerome  3 , Julie Overbaugh  1 , Florian Hladik  4 , Dara A Lehman  5
Affiliations

Protocol for high-throughput reservoir quantification across global HIV subtypes using a cross-subtype intact proviral DNA assay

Carolyn S Fish et al. STAR Protoc. .

Abstract

The cross-subtype intact proviral DNA assay (CS-IPDA) is a high-throughput method to quantify HIV reservoir size in populations infected with any of the dominant global HIV-1 subtypes. Our protocol includes genomic DNA isolation optimized to minimize DNA shearing, a reference droplet digital PCR (ddPCR) assay to quantify T cells and assess DNA shearing, and a multiplex ddPCR targeting three distinct regions across the HIV genome to quantify intact proviruses as an estimate of replication-competent proviruses in the reservoir. For complete details on the use and execution of this protocol, please refer to Cassidy et al. (2022).

Keywords: Genomics; High throughput screening; Microbiology; Molecular biology.

PubMed Disclaimer

Conflict of interest statement

Declaration of interests The authors declare no competing interests.

Figures

None

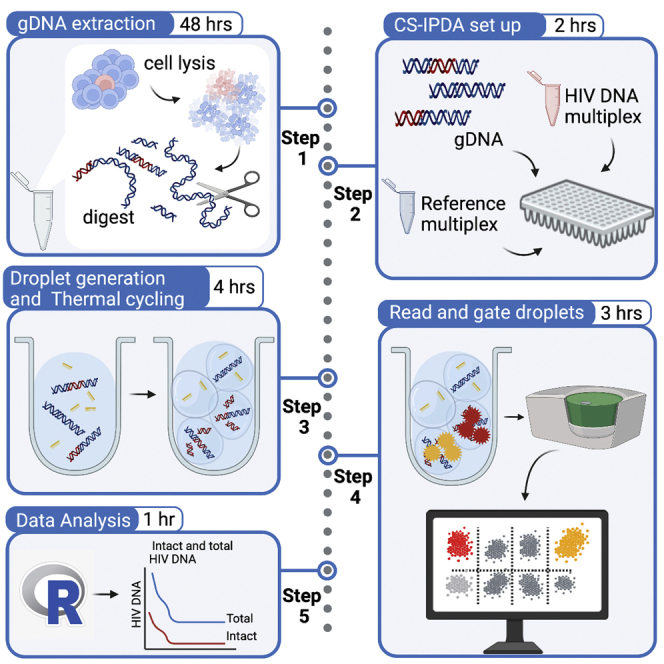

Graphical abstract
Figure 1
Figure 1

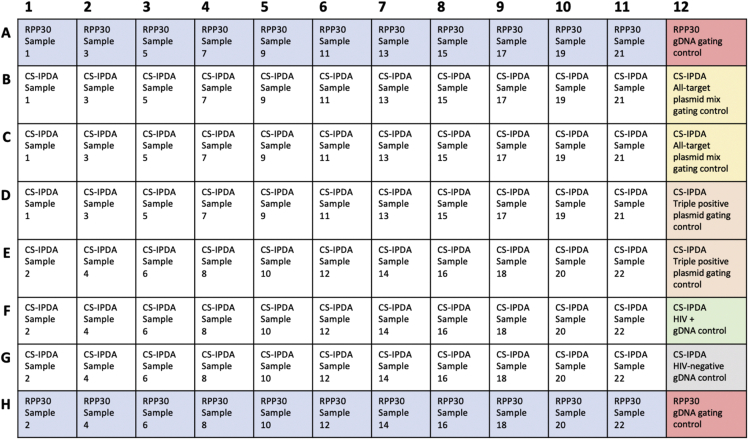

Example plate layout for performing CS-IPDA and RPP30/deltaD reference assay in a single 96-well experiment RPP30/deltaD reference assay reactions are completed in singlet (blue). CS-IPDA reactions are completed in triplicate (white). Experimental controls include all-target plasmid mix gating control (yellow), triple positive plasmid gating control (orange), HIV-positive control, such as J-lat 5A8 or 8.4 gDNA (green), HIV-negative gDNA control (gray), and RPP30 gDNA gating control, such as HIV-negative PBMCs or J-lat 5A8 or 8.4 gDNA (red).
Figure 2
Figure 2
Example of ddPCR data analysis using QuantaSoft Analysis Pro software (A) RPP30/deltaD reference assay wells are gated using extracted gDNA from provirus-containing cells mixed with HIV-negative PBMCs as a reference. Assay probe targets for each cluster are indicated by text. (B) RPP30/deltaD gating thresholds determined by the control are applied to a clinical sample. Assay probe targets for each cluster are indicated by text. (C) CS-IPDA gating thresholds are determined using a mixture of plasmids containing all targets. (D) CS-IPDA gating thresholds applied to gDNA extracted from provirus containing cells (approximately 200 HIV DNA copies/reaction). Assay probe targets for each cluster are indicated by text. See also Methods video S1.
See this image and copyright information in PMC

References

    1. Cassidy N.A.J., Fish C.S., Levy C.N., Roychoudhury P., Reeves D.B., Hughes S.M., Schiffer J.T., Benki-Nugent S., John-Stewart G., Wamalwa D., et al. HIV reservoir quantification using cross-subtype multiplex ddPCR. iScience. 2022;25:103615. - PMC - PubMed
    1. Chan J.K., Bhattacharyya D., Lassen K.G., Ruelas D., Greene W.C. Calcium/calcineurin synergizes with prostratin to promote NF-kappaB dependent activation of latent HIV. PLoS One. 2013;8:e77749. - PMC - PubMed
    1. Green M.R., Sambrook J. Precipitation of DNA with ethanol. Cold Spring Harb. Protoc. 2012;2012:21–25. - PubMed
    1. Hughes S.M. Plater: read, tidy, and display data from microtiter plates. J. Open Source Softw. 2016;1:106. doi: 10.21105/joss.00106. - DOI
    1. Lai R. The Comprehensive R Archive Network; 2020. Arrangements: Fast Generators and Iterators for Permutations, Combinations, Integer Partitions and Compositions. R Package Version 1.1.9.
