Emerging unprecedented lake ice loss in climate change projections

Abstract

Seasonal ice in lakes plays an important role for local communities and lake ecosystems. Here we use Large Ensemble simulations conducted with the Community Earth System Model version 2, which includes a lake simulator, to quantify the response of lake ice to greenhouse warming and to determine emergence patterns of anthropogenic lake ice loss. Our model simulations show that the average duration of ice coverage and maximum ice thickness are projected to decrease over the next 80 years by 38 days and 0.23 m, respectively. In the Canadian Arctic, lake ice loss is accelerated by the cold-season polar amplification. Lake ice on the Tibetan Plateau decreases rapidly due to a combination of strong insolation forcing and ice-albedo feedbacks. Comparing the anthropogenic signal with natural variability represented by the Large Ensemble, we find that lake ecosystems in these regions may be exposed to no-analogue ice coverage within the next 4-5 decades.

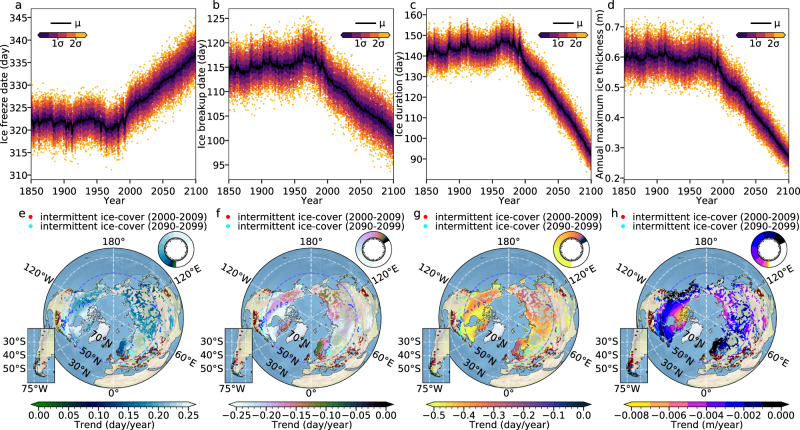

Fig. 1. Projections of lake ice phenology and thickness.

Timeseries of lake-area weighted global mean ice freeze date (a), ice breakup date (b), duration of ice cover (c), and maximum ice thickness (d) in each year in the CESM2-LE simulations. Black lines represent the 90-member ensemble mean (μ). Shaded bands indicate the standard deviations (σ) across ensemble members (circles). The y axes in (a) and (b) represent the day of the year. e–g are the patterns of the temporal trends of the ensemble mean for ice freeze date, ice breakup date, and ice duration during 2000–2100, respectively. Intermittent frozen lakes (defined as at least one winter without ice within 10 years) are represented by red points (2000–2009) and cyan points (2090–2099). Lakes without ice coverage for the period 2000–2009 and lakes in Antarctica and Greenland are not shown in the plot. h Trends of the ensemble mean of maximum lake ice thickness over 2000–2100. Pie charts in (e), (f), (g), and (h) show the spatial percentage of lake surface area corresponding to the values indicated by the color bar. The total extent of the pie charts represents the global lake area (excluding the Antarctic and the Greenland lakes).

Fig. 2. Forced versus natural variability in lake ice.

a Scatter plot of annual mean air temperature anomaly against ice duration anomaly for individual lakes over the period 1950–2100 (anomalies are calculated relative to the 2000–2020 reference period). The simulation year is represented by dot color. A sample of 100,000 data points presented in this chart is chosen randomly from the total sample of 42,525,000 data points of ice-covered lakes and 90 ensemble members. The marginal plots on the right and top sides are normalized histograms of ice duration and annual mean air temperature, respectively. Contour lines covering scattered points represent a kernel density estimate of the joint probability density distribution of ice duration and air temperature. The darker the contour, the higher the probability density. b Same scatter plot as (a), except for the observed ice duration data obtained from the Global Lake and River Ice Phenology dataset and surface air temperature taken from the CRUTEM4 dataset. All lake ice observations used here cover at least 20 years since 1950. The inserted scatter plot shows the temporal least-squares regression slopes (P value <0.1) of individual lakes between the annual mean surface air temperature and ice duration. The y axis is the slope in the observations (275 records) and the x axis is the slope in the model for the nearby lakes and same period. Cyan points represent value of one ensemble member, and solid blue points represent the ensemble mean. Lines and shaded bands represent the regression line and 95% confidence interval of the least-squared regression between the observation and the model. Blue line indicates the linear regression of the ensemble mean. The blue histogram represents the distribution of slopes in the model. The orange histogram is for the observations. The average of slopes is denoted by the vertical dashed line. c Same scatter plot as (a), but the y axis is replaced by the anomaly of the annual maximum ice thickness. d The linear trends of ensemble means of annual mean land surface air temperature during 2000–2100. The cyan points denote lakes with ice duration loss trend over 0.45 days per year.

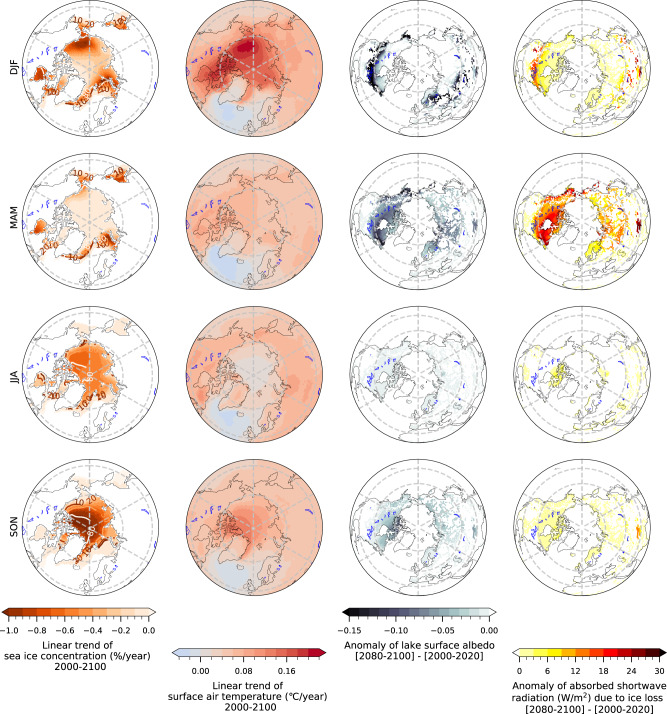

Fig. 3. Drivers of lake ice loss.

Seasonal linear trend of Arctic sea-ice concentration (first left column, unit: %/year) and surface air temperature changes (second column, unit: °C/year) in 2000–2100. Changes (climatological mean of 2080–2100 minus climatological mean of 2000–2020) of lake surface albedo (third column) and absorbed shortwave radiation (fourth column, unit: W/m²) by the lake due to ice loss. All analyses are performed on the ensemble mean fields. DJF, MAM, JJA, and SON denote the seasonal means from December to February, March to May, June to August, and September to November, respectively. This analysis is based on the full set of 60 ensemble members for which appropriate output is available (see “Methods”).

Fig. 4. Main drivers of projected lake ice changes.

Average of monthly linear trend of surface air temperature, anomaly of lake surface albedo, and anomaly of absorbed shortwave radiation due to ice loss in the Arctic and Subarctic (a) and in the Tibetan Plateau (b), respectively. The violin diagram illustrates the kernel probability density of ensemble members, and the solid line represents the ensemble mean. c Schematic of thermodynamic drivers of future lake ice decline. Blue-red arrows represent net surface heat fluxes. Red shading in the Arctic Ocean, Hudson Bay and in lakes indicates autumn and winter-time heat storage. Dark (light) red shading over land indicates intensified (weaker) warming due to polar amplification processes. Lakes in the Canadian Arctic are influenced strongly by sea-ice retreat and winter-time warming over the Arctic Ocean and the Hudson Bay. Rapid lake ice retreat over the Tibetan Plateau is amplified by a very large bi-seasonal lake ice-albedo feedback due to high incoming solar radiation. The background map is highly idealized.

Fig. 5. Emergence of no-analog lake ice conditions.

a Timeseries of ice duration at a specific lake point (47.6°N, 86.2°W). Each blue dot represents the ice duration of individual ensemble members. The red solid line indicates the ensemble mean of ice duration. The orange histogram shows the probability distribution of the ice duration during 1850–1950. The two green horizontal lines represent two standard deviations around the mean. The difference between the two lines is interpreted as the natural habitat variability range. The left boundary of gray box represents the emergence year (t₀) of the anthropogenic signal when ice duration starts to deviate from the range of natural variability (defined as the first year when μ − 2σ (the ensemble mean minus two standard deviations) crossing the lower limit of the natural variability range, i.e., the lower green line, with at least five consecutive years). The right boundary of the gray box is the year (t₁) when ice duration completely deviates from the natural variability range (defined as the first year when μ + 2σ crossing the lower limit of the natural variability range). The width of the gray box represents the maximum adaptation time (t₁–t₀) for species to adapt to no-analog lake ice conditions in terms of ice duration. b Spatial distribution of the year when ice duration starts to deviate from the range of natural variability. Values in the brackets of the color scale are the global mean surface air temperature anomalies of the corresponding years relative to the climatological mean of 1850–1950. The relationship between time and global mean temperature anomaly is illustrated in Supplementary Fig. S6. c Spatial distribution of the year when ice duration completely deviates from the range of natural variability, that is, the emergence year of no-analog lake ice habitat. Values in the brackets are also the global mean surface air temperature anomalies as in (b). d Spatial distribution of transition time for species to adapt to the new habitat (or migrate poleward, if possible).
