Does quality of novice hand-tied square knots improve with repetition during a single training session?

Abstract

Background: Knot tying is a key surgical skill for novices, and repetition over several training sessions improves knot tying. This study examined the effects of repetition within a single training session on quality of knotted loops and compared results of novice trainees and experienced surgeons.

Methods: Using 0.55 mm nylon monofilament fishing line, novices and surgeons each hand-tied 20 knotted loops, using a 2=1=1=1 configuration (surgeon's throw and three square throws). Loops were mechanically tested with a single load to failure.

Results: All loops tolerated five newtons (N) preload. More than 70% of novice and surgeon knots failed by slipping or untying, and 8.8% of novice knots and 2.5% of surgeon's knots were considered dangerous. Surgeons' loops had less extension at preload, indicating better loop security. However, during single test to failure, there was no difference in mean extension or maximum load between surgeons and novices. There was no significant difference in results of mechanical testing or modes of failure for the first and last ten knotted loops, or the first, second, third, and fourth sets of knotted loops.

Discussion: With appropriate training, novices can construct knots as strong and secure as experienced surgeons. A large percentage of knotted loops are insecure under testing conditions; extra throws may be required when using large diameter monofilament nylon. Novices may require extra training in maintenance of loop security when constructing square knots. Tying more than five or 10 knotted loops within a single training session does not provide added benefits for novices.

Keywords: Knot failure; Knot security; Knot tying; Mechanical testing; Mode of failure; Repetition; Square knot; Surgical learning; Surgical training.

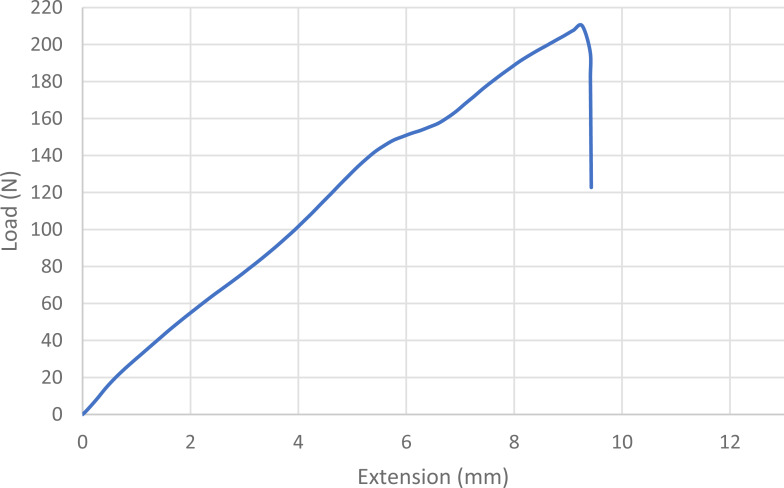

Figure 1. Load-displacement curve for a loop that broke at the knot.

The blue line indicates the load displacement curve for a single knotted loop that broke at the knot. Note the gradual steady increase in load with extension until the sudden drop-off at the moment of breakage.

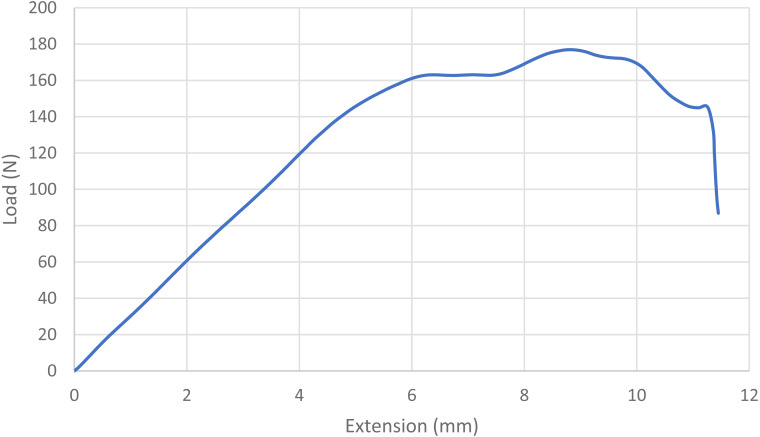

Figure 2. Load-displacement curve for a loop that slipped and then broke at the knot.

The blue line indicates the load displacement curve for a single knotted loop that slipped before breaking at the knot. Note the gradual steady increase in load with extension, a plateauing of load with further extension, then a slight increase in load before the sudden drop-off at the moment of breakage.

Figure 3. Load-displacement curve for a loop that slipped.

The blue line indicates the load displacement curve for a single knotted loop that slipped without breaking. Note the gradual steady increase in load with extension, a plateauing of load with further extension, then a slight increase and then decrease as further extension is applied. The knots in this loop eventually came apart as one suture end slipped over the other, resulting in the sudden, rapid decrease in load.

Figure 4. Load-displacement curve for a loop that untied.

The blue line indicates the load displacement curve for a single knotted loop that untied without breaking. Note the gradual steady increase in load with extension, a plateauing of load with further extension, then a gradual decrease in load with further extension until the knots all untie.
