An ensemble n-sub-epidemic modeling framework for short-term forecasting epidemic trajectories: Application to the COVID-19 pandemic in the USA

Abstract

We analyze an ensemble of n-sub-epidemic modeling for forecasting the trajectory of epidemics and pandemics. These ensemble modeling approaches, and models that integrate sub-epidemics to capture complex temporal dynamics, have demonstrated powerful forecasting capability. This modeling framework can characterize complex epidemic patterns, including plateaus, epidemic resurgences, and epidemic waves characterized by multiple peaks of different sizes. We systematically assess their calibration and short-term forecasting performance in short-term forecasts for the COVID-19 pandemic in the USA from late April 2020 to late February 2022. We compare their performance with two commonly used statistical ARIMA models. The best fit sub-epidemic model and three ensemble models constructed using the top-ranking sub-epidemic models consistently outperformed the ARIMA models in terms of the weighted interval score (WIS) and the coverage of the 95% prediction interval across the 10-, 20-, and 30-day short-term forecasts. In our 30-day forecasts, the average WIS ranged from 377.6 to 421.3 for the sub-epidemic models, whereas it ranged from 439.29 to 767.05 for the ARIMA models. Across 98 short-term forecasts, the ensemble model incorporating the top four ranking sub-epidemic models (Ensemble(4)) outperformed the (log) ARIMA model 66.3% of the time, and the ARIMA model, 69.4% of the time in 30-day ahead forecasts in terms of the WIS. Ensemble(4) consistently yielded the best performance in terms of the metrics that account for the uncertainty of the predictions. This framework can be readily applied to investigate the spread of epidemics and pandemics beyond COVID-19, as well as other dynamic growth processes found in nature and society that would benefit from short-term predictions.

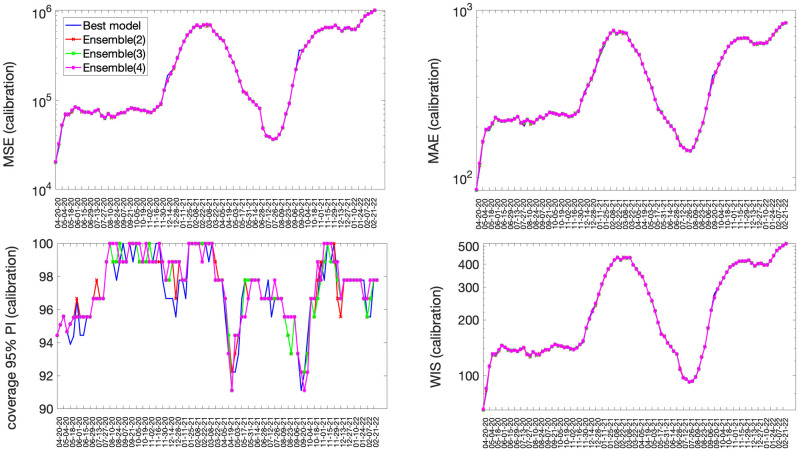

Fig 1. Performance metrics quantifying the quality of the sub-epidemic model fits to 98 sequential weekly calibration periods of the daily time series of COVID-19 deaths in the USA from 20-April-2020 through 22-February 2022.

The best fit sub-epidemic model and three ensemble models constructed using the top-ranking sub-epidemic models (Ensemble(2), Ensemble(3), Ensemble(4)) yielded similar quality fits.

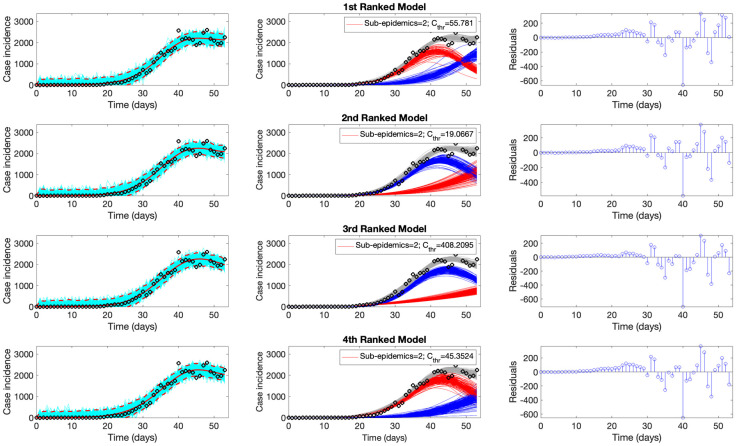

Fig 2. Representative fits of the top-ranking sub-epidemic models to the daily curve of COVID-19 deaths in the USA from 27-Feb-2020 to 20-April-2020.

The sub-epidemic models capture well the entire epidemic curve, including the latter plateau dynamics, by considering models with two sub-epidemics. The best model fit (solid red line) and 95% prediction interval (dashed red lines) are shown in the left panels. The cyan curves correspond to the associated uncertainty from individual bootstrapped curves. The sub-epidemic profiles are shown in the center panels, where the red and blue curves represent the two sub-epidemics, and the grey curves are the estimated epidemic trajectories. For each model fit, the residuals are also shown (right panels). Black circles correspond to the data points.

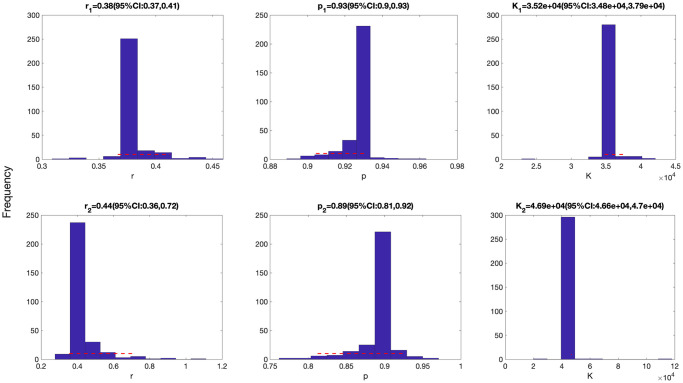

Fig 3. Parameter estimates for the first (top panel) and the second sub-epidemics (bottom panels) were derived for the top-ranking sub-epidemic model after fitting the sub-epidemic modeling framework to the daily curve of COVID-19 deaths in the USA from 27-Feb-2020 to 20-April-2020 (see also Fig 1).

Parameter estimates for both sub-epidemics are well identified, as indicated by their relatively narrow bootstrap confidence intervals.

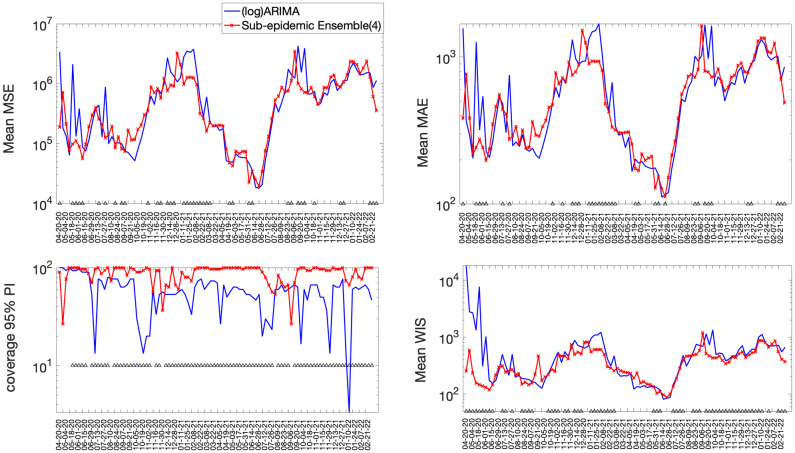

Fig 4. Forecasting performance metrics for the (log) ARIMA and Ensemble(4) models across 98 30-day forecasts.

The symbol (^) indicates weekly forecasts where the Ensemble(4) model outperformed the (log) ARIMA model. For example, the Ensemble(4) outperformed the (log) ARIMA model 66.3% of the time in terms of the WIS and 89.8% of the time in terms of the coverage rate of the 95% PI (Figs 3 and 5).

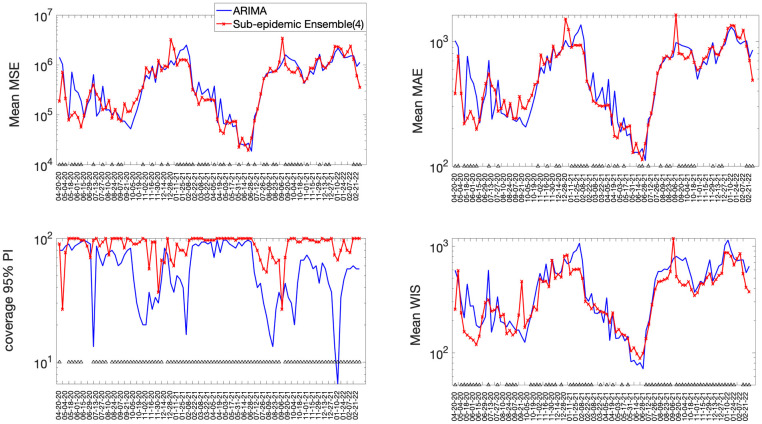

Fig 5. Forecasting performance metrics for the ARIMA and Ensemble(4) models across 98 30-day forecasts.

The symbol (^) indicates weekly forecasts where the Ensemble(4) model outperforms the ARIMA model. For instance, the Ensemble(4) outperformed the ARIMA model 69.4% of the time in terms of the WIS and 91.8.8% of the time in terms of the coverage rate of the 95% PI (Figs 3 and 5).

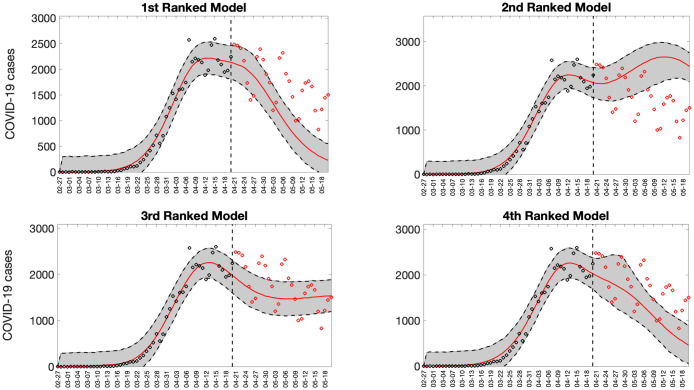

Fig 6. Representative 30-day forecasts of the top-ranking sub-epidemic models to the daily curve of COVID-19 deaths in the USA from 20-April-2020 to 20-May-2020.

The model fit (solid line) and 95% prediction interval (shaded area) are also shown. The vertical line indicates the start time of the forecast. Circles correspond to the data points. These four top-ranking models support forecasts with diverging trajectories even though they yield similar fits to the calibration period. For instance, the 1^st ranked sub-epidemic model predicts a decline in the mortality curve, whereas the 2^nd ranked model predicts a stable pattern during the next 30 days.

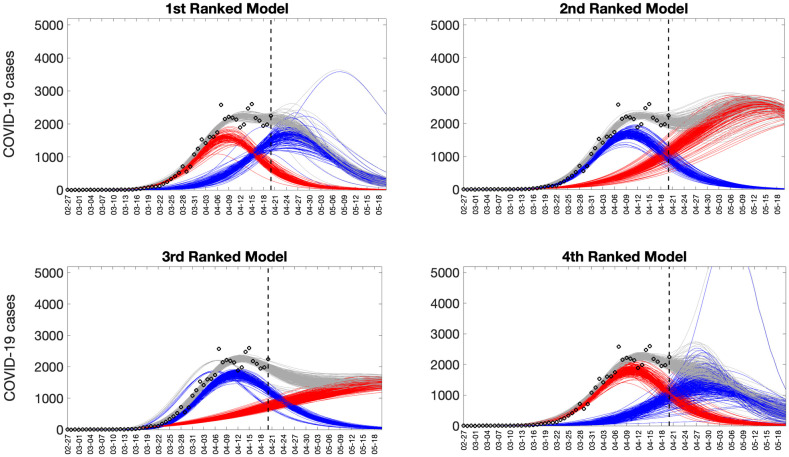

Fig 7. Representative sub-epidemic profiles of the forecasts derived from the top-ranking sub-epidemic models to the daily curve of COVID-19 deaths in the USA from 20-April-2020 to 20-May-2022.

The model fit (solid line) and 95% prediction interval (shaded area) are also shown. Black circles correspond to the calibration data. Blue and red curves represent different sub-epidemics of the epidemic wave profile. Gray curves correspond to the overall epidemic trajectory obtained by aggregating the sub-epidemic curves. The vertical line indicates the start time of the forecast.

Fig 8. Representative sub-epidemic ensemble model forecasts (Ensemble(2), Ensemble(3), Ensemble(4)) of COVID-19 deaths in the USA from 20-April-2020 to 20-May-2022.

Circles correspond to the data points. The model fits (solid line), and 95% prediction intervals (shaded area) are shown. Circles correspond to the data points. The vertical line indicates the start time of the forecast.

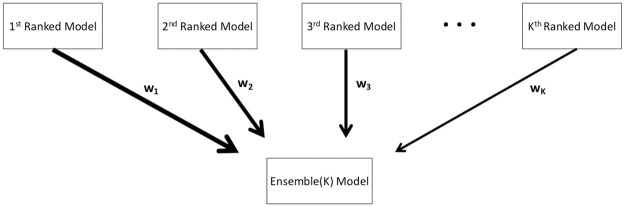

Fig 9. Schematic diagram of the construction of the ensemble model from the weighted combination of the highest-ranking sub-epidemic models as deemed by the AICci for the i-th model where AICc1≤⋯≤AICcI and i = 1, …, I.

An ensemble derived from the top-ranking I models is denoted by Ensemble(I).
