Automated clinical coding: what, why, and where we are?

Abstract

Clinical coding is the task of transforming medical information in a patient's health records into structured codes so that they can be used for statistical analysis. This is a cognitive and time-consuming task that follows a standard process in order to achieve a high level of consistency. Clinical coding could potentially be supported by an automated system to improve the efficiency and accuracy of the process. We introduce the idea of automated clinical coding and summarise its challenges from the perspective of Artificial Intelligence (AI) and Natural Language Processing (NLP), based on the literature, our project experience over the past two and half years (late 2019-early 2022), and discussions with clinical coding experts in Scotland and the UK. Our research reveals the gaps between the current deep learning-based approach applied to clinical coding and the need for explainability and consistency in real-world practice. Knowledge-based methods that represent and reason the standard, explainable process of a task may need to be incorporated into deep learning-based methods for clinical coding. Automated clinical coding is a promising task for AI, despite the technical and organisational challenges. Coders are needed to be involved in the development process. There is much to achieve to develop and deploy an AI-based automated system to support coding in the next five years and beyond.

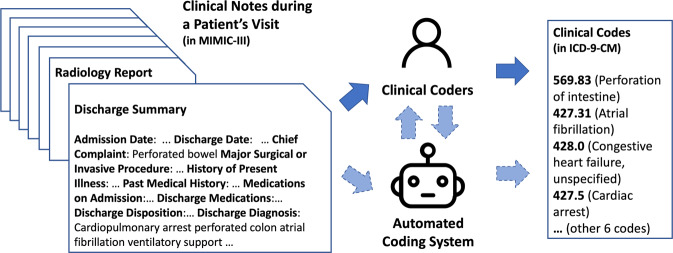

Fig. 1. An example of clinical coding, manual and automated (linked with solid and dashed arrows, respectively), with ICD-9-CM codes from a clinical note in the MIMIC-III data set of ICU patients in 2001–2012 in a hospital in the US.

Dashed arrows between clinical coders and the automated coding system suggest potential interactions between them, while this is yet to be considered in many clinical coding systems. Note that the format of data and clinical codes does not reflect the situation of other regions in the world—for example, in the UK, where data may be less structured and there is no universal discharge summary format available.
