A novel infrasound and audible machine-learning approach to the diagnosis of COVID-19

Abstract

Background: The coronavirus disease 2019 (COVID-19) outbreak has rapidly spread around the world, causing a global public health and economic crisis. A critical limitation in detecting COVID-19-related pneumonia is that it is often manifested as a "silent pneumonia", i.e. pulmonary auscultation that sounds "normal" using a standard stethoscope. Chest computed tomography is the gold standard for detecting COVID-19 pneumonia; however, radiation exposure, availability and cost preclude its utilisation as a screening tool for COVID-19 pneumonia. In this study we hypothesised that COVID-19 pneumonia, "silent" to the human ear using a standard stethoscope, is detectable using a full-spectrum auscultation device that contains a machine-learning analysis.

Methods: Lung sound signals were acquired, using a novel full-spectrum (3-2000 Hz) stethoscope, from 164 COVID-19 pneumonia patients, 61 non-COVID-19 pneumonia patients and 141 healthy subjects. A machine-learning classifier was constructed and the data were classified into three groups: 1) normal lung sounds, 2) COVID-19 pneumonia and 3) non-COVID-19 pneumonia.

Results: Standard auscultation found that 72% of the non-COVID-19 pneumonia patients had abnormal lung sounds compared with only 25% of the COVID-19 pneumonia patients. The classifier's sensitivity and specificity for the detection of COVID-19 pneumonia were 97% and 93%, respectively, when analysing the sound and infrasound data, and they were reduced to 93% and 80%, respectively, without the infrasound data (p<0.01 difference in receiver operating characteristic curves with and without infrasound).

Conclusions: This study reveals that useful clinical information exists in the infrasound spectrum of COVID-19-related pneumonia and machine-learning analysis applied to the full spectrum of lung sounds is useful in its detection.

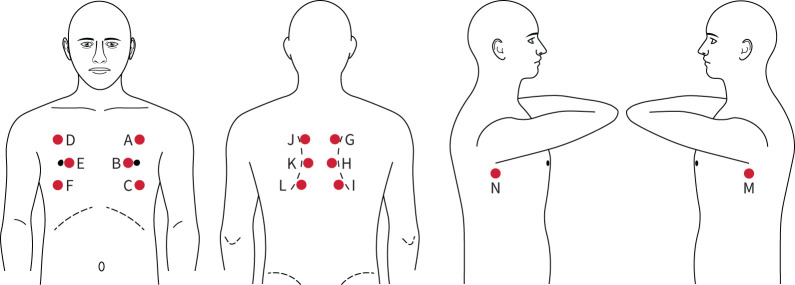

FIGURE 1

A map of the 14 sites (A–N) used for acquiring the acoustic data.

FIGURE 2

Optional cloud connectivity for the VoqX. BT: Bluetooth; EMR: electronic medical record.

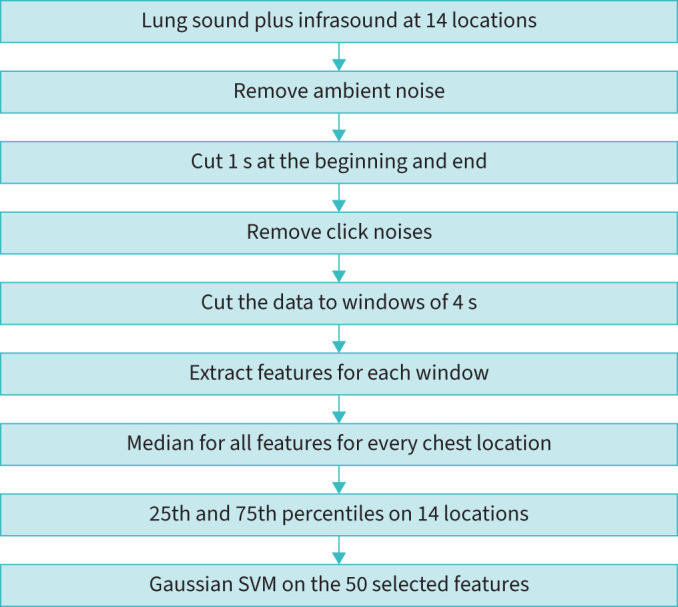

FIGURE 3

Flowchart of the pre-processing and machine-learning algorithm. SVM: support vector machine.

FIGURE 4

Two features (out of 164) that strongly depend on infrasound: Mel-Frequency Cepstrum Coefficient 1 (MFCC1) as a function of magnitude of breathing frequency for COVID-19, normal and non-COVID-19: a) with infrasound and b) no infrasound.

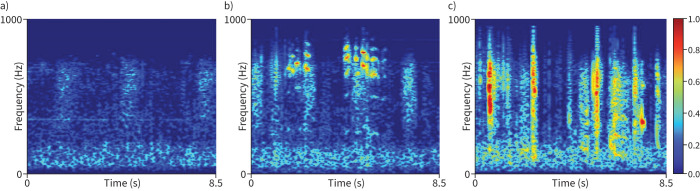

FIGURE 5

Visual sound signatures of the VoqX recorded from: a) a healthy subject, b) a COVID-19 pneumonia patient and c) a patient with non-COVID-19 pneumonia. The colours represent the intensity of breathing sounds (dB full scale).

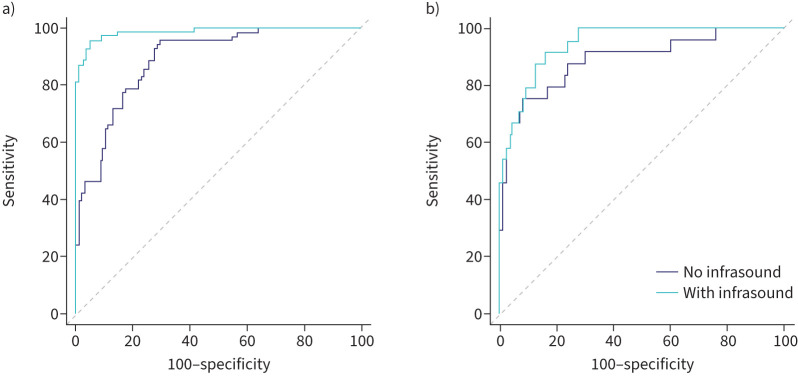

FIGURE 6

Receiver operating characteristic curves after classification with and without infrasound: a) detection of “silent” COVID-19 pneumonia and b) detection of non-COVID-19 pneumonia.
