Review
. 2022 Oct 8;9(10):343.
doi: 10.3390/jcdd9100343.

Comparison of Six Different Percutaneous Coronary Intervention Guidance Modalities

Mengjin Hu  1 , Jiangshan Tan  1 , Yuejin Yang  1
Affiliations
Review

Comparison of Six Different Percutaneous Coronary Intervention Guidance Modalities

Mengjin Hu et al. J Cardiovasc Dev Dis. .

Abstract

Background: New randomized trials and modalities in guiding percutaneous coronary intervention (PCI) have become available.

Objective: We aimed to compare the clinical outcomes of coronary angiography (CAG), intravascular ultrasound (IVUS), optical coherence tomography (OCT), fractional flow reserve (FFR), instantaneous wave-free ratio (iFR), and optical frequency domain imaging (OFDI)-guided PCI.

Methods: A network meta-analysis was performed to compare different PCI guidance modalities. The clinical outcomes included major adverse cardiovascular events (MACE), all-cause death, myocardial infarction (MI), and target vessel/lesion revascularization (TVR/TLR). Odds ratio (OR) and corresponding 95% credible interval (CrI) were calculated.

Results: Thirty-six randomized trials, including 19,042 patients, were included. In comparison with CAG, IVUS significantly reduced MACE (OR: 0.71; 95% CrI: 0.57 to 0.86) and TVR/TLR (OR: 0.53; 95% CrI: 0.43 to 0.66). MACE (OR: 1.44; 95% CrI: 1.02 to 2.08) and TVR/TLR (OR: 1.87; 95% CrI: 1.04 to 3.71) were significantly increased in the FFR group, compared with IVUS group. There were no significant differences in MACE or TVR/TLR among the left guidance modality comparisons. Differences in all-cause death or MI were not observed in any comparisons.

Conclusions: IVUS could reduce MACE and TVR/TLR, compared with CAG or FFR. Therefore, IVUS may be the optimal modality in guiding PCI.

Keywords: coronary angiography; fractional flow reserve; intravascular ultrasound; optical coherence tomography; percutaneous coronary intervention.

PubMed Disclaimer

Conflict of interest statement

All authors declared no conflict of interest.

Figures

Figure 1
Figure 1
PRISMA diagram for study inclusion. CAG: coronary angiography; FFR: fractional flow reserve; iFR: instantaneous wave-free ratio; IVUS: intravascular ultrasound; OCT: optical coherence tomography; OFDI: optical frequency domain imaging.

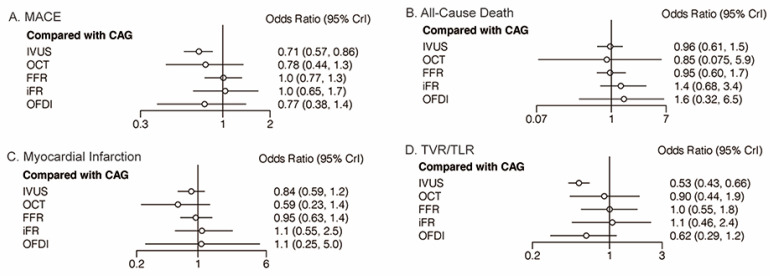

Figure 2
Figure 2
Comparisons of clinical outcomes among guidance modalities included in the network meta-analysis. CAG: coronary angiography; FFR: fractional flow reserve; iFR: instantaneous wave-free ratio; IVUS: intravascular ultrasound; MACE: major adverse cardiovascular events; OCT: optical coherence tomography; OFDI: optical frequency domain imaging; TVR/TLR: target vessel/lesion revascularization. (A) MACE; (B) All-Cause Death; (C) Myocardial Infarction; (D) TVR/TLR.
Figure 3
Figure 3
Rank probability analysis for clinical outcomes among guidance modalities included in the network meta-analysis. CAG: coronary angiography; FFR: fractional flow reserve; iFR: instantaneous wave-free ratio; IVUS: intravascular ultrasound; MACE: major adverse cardiovascular events; OCT: optical coherence tomography; OFDI: optical frequency domain imaging; TVR/TLR: target vessel/lesion revascularization. (A) MACE; (B) All-Cause Death; (C) Myocardial Infarction; (D) TVR/TLR.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Topol E.J., Nissen S.E. Our preoccupation with coronary luminology. The dissociation between clinical and angiographic findings in ischemic heart disease. Circulation. 1995;92:2333–2342. doi: 10.1161/01.CIR.92.8.2333. - DOI - PubMed
    1. Mintz G.S. Clinical utility of intravascular imaging and physiology in coronary artery disease. J. Am. Coll. Cardiol. 2014;64:207–222. doi: 10.1016/j.jacc.2014.01.015. - DOI - PubMed
    1. Götberg M., Christiansen E.H., Gudmundsdottir I.J., Sandhall L., Danielewicz M., Jakobsen L., Olsson S.-E., Öhagen P., Olsson H., Omerovic E., et al. Instantaneous Wave-free Ratio versus Fractional Flow Reserve to Guide PCI. N. Engl. J. Med. 2017;376:1813–1823. doi: 10.1056/NEJMoa1616540. - DOI - PubMed
    1. Onuma Y., Kogame N., Sotomi Y., Miyazaki Y., Asano T., Takahashi K., Kawashima H., Ono M., Katagiri Y., Kyono H., et al. A Randomized Trial Evaluating Online 3-Dimensional Optical Frequency Domain Imaging-Guided Percutaneous Coronary Intervention in Bifurcation Lesions. Circ. Cardiovasc. Interv. 2020;13:e009183. doi: 10.1161/CIRCINTERVENTIONS.120.009183. - DOI - PMC - PubMed
    1. Hutton B., Salanti G., Caldwell D.M., Chaimani A., Schmid C.H., Cameron C., Ioannidis J.P.A., Straus S., Thorlund K., Jansen J.P., et al. The PRISMA extension statement for reporting of systematic reviews incorporating network meta-analyses of health care interventions: Checklist and explanations. Ann. Intern. Med. 2015;162:777–784. doi: 10.7326/M14-2385. - DOI - PubMed
