Augmented Reality Surgical Navigation System for External Ventricular Drain

Shin-Yan Chiou  1   2   3 , Zhi-Yue Zhang  1 , Hao-Li Liu  4 , Jiun-Lin Yan  3 , Kuo-Chen Wei  5 , Pin-Yuan Chen  3   6
Affiliations

Augmented Reality Surgical Navigation System for External Ventricular Drain

Shin-Yan Chiou et al. Healthcare (Basel). .

Abstract

Augmented reality surgery systems are playing an increasing role in the operating room, but applying such systems to neurosurgery presents particular challenges. In addition to using augmented reality technology to display the position of the surgical target position in 3D in real time, the application must also display the scalpel entry point and scalpel orientation, with accurate superposition on the patient. To improve the intuitiveness, efficiency, and accuracy of extra-ventricular drain surgery, this paper proposes an augmented reality surgical navigation system which accurately superimposes the surgical target position, scalpel entry point, and scalpel direction on a patient's head and displays this data on a tablet. The accuracy of the optical measurement system (NDI Polaris Vicra) was first independently tested, and then complemented by the design of functions to help the surgeon quickly identify the surgical target position and determine the preferred entry point. A tablet PC was used to display the superimposed images of the surgical target, entry point, and scalpel on top of the patient, allowing for correct scalpel orientation. Digital imaging and communications in medicine (DICOM) results for the patient's computed tomography were used to create a phantom and its associated AR model. This model was then imported into the application, which was then executed on the tablet. In the preoperative phase, the technician first spent 5-7 min to superimpose the virtual image of the head and the scalpel. The surgeon then took 2 min to identify the intended target position and entry point position on the tablet, which then dynamically displayed the superimposed image of the head, target position, entry point position, and scalpel (including the scalpel tip and scalpel orientation). Multiple experiments were successfully conducted on the phantom, along with six practical trials of clinical neurosurgical EVD. In the 2D-plane-superposition model, the optical measurement system (NDI Polaris Vicra) provided highly accurate visualization (2.01 ± 1.12 mm). In hospital-based clinical trials, the average technician preparation time was 6 min, while the surgeon required an average of 3.5 min to set the target and entry-point positions and accurately overlay the orientation with an NDI surgical stick. In the preparation phase, the average time required for the DICOM-formatted image processing and program import was 120 ± 30 min. The accuracy of the designed augmented reality optical surgical navigation system met clinical requirements, and can provide a visual and intuitive guide for neurosurgeons. The surgeon can use the tablet application to obtain real-time DICOM-formatted images of the patient, change the position of the surgical entry point, and instantly obtain an updated surgical path and surgical angle. The proposed design can be used as the basis for various augmented reality brain surgery navigation systems in the future.

Keywords: augmented reality; neurosurgery; surgical navigation.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
The architecture diagram.
Figure 2
Figure 2
4-marker scalpel model and AR scalp model and markers. (A) 4-marker scalpel model. (B) AR scalp model and markers.
Figure 3
Figure 3

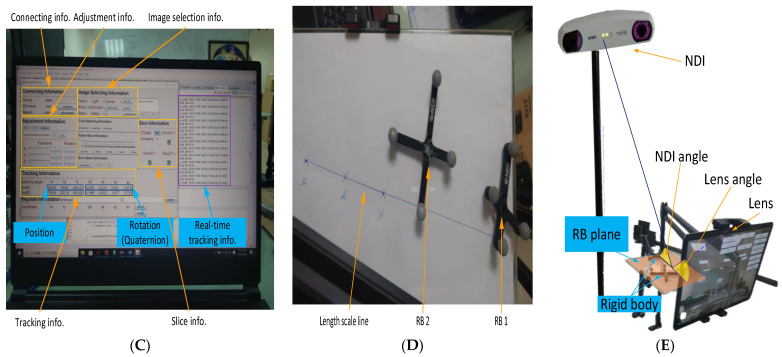

AR superimposition accuracy test. (A) Overall hardware implementation. (B) Tablet display. (C) Server interface. (D) Different placement of RBs. (E) NDI and lens angles.
Figure 3
Figure 3
AR superimposition accuracy test. (A) Overall hardware implementation. (B) Tablet display. (C) Server interface. (D) Different placement of RBs. (E) NDI and lens angles.
Figure 4
Figure 4

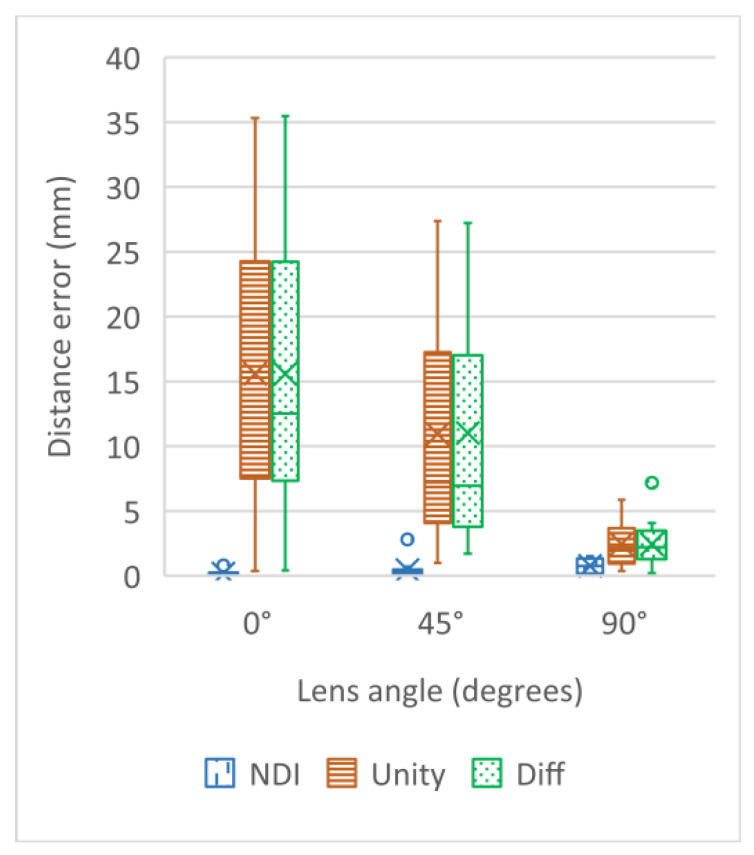

Mean and standard deviation of distance error (mm).
Figure 5
Figure 5
Laboratory simulated clinical trials.
Figure 6
Figure 6

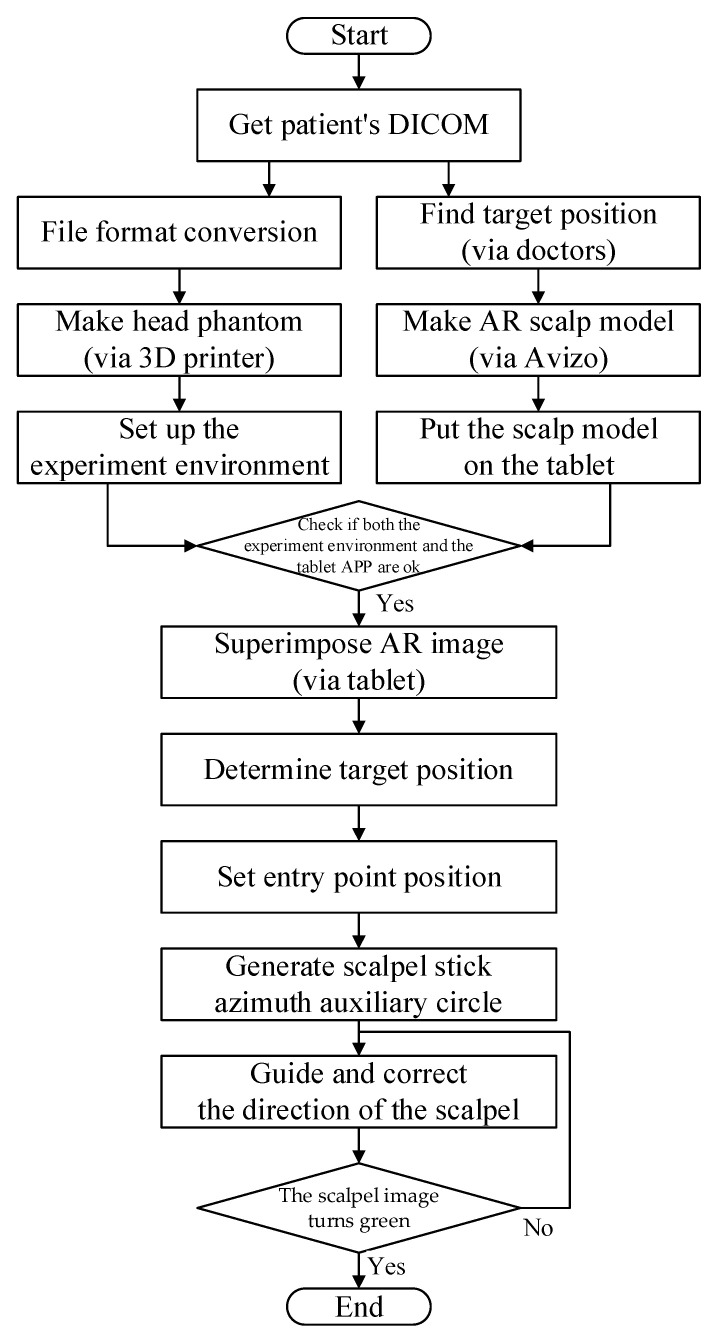

Laboratory simulation flow chart.
Figure 7
Figure 7
Patient-specific head phantom. (A) Head phantom with the ventricle. (B) Head phantom of combined appearance.
Figure 8
Figure 8
Clinical system architecture and tablet close-up. (A) Overall structure. (B) Tablet close-up.
Figure 9
Figure 9
AR scalpel superimposition. (A) Superimposed 4-marker images and scalpel stick. (B) Superimposed AR head model and guide scalpel stick.
Figure 10
Figure 10
Manually identify the target position.
Figure 11
Figure 11
Find and set target position.
Figure 12
Figure 12
Entry point position setting.
Figure 13
Figure 13

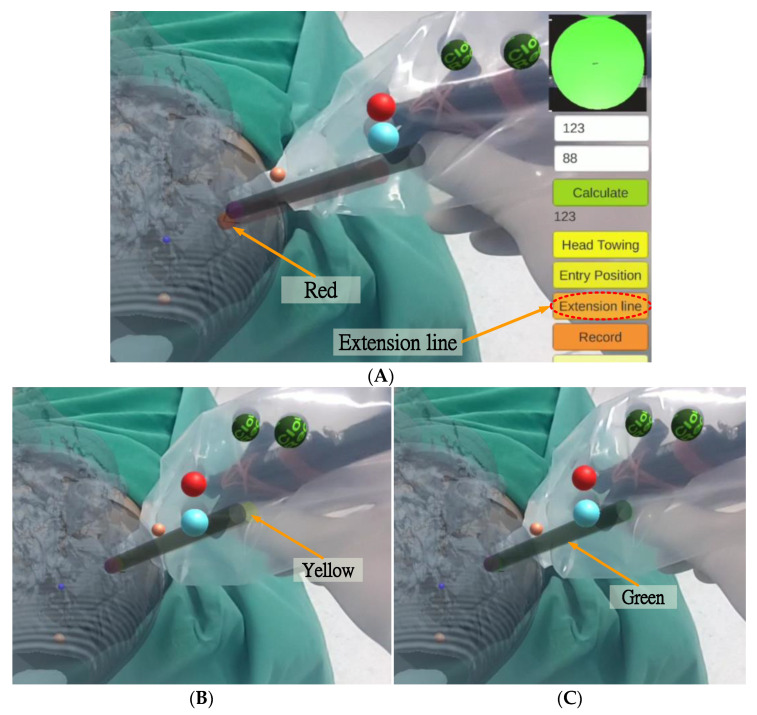

Extension line and three-color scalpel stick. (A) Extension line and red scalpel stick. (B) Yellow scalpel stick. (C) Green scalpel stick.
