. 2022 Oct 17;15(20):7224.
doi: 10.3390/ma15207224.

Innovative Passive and Environmentally Friendly System for Improving the Energy Performance of Buildings

Andrei Burlacu  1 , Gavril Sosoi  1 , Chérifa Abid  2 , Marinela Barbuta  1 , Marina Verdes  1 , Robert Stefan Vizitiu  1 , Marius Branoaea  1
Affiliations

Innovative Passive and Environmentally Friendly System for Improving the Energy Performance of Buildings

Andrei Burlacu et al. Materials (Basel). .

Abstract

The aim of the study is to develop a system for converting, accumulating, and delivering solar energy that is based on the development of an innovative solar panel with heat pipes and a heat storage wall, for the construction of passive structures. The novel aspect of this experiment is the utilization of concrete walls that have different recyclable materials added to their structure in various proportions. The solar energy from the sunny façades is transformed by this system into thermal energy, which is then transferred by integrated heat pipes in a massive element with high thermal inertia. Using insulated shutters, thermal energy can be stored during the day and released at night to keep the room at a comfortable temperature. In order to integrate the modules into the solar recovery system, four concrete samples were cast with a blend of standard and waste aggregates. Four heat fluxes of 100 W/m2, 150 W/m2, 200 W/m2, and 250 W/m2 were applied to each global system. Thermal imaging data and numerical simulations both supported the findings of temperature sensors. The most effective mixture, fly ash and chopped PET, delivered temperatures that were, on average, 3.3% higher at the end of the charging cycle than those measured for the control sample. The discharging cycle of the concrete block with fly ash and sawdust was the most effective, with an average temperature loss of 5.0 °C as compared to 5.5 °C for the control sample, on average.

Keywords: energy efficiency; heat pipes; passive system; solar heat flux.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1
The experimental setup of the global system.
Figure 2
Figure 2
Experimental setup and thermocouples position.
Figure 3
Figure 3
The 3D design of the global system.
Figure 4
Figure 4
Temperature variation recorded by the sensors for concrete sample CW01.
Figure 5
Figure 5
Temperature variation recorded by the sensors for concrete sample CW02.
Figure 6
Figure 6
Temperature variation recorded by the sensors for concrete sample CW03.
Figure 7
Figure 7
Temperature variation recorded by the sensors for concrete sample CW04.
Figure 8
Figure 8
Heat gain of the wall.
Figure 9
Figure 9
Infrared camera photos for CW02.
Figure 10
Figure 10
The global system imported in the simulation environment: (a) the global system inside the air volume; (b) meshing of the global system.
Figure 11
Figure 11
Numerical simulation for CW02—100 W/m2.
Figure 12
Figure 12

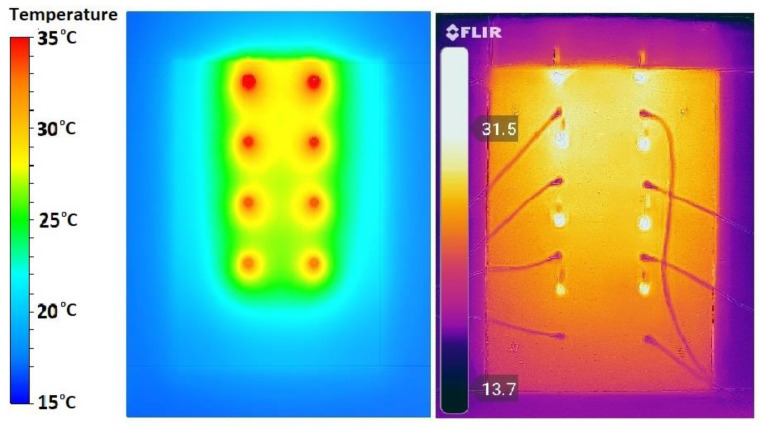

Comparison between simulation and infrared camera for CW03—250 W/m2.
