Experience of virtual commissioning of a process control system for the production of high-paraffin oil

Yury V Ilyushin  1 , Vadim Fetisov  2
Affiliations

Experience of virtual commissioning of a process control system for the production of high-paraffin oil

Yury V Ilyushin et al. Sci Rep. .

Abstract

This work describes the experience in developing and testing software for oil industry automation control systems based on the simulation of technological processes and control systems combined in virtual reality, this approach is called virtual commissioning and is widely used in the world both to create automated process control systems and to simulate interactions between different systems.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing interests.

Figures

Figure 1
Figure 1

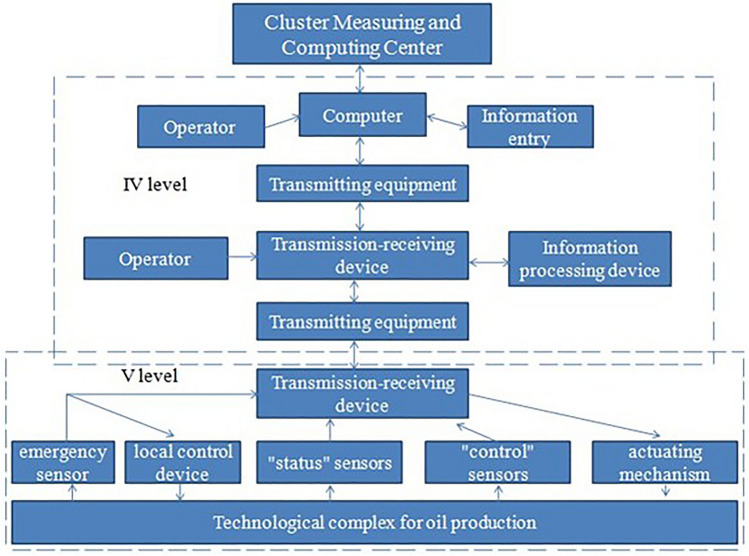

Scheme of information flows in the oil and gas production department in terms of technological complexes for oil production.
Figure 2
Figure 2

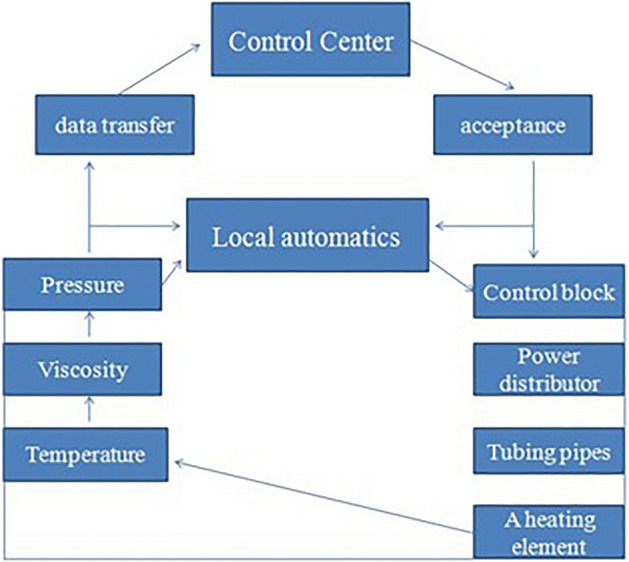

Scheme of information flows of an oil well with installed heating elements.
Figure 3
Figure 3
Temperature field values depending on time.
Figure 4
Figure 4

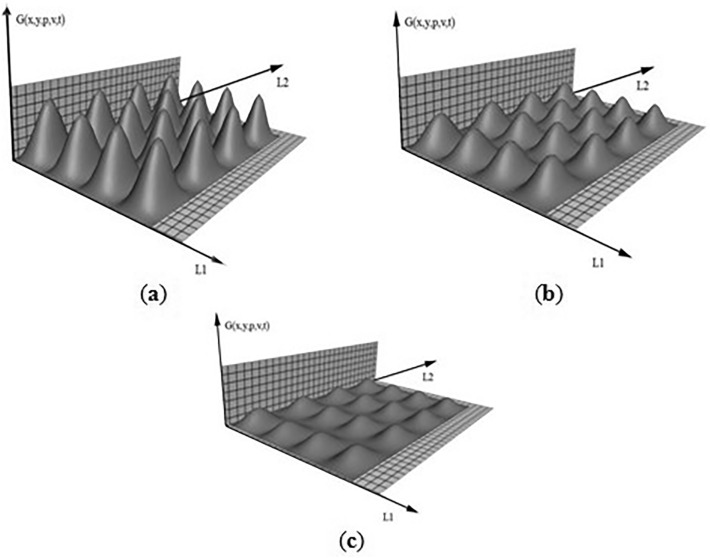

Dynamic change of the temperature field depending on time. (a) before change; (b) cycle change; (c) after change (RAD Studio 11.1 programming environment Delphi https://www.embarcadero.com/products/rad-studio).
Figure 5
Figure 5

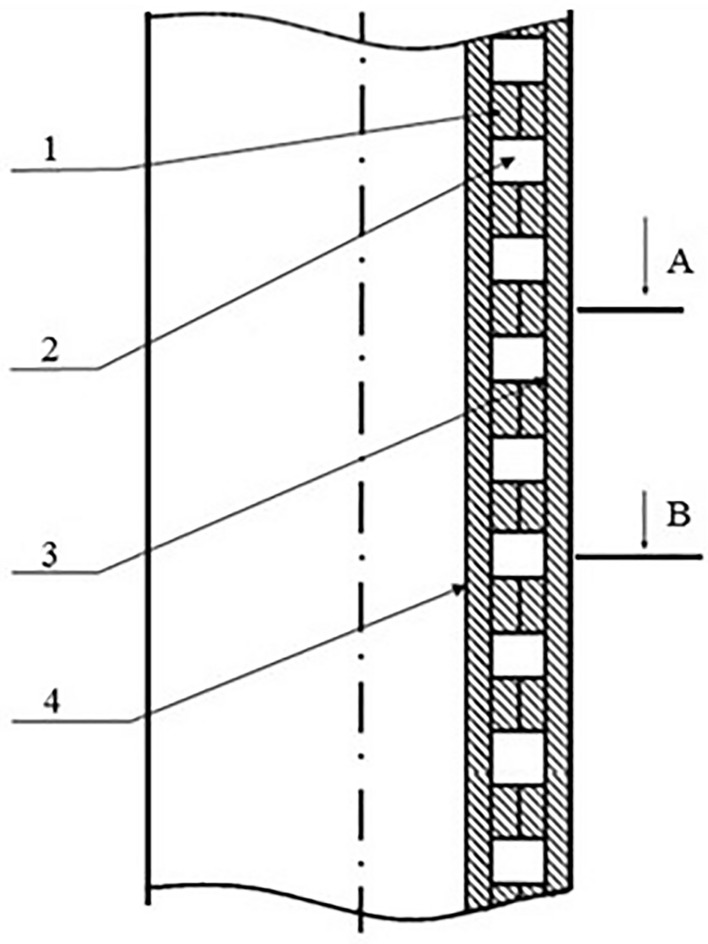

Scheme of tubing with impulse sectional heaters.
Figure 6
Figure 6

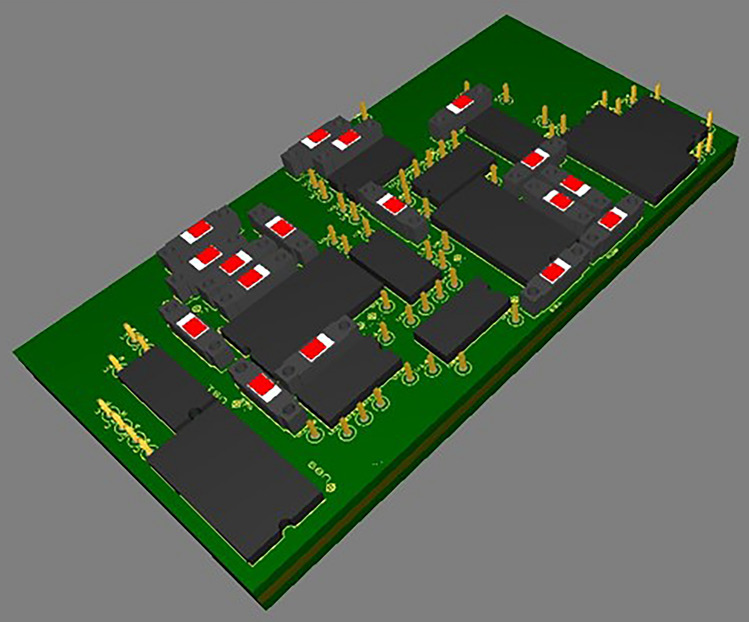

Layout model of parallel computing unit (top view). (Multisim https://www.ni.com/shop/electronic-test-instrumentation/application-software-for-electronic-test-and-instrumentation-category/what-is-multisim.html).
Figure 7
Figure 7

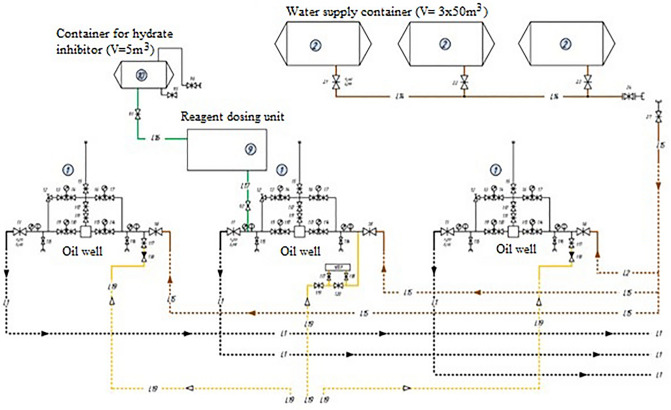

The existing scheme of automation of the technological process.
Figure 8
Figure 8
Proposed automation scheme.
See this image and copyright information in PMC
