. 2020 Jul 28;5(Pt 7):x200980.
doi: 10.1107/S2414314620009803. eCollection 2020 Jul.

trans-Diamminebis(1,2-di-cyano-ethene-1,2-di-thiol-ato)platinum(IV)

Mahaa J Siddiqui  1 , Volodymyr V Nesterov  2 , Matthew T Steidle  1 , Bradley W Smucker  1
Affiliations

trans-Diamminebis(1,2-di-cyano-ethene-1,2-di-thiol-ato)platinum(IV)

Mahaa J Siddiqui et al. IUCrdata. .

Abstract

The title compound, [Pt(C4N2S2)2(NH3)2], represents an octa-hedral platinum(IV) complex with two trans-ammine and two mnt (mnt = 1,2-di-cyano-ethene-1,2-di-thiol-ato) ligands. The Pt-N and Pt-S distances are consistent with those in other platinum(IV) complexes. As a result of a slight canting of the coordination of the mnt ligand to the platinum(IV) atom, the nitrile nitro-gen atoms are positioned suitably to hydrogen-bond with adjacent ammines.

Keywords: crystal structure; di­thiol­ene; platinum(IV).

PubMed Disclaimer

Figures

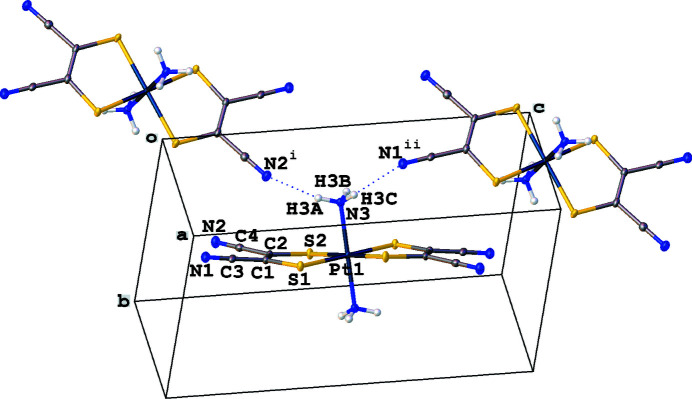

Figure 1
Figure 1
Displacement ellipsoid plot 50% probability of all non-H atoms showing N—H hydrogen bonding between nitrile nitro­gen atoms and hydrogen atoms on adjacent ammines. Symmetry codes: (i) −x, y −  formula image , −z +  formula image ; (ii) x, −y +  formula image , z +  formula image .
See this image and copyright information in PMC

References

    1. Brawner, S. A., Lin, I. J. B., Kim, J.-H. & Everett, G. W. (1978). Inorg. Chem. 17, 1304–1308.
    1. Chandrasekaran, P., Greene, A. F., Lillich, K., Capone, S., Mague, J. T., DeBeer, S. & Donahue, J. P. (2014). Inorg. Chem. 53, 9192–9205. - PubMed
    1. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341.
    1. Fanwick, P. E. & Huckaby, J. L. (1982). Inorg. Chem. 21, 3067–3071.
    1. Geiger, W. E., Barrière, F., LeSuer, R. J. & Trupia, S. (2001). Inorg. Chem. 40, 2472–2473. - PubMed
