Magnetique: an interactive web application to explore transcriptome signatures of heart failure

Abstract

Background: Despite a recent increase in the number of RNA-seq datasets investigating heart failure (HF), accessibility and usability remain critical issues for medical researchers. We address the need for an intuitive and interactive web application to explore the transcriptional signatures of heart failure with this work.

Methods: We reanalysed the Myocardial Applied Genomics Network RNA-seq dataset, one of the largest publicly available datasets of left ventricular RNA-seq samples from patients with dilated (DCM) or hypertrophic (HCM) cardiomyopathy, as well as unmatched non-failing hearts (NFD) from organ donors and patient characteristics that allowed us to model confounding factors. We analyse differential gene expression, associated pathway signatures and reconstruct signaling networks based on inferred transcription factor activities through integer linear programming. We additionally focus, for the first time, on differential RNA transcript isoform usage (DTU) changes and predict RNA-binding protein (RBP) to target transcript interactions using a Global test approach. We report results for all pairwise comparisons (DCM, HCM, NFD).

Results: Focusing on the DCM versus HCM contrast (DCMvsHCM), we identified 201 differentially expressed genes, some of which can be clearly associated with changes in ERK1 and ERK2 signaling. Interestingly, the signs of the predicted activity for these two kinases have been inferred to be opposite to each other: In the DCMvsHCM contrast, we predict ERK1 to be consistently less activated in DCM while ERK2 was more activated in DCM. In the DCMvsHCM contrast, we identified 149 differently used transcripts. One of the top candidates is the O-linked N-acetylglucosamine (GlcNAc) transferase (OGT), which catalyzes a common post-translational modification known for its role in heart arrhythmias and heart hypertrophy. Moreover, we reconstruct RBP - target interaction networks and showcase the examples of CPEB1, which is differentially expressed in the DCMvsHCM contrast.

Conclusion: Magnetique ( https://shiny.dieterichlab.org/app/magnetique ) is the first online application to provide an interactive view of the HF transcriptome at the RNA isoform level and to include transcription factor signaling and RBP:RNA interaction networks. The source code for both the analyses ( https://github.com/dieterich-lab/magnetiqueCode2022 ) and the web application ( https://github.com/AnnekathrinSilvia/magnetique ) is available to the public. We hope that our application will help users to uncover the molecular basis of heart failure.

Keywords: Cardiomyopathies; Differential gene expression; Differential transcript usage; Heart failure; Interactive dashboard; Molecular signatures; Protein network inference.

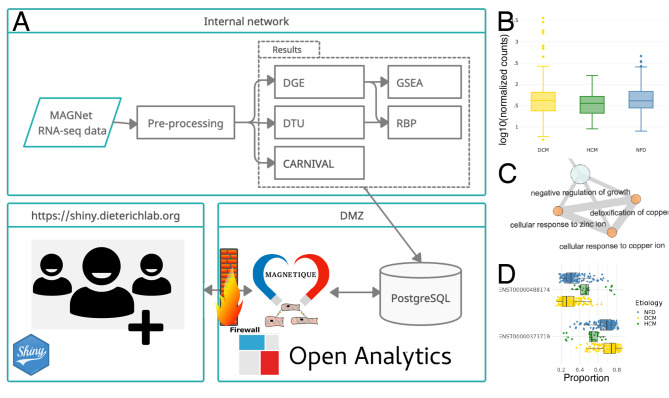

Fig. 1

Overview of the Magnetique application. (A) RNA-seq data is downloaded, processed, and stored within an internal network. Data is loaded into a PostgreSQL database, which is consumed by the application. The application is served via Open Analytics ShinyProxy on a server located in the demilitarized zone (DMZ) of a high-performance computer cluster located at the Klaus Tschira Institute for Computational Cardiology at Heidelberg University Hospital. The database and ShinyProxy server are protected by a firewall, and external users only have access to the Shiny applications, allowing us to re-use the setup with protected data. Each user instance is served within a Docker container, so user instances are independent and ShinyProxy handles the load on-demand. (B). Gene counts for the CXCL3 gene, representing the differential gene expression analysis (DGE), significantly called DGE for the DCMvsHCM contrast. (C) Example of an enrichment map for Biological Processes, showing a subgraph of terms originating from a Gene Set Enrichment Analysis (GSEA). (D) Differential Transcript Usage (DTU) analysis of the OGT gene locus

Fig. 2

Volcano plot for the DTU analysis. Red circles represent transcripts found significant with an adjusted p-value ≤ 0.05. The top ten transcripts for each contrast were named with the gene symbol and colored by the transcript biotype. For the DCMvsNFD and HCMvsNFD contrasts, the volcano shows shifts in isoform usage in several of the top genes, such as OGT, MOV10, ADARB1, GATB, UNK, SLC1A7, HTRA3, ADPRHL1.

Fig. 3

A subset of the CARNIVAL network focusing on the MAPK1 and MAPK3 signaling axes for the DCMvsHCM contrast. Nodes represent members of signaling cascades; round and triangular nodes represent proteins and TFs, respectively. Flat head and arrow head represent interactions that inhibit or activate the downstream elements, respectively. The color of the node represents the inferred protein activity, which ranges from blue (down-regulated) to red (up-regulated). The ​​auxiliary Perturbation node, in the uppermost position, connects all the proteins in the first level of the network. PTPRB, the receptor-type tyrosine-protein phosphatase beta, is likely the primary point for signal transduction. It modulates both MAPK1 (increased activity) and MAPK3 (decreased activity). These protein kinases modulate a series of other factors. Two TFs that are commonly controlled by the MAPK1/MAPK3 signaling axis are MEF2C and EGR1. MEF2C activity is down-regulated by MAPK1 and MAPK3, also known as extracellular signal-regulated kinases (ERKs) 2 and 1, which are central hubs of CARNIVAL networks, with a scaled Kleinberg’s centrality score of 0.356 and 1, respectively. Interestingly, the signs of the inferred activity for these two kinases have been inferred to be opposite to each other: In the DCMvsHCM contrast, MAPK3 appears to be consistently down-regulated while MAPK1 is up-regulated. This suggests a balance between the activities of the two kinases, which can be explained by the differential activity of the PTPRB receptor (receptor-type tyrosine-protein phosphatase beta), which is an upstream regulator for both kinases and is down-regulated. Both kinases differently regulate a series of TFs and their critical roles in heart homeostasis have been recently reviewed by Gilbert and collaborators (via HDAC5) and up-regulated by MAPK3 (via EP300). Conversely, EGR1 activity is controlled by RELA, which is down-regulated by MAPK3 (via SIRT1) and directly up-regulated by MAPK1. In these examples, the activity of TF depends on the balance of the MAPK1/MAPK3 axis.
