Planktonic functional diversity changes in synchrony with lake ecosystem state

Abstract

Managing ecosystems to effectively preserve function and services requires reliable tools that can infer changes in the stability and dynamics of a system. Conceptually, functional diversity (FD) appears as a sensitive and viable monitoring metric stemming from suggestions that FD is a universally important measure of biodiversity and has a mechanistic influence on ecological processes. It is however unclear whether changes in FD consistently occur prior to state responses or vice versa, with no current work on the temporal relationship between FD and state to support a transition towards trait-based indicators. There is consequently a knowledge gap regarding when functioning changes relative to biodiversity change and where FD change falls in that sequence. We therefore examine the lagged relationship between planktonic FD and abundance-based metrics of system state (e.g. biomass) across five highly monitored lake communities using both correlation and cutting edge non-linear empirical dynamic modelling approaches. Overall, phytoplankton and zooplankton FD display synchrony with lake state but each lake is idiosyncratic in the strength of relationship. It is therefore unlikely that changes in plankton FD are identifiable before changes in more easily collected abundance metrics. These results highlight the power of empirical dynamic modelling in disentangling time lagged relationships in complex multivariate ecosystems, but suggest that FD cannot be generically viable as an early indicator. Individual lakes therefore require consideration of their specific context and any interpretation of FD across systems requires caution. However, FD still retains value as an alternative state measure or a trait representation of biodiversity when considered at the system level.

Keywords: aquatic; biodiversity; ecosystem functioning; indicator; management; trait-based approach.

FIGURE 1

Smoothed time series of the five system state metrics, functional diversity of the two plankton trophic guilds and representation of environmental stressor in each of the five lakes. Smoothed trends are estimated by a generalized additive model of the metric through time and the vertical, dashed line represents literature reported regime shifts. Metric values are scaled to mean zero and unit variance.

FIGURE 2

(a) Boxplots of cross correlations between each system state and functional diversity metric combination, estimated when functional diversity was unlagged relative to system state (Lag0) versus when it was lagged (LagX). These comparisons have then been stratified by functional diversity metric (FDis, FEve, FRic), state metric (Community, Density, Fisher information, Multivariate variance index, and Trophic ratio) and trophic level (phytoplankton vs. zooplankton). A filled point indicates that the mapping was in the strongest 5% of permuted mappings and is considered significant. LagX values represent the strongest cross map skill estimated separately for each lake and across all lags (−60 to +60 months). Consequently, lakes often displayed different strongest lags. (b) The spread of those lags across lakes for each functional diversity and system state metric combination. The dark band in panel b represents a ±1 year lag/lead, which, if a significant (filled) point is found, is considered a synchronous change between the functional diversity and state metric.

FIGURE 3

(a) Boxplots of cross mapping skills between each system state and functional diversity metric combination, estimated when functional diversity was unlagged relative to system state (Lag0) versus when it was lagged (LagX). These comparisons have then been stratified by functional diversity metric (FDis, FEve, FRic), state metric (Community, Density, Fisher information, Multivariate variance index and Trophic ratio) and trophic level (phytoplankton vs. zooplankton). A filled point indicates that the mapping was in the strongest 5% of permuted mappings and is considered significant. LagX values represent the strongest cross map skill estimated separately for each lake and across all lags (−60 to +60 months). Consequently, lakes often displayed different strongest lags. (b) The spread of those lags across lakes for each functional diversity and system state metric combination. The dark band in panel b represents a ±1 year lag/lead, which, if a significant (filled) point is found, is considered a synchronous change between the functional diversity and state metric.

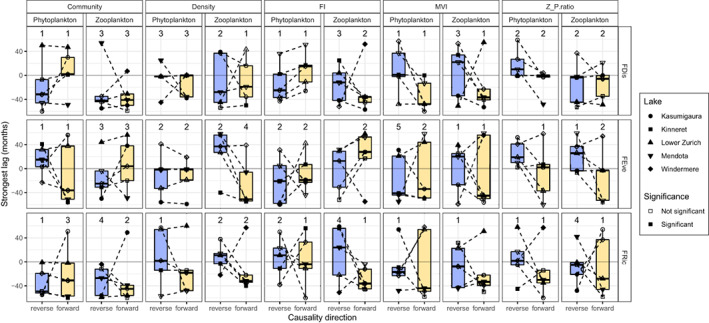

FIGURE 4

Boxplots of the paired lags between forward and reverse causal estimates for each functional diversity:system state combination. These comparisons have then been stratified by functional diversity metric (FDis, FEve, FRic), state metric (Community, Density, Fisher information, Multivariate variance index and Trophic ratio) and trophic level (phytoplankton vs. zooplankton). Filled points represent a significant causal relationship and the reported value is the number of significant mappings (out of five). Dashed lines link the two paired estimates (forward and reverse mappings within a lake). If one of these pairing lines crosses the grey, central lag line, then one of the metrics has a delayed impact and exerts sufficient causation on the other that synchronicity may occur. Variable directions in line/a flat line across all lakes can be interpreted that both metrics have equivalent causal delays upon each other.
