Structural Features Affecting the Interactions and Transportability of LAT1-Targeted Phenylalanine Drug Conjugates

Abstract

L-type amino acid transporter 1 (LAT1) transfers essential amino acids across cell membranes. Owing to its predominant expression in the blood-brain barrier and tumor cells, LAT1 has been exploited for drug delivery and targeting to the central nervous system (CNS) and various cancers. Although the interactions of amino acids and their mimicking compounds with LAT1 have been extensively investigated, the specific structural features for an optimal drug scaffold have not yet been determined. Here, we evaluated a series of LAT1-targeted drug-phenylalanine conjugates (ligands) by determining their uptake rates by in vitro studies and investigating their interaction with LAT1 via induced-fit docking. Combining the experimental and computational data, we concluded that although LAT1 can accommodate various types of structures, smaller compounds are preferred. As the ligand size increased, its flexibility became more crucial in determining the compound's transportability and interactions. Compounds with linear or planar structures exhibited reduced uptake; those with rigid lipophilic structures lacked interactions and likely utilized other transport mechanisms for cellular entry. Introducing polar groups between aromatic structures enhanced interactions. Interestingly, compounds with a carbamate bond in the aromatic ring's para-position displayed very good transport efficiencies for the larger compounds. Compared to the ester bond, the corresponding amide bond had superior hydrogen bond acceptor properties and increased interactions. A reverse amide bond was less favorable than a direct amide bond for interactions with LAT1. The present information can be applied broadly to design appropriate CNS or antineoplastic drug candidates with a prodrug strategy and to discover novel LAT1 inhibitors used either as direct or adjuvant cancer therapy.

Keywords: HEK-hLAT1, human embryonic kidney cell line inducible for human l-type amino acid transporter 1; IFD, induced-fit docking; LAT1, l-type amino acid transporter 1; QSAR, quantitative structure−activity relationship.

Figure 1

Confocal microscopy images after immunofluorescence staining of HEK-MOCK cells (left) and HEK-hLAT1 cells (middle and right), showing LAT1 localization in the cell membrane (LAT1 = red, nuclei of the cells = blue, 4F2hc = green, overlapping of LAT1/4F2hc = yellow/orange).

Figure 2

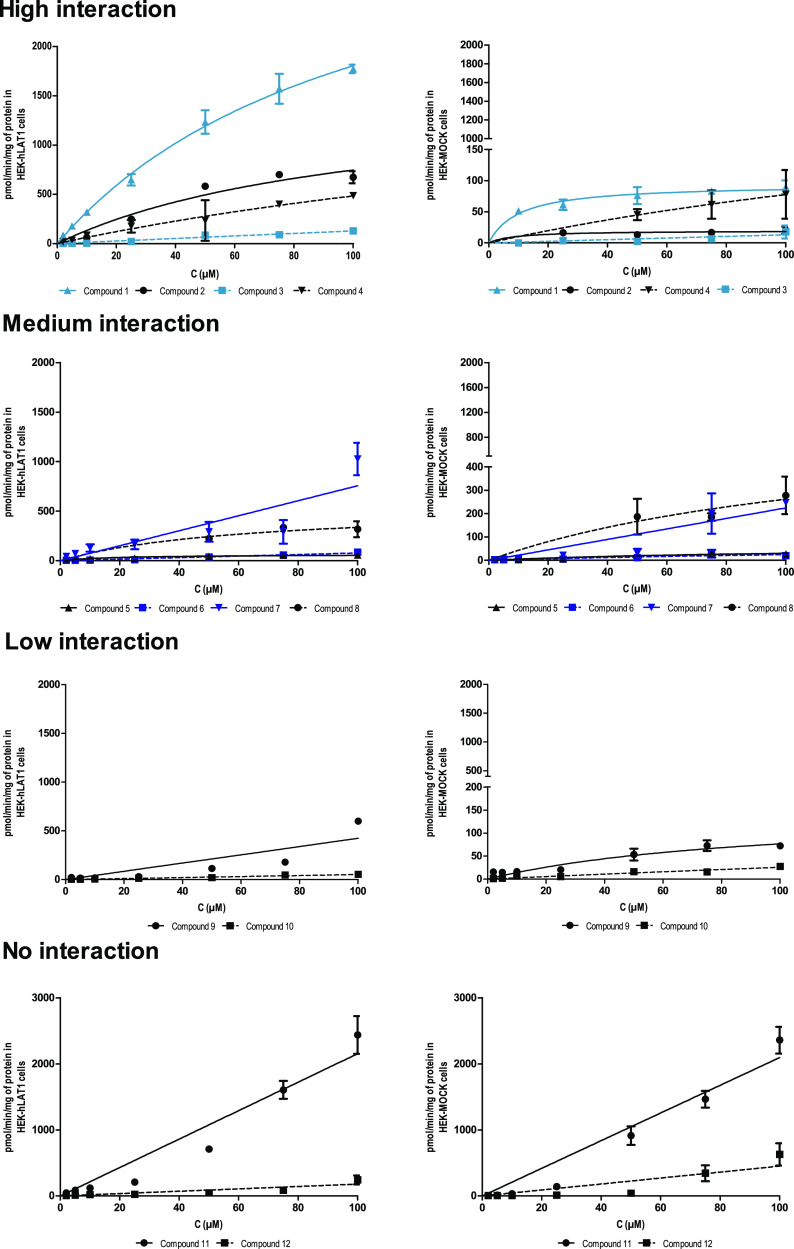

Uptake results of compounds (1–12). HEK-hLAT1 cells presented with circles (solid black line, values on the left Y axis), HEK-MOCK cells with squares (blue dashed line, values on the right Y axis). The Y axis is adjusted according to each compound.

Figure 3

Favorable docking poses of compounds to the LAT1 cryo-EM structure. TM1 and TM6 are shown in pink, TM3, TM8, and TM10 are shown in yellow, cyan, and blue, respectively. (A) L-DOPA and compound 1, (B) compounds 2 and 3, (C) compound 4, (D) compounds 5, 8, and 7, (E) compound 6, (F) compounds 9 and 10, and (G) compounds 11 and 12.
