A novel VOC breath tracer method to evaluate indoor respiratory exposures in the near- and far-fields; implications for the spread of respiratory viruses

Abstract

Background: Several studies suggest that far-field transmission (>6 ft) explains a significant number of COVID-19 superspreading outbreaks.

Objective: Therefore, quantifying the ratio of near- and far-field exposure to emissions from a source is key to better understanding human-to-human airborne infectious disease transmission and associated risks.

Methods: In this study, we used an environmentally-controlled chamber to measure volatile organic compounds (VOCs) released from a healthy participant who consumed breath mints, which contained unique tracer compounds. Tracer measurements were made at 0.76 m (2.5 ft), 1.52 m (5 ft), 2.28 m (7.5 ft) from the participant, as well as in the exhaust plenum of the chamber.

Results: We observed that 0.76 m (2.5 ft) trials had ~36-44% higher concentrations than other distances during the first 20 minutes of experiments, highlighting the importance of the near-field exposure relative to the far-field before virus-laden respiratory aerosol plumes are continuously mixed into the far-field. However, for the conditions studied, the concentrations of human-sourced tracers after 20 minutes and approaching the end of the 60-minute trials at 0.76 m, 1.52 m, and 2.28 m were only ~18%, ~11%, and ~7.5% higher than volume-averaged concentrations, respectively.

Significance: This study suggests that for rooms with similar airflow parameters disease transmission risk is dominated by near-field exposures for shorter event durations (e.g., initial 20-25-minutes of event) whereas far-field exposures are critical throughout the entire event and are increasingly more important for longer event durations.

Impact statement: We offer a novel methodology for studying the fate and transport of airborne bioaerosols in indoor spaces using VOCs as unique proxies for bioaerosols. We provide evidence that real-time measurement of VOCs can be applied in settings with human subjects to estimate the concentration of bioaerosol at different distances from the emitter. We also improve upon the conventional assumption that a well-mixed room exhibits instantaneous and perfect mixing by addressing spatial distances and mixing over time. We quantitatively assessed the exposure levels to breath tracers at alternate distances and provided more insights into the changes on "near-field to far-field" ratios over time. This method can be used in future to estimate the benefits of alternate environmental conditions and occupant behaviors.

Keywords: Bioaerosol; COVID-19; Healthy buildings; Infectious disease; PTR-ToF-MS; Risk.

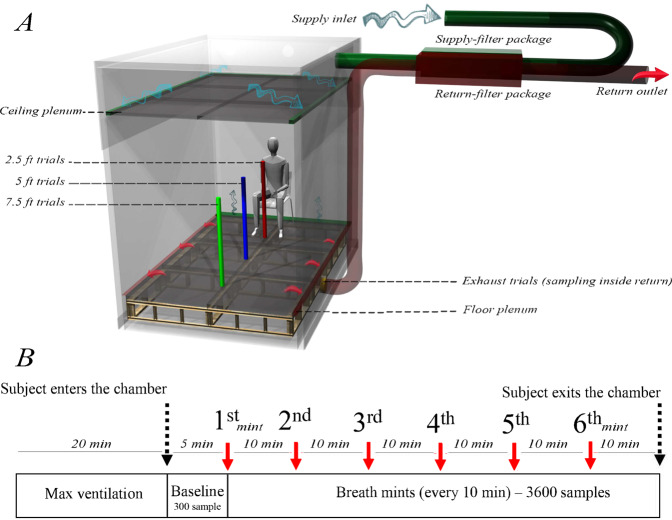

Fig. 1. Digital model of the Experimental setup indicating.

A climate chamber, airflow distribution, as well as sampling location for each unique trial (modeled in Rhinoceros software), (B) experimental procedure and the number of breath mints consumed by the participant for each trial.

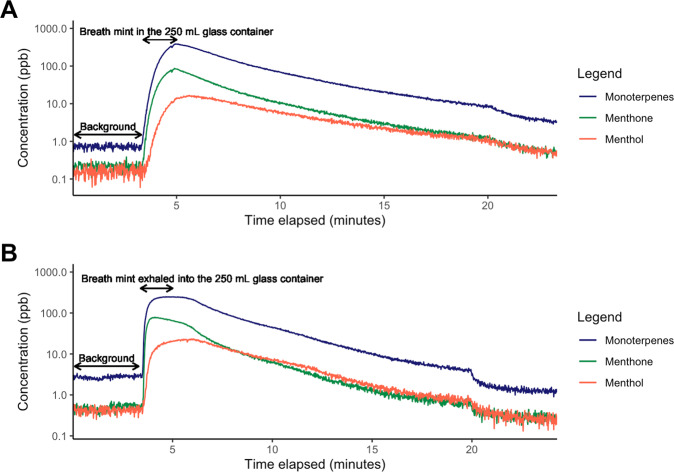

Fig. 2. The concentration of breath mint in the headspace of a 250 mL glass container.

A Concentration of breath tracer compounds (menthol, menthone, and monoterpenes) in the headspace of a 250 mL glass chamber as a function the time when a breath mint is placed inside, (B) Concentration of the three target compounds when the participant exhaled their breath once into the 250 mL chamber while consuming the breath mint.

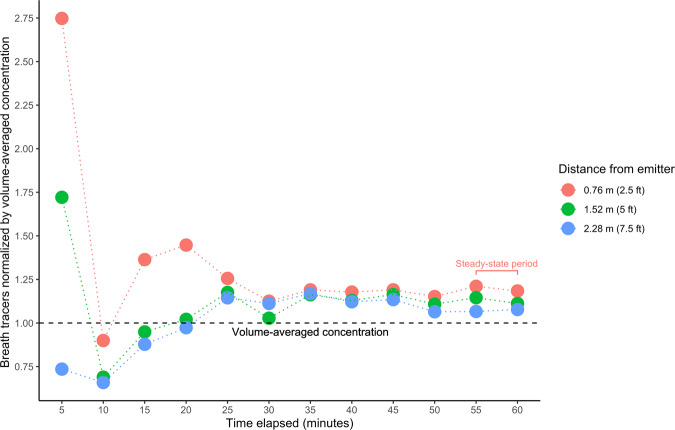

Fig. 3

Comparison of 0.762 m (2.5 ft), 1.524 m (5 ft), 2.28 m (7.5 ft) trials normalized by volume-averaged concentration (VAC) whereby values below 1.0 indicate concentrations proportionally lower than the VAC at that time point, and values higher than 1.0 indicate concentrations proportionally higher than the VAC at that time point. Note that VAC changes over time.
