Q-raKtion: A Semiautomated KNIME Workflow for Bioactivity Data Points Curation

Abstract

The recent increase of bioactivity data freely available to the scientific community and stored as activity data points in chemogenomic repositories provides a huge amount of ready-to-use information to support the development of predictive models. However, the benefits provided by the availability of such a vast amount of accessible information are strongly counteracted by the lack of uniformity and consistency of data from multiple sources, requiring a process of integration and harmonization. While different automated pipelines for processing and assessing chemical data have emerged in the last years, the curation of bioactivity data points is a less investigated topic, with useful concepts provided but no tangible tools available. In this context, the present work represents a first step toward the filling of this gap, by providing a tool to meet the needs of end-user in building proprietary high-quality data sets for further studies. Specifically, we herein describe Q-raKtion, a systematic, semiautomated, flexible, and, above all, customizable KNIME workflow that effectively aggregates information on biological activities of compounds retrieved by two of the most comprehensive and widely used repositories, PubChem and ChEMBL.

Figure 1

General scheme of the Q-raKtion workflow.

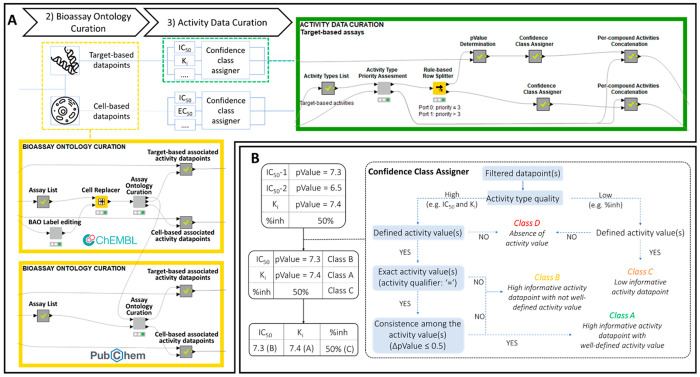

Figure 2

(A) Detailed overview of the bioassay ontology curation (yellow box) and activity data curation (green box) steps. (B) Schematic workflow of the procedure applied for the activity data curation step. The data points are filtered to retain all of the activities corresponding to the same compound (starting table). The data points with the same activity type are processed by the developed “Confidence Class Assigner” metanode that returns a row with the best activity datum coupled with the corresponding confidence class. All of the processed information is finally converted in a unique row. pValue is calculated as the negative log10 of the molar activity value; ΔpValue is calculated as the difference between the maximum and the minimum values of pValue. Examples of activity types include IC₅₀, K_i, and %inh (percentage of inhibition).

Figure 3

Number of data points collected in each confidence class for the high-quality activity types (i.e., XC₅₀ and K_X) both in the curated ChEMB and PubChem databases and in the final data set of AKT1 compounds.
