Root-Shoot Nutrient Dynamics of Huanglongbing-Affected Grapefruit Trees

Abstract

With huanglongbing (HLB) causing a reduction in fine root mass early in disease progression, HLB-affected trees have lower nutrient uptake capability. Questions regarding the uptake efficiency of certain fertilizer application methods have been raised. Therefore, the goals of this study are to determine if nutrient management methods impact nutrient translocation and identify where in the tree nutrients are translocated. Destructive nutrient and biomass analysis were conducted on field grown HLB-affected grapefruit trees (Citrus × paradisi) grafted on 'sour orange' (Citrus × aurantium) rootstock under different fertilizer application methods. Fertilizer was applied in the form of either 100% soluble granular fertilizer, controlled release fertilizer (CRF), or liquid fertilizer. After three years, the entire tree was removed from the grove, dissected into eight different components (feeder roots, lateral roots, structural roots, trunk, primary branches, secondary branches, twigs, and leaves), weighed, and then analyzed for nutrient contents. Overall, application methods showed differences in nutrient allocation in leaf, twig, and feeder root; however, no consistent pattern was observed. Additionally, leaf, twig, and feeder roots had higher amount of nutrients compared to the other tree components. This study showed that fertilization methods do impact nutrient contents in different components of HLB-affected trees. Further research should be conducted on the impact of different fertilizer application methods and rates on HLB-affected trees.

Keywords: Citrus paradisi; citrus greening; destructive analysis; fertilizer application methods; nutrient translocation.

Figure 1

Macronutrient concentration (%) in leaf (A), twig (B), secondary branch (C), and primary branch (D). Six-year-old Huanglongbing-affected ‘Ruby Red’ grapefruit trees grafted on sour orange rootstock were used. Treatments consisted of two liquid (L and LW) and two granular fertilizers (Control and controlled-release fertilizer (CRF)). Treatments were applied three times a year (control and CRF), biweekly (L), or weekly (LW), for three years. A one-way variance (ANOVA) with a Tukey’s honestly significant difference (HSD) test was used to determine significant differences between means. Lowercase letters (a, b, c) indicate statistically significant differences (p ≤ 0.05). Data represents means (n = 4) ± standard error.

Figure 2

Macronutrient concentration (%) in trunk (A), structural root (B), lateral root (C), and feeder root (D). Six-year-old Huanglongbing-affected ‘Ruby Red’ grapefruit trees grafted on sour orange rootstock were used. Treatments consisted of two liquid (L and LW) and two granular fertilizers (Control and controlled-release fertilizer (CRF)). Treatments were applied three times a year (control and CRF), biweekly (L), or weekly (LW), for three years. A one-way analysis of variance (ANOVA) with a Tukey’s honestly significant difference (HSD) test was used to determine significant differences between means. Lowercase letters (a, b) indicate statistically significant differences (p ≤ 0.05). Data represents means (n = 4) ± standard error.

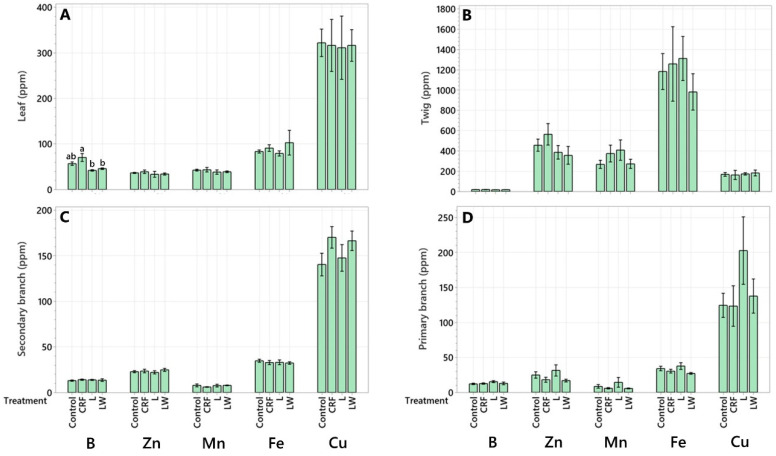

Figure 3

Micronutrient concentration (ppm) in leaf (A), twig (B), secondary branch (C), and primary branch (D). Six-year-old Huanglongbing-affected ‘Ruby Red’ grapefruit trees grafted on sour orange rootstock were used. Treatments consisted of two liquid (L and LW) and two granular fertilizers (Control and controlled-release fertilizer (CRF)). Treatments were applied three times a year (control and CRF), biweekly (L), or weekly (LW), for three years. A one-way variance (ANOVA) with a Tukey’s honestly significant difference (HSD) test was used to determine significant differences between means. Lowercase letters (a, b) indicate statistically significant differences (p ≤ 0.05). Data represents means (n = 4) ± standard error.

Figure 4

Micronutrient concentration (ppm) in trunk (A), structural root (B), lateral root (C), and feeder root (D). Six-year-old Huanglongbing-affected ‘Ruby Red’ grapefruit trees grafted on sour orange rootstock were used. Treatments consisted of two liquid (L and LW) and two granular fertilizers (Control and controlled-release fertilizer (CRF)). Treatments were applied three times a year (control and CRF), biweekly (L), or weekly (LW), for three years. A one-way variance (ANOVA) with a Tukey’s honestly significant difference (HSD) test was used to determine significant differences between means. Lowercase letters (a, b) indicate statistically significant differences (p ≤ 0.05). Data represents means (n = 4) ± standard error.

Figure 5

Dry weight (kg) of each tree component. Six-year-old Huanglongbing-affected ‘Ruby Red’ grapefruit trees grafted on sour orange rootstock were used. Treatments consisted of two liquid (L and LW) and two granular fertilizers (Control and controlled-release fertilizer (CRF)). Treatments were applied three times a year (control and CRF), biweekly (L), or weekly (LW), for three years. Data represents means (n = 4) ± standard error.

Figure 6

Satellite image of the area in which the study was conducted. The experimental grove from which the grapefruit trees were excavated is highlighted in red. The grapefruit grove is located at the University of Florida, Institute of Food and Agricultural Sciences (UF/IFAS), Indian River Research and Education Center (IRREC) located in Fort Pierce, Florida, USA. Image was acquired from Google Maps on 16 November 2022.

Figure 7

Schematic representation of a six-year-old grapefruit tree divided into eight different components: leaf, twig, secondary branch, primary branch, trunk, structural root, lateral root, and feeder root.
