. 2022 Nov 24;14(23):5109.
doi: 10.3390/polym14235109.

Polyacrylonitrile- b-Polystyrene Block Copolymer-Derived Hierarchical Porous Carbon Materials for Supercapacitor

Ainhoa Álvarez-Gómez  1 , Jiayin Yuan  2 , Juan P Fernández-Blázquez  3 , Verónica San-Miguel  1 , María B Serrano  1
Affiliations

Polyacrylonitrile- b-Polystyrene Block Copolymer-Derived Hierarchical Porous Carbon Materials for Supercapacitor

Ainhoa Álvarez-Gómez et al. Polymers (Basel). .

Abstract

The use of block copolymers as a sacrificial template has been demonstrated to be a powerful method for obtaining porous carbons as electrode materials in energy storage devices. In this work, a block copolymer of polystyrene and polyacrylonitrile (PS-b-PAN) has been used as a precursor to produce fibers by electrospinning and powdered carbons, showing high carbon yield (~50%) due to a low sacrificial block content (fPS ≈ 0.16). Both materials have been compared structurally (in addition to comparing their electrochemical behavior). The porous carbon fibers showed superior pore formation capability and exhibited a hierarchical porous structure, with small and large mesopores and a relatively high surface area (~492 m2/g) with a considerable quantity of O/N surface content, which translates into outstanding electrochemical performance with excellent cycle stability (close to 100% capacitance retention after 10,000 cycles) and high capacitance value (254 F/g measured at 1 A/g).

Keywords: block copolymer template; hierarchical pores; porous carbon fibers; supercapacitor.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

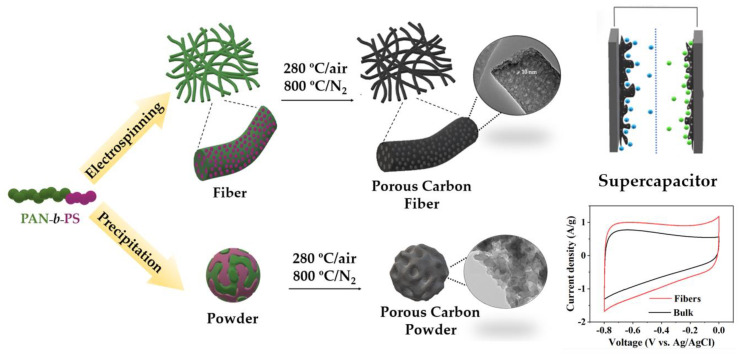

Scheme 1
Scheme 1
Preparation scheme of porous carbon fibers and powders, from PAN−b−PS copolymer template for use as supercapacitor electrode materials.
Figure 1
Figure 1
(a) 1H−NMR spectra of PS−CPDT macroCTA (above) and PS−b−PAN polymer (below), (b) SEC chromatograms, (c) DSC thermograms of PS-CPDT (insert graph) and PS−b−PAN (d) TGA curves of PS−CPDT and PS−b−PAN.

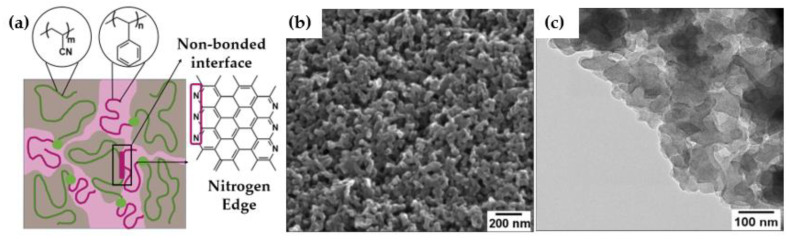

Figure 2
Figure 2
(a) Scheme of disordered morphology of PS−b−PAN upon uncontrolled phase-separation, (b) SEM image of bulk material after carbonization, (c) TEM image of bulk carbon material.
Figure 3
Figure 3
(a,b) electrospun PS−b−PAN fibers, (c) SEM image of fiber membrane after carbonization and (d) cross−section of carbon fibers inserted, (e,f) TEM images of the porous carbon fibers, (g) Raman spectra of both carbon materials.
Figure 4
Figure 4
(a,b) XPS high resolution spectra of N and O, respectively, of the porous carbon fibers, (c) N2 adsorption/desorption isotherms, and (d) NLDFT pore size distribution of fibers and bulk carbon material.
Figure 5
Figure 5
(a) CV curves at 5 mV/s scan rate, (b) GCD curves at 1 A/g current density, (c) EIS diagrams, and (d) capacitance retention of porous carbon fibers and carbon powders derived from PS−b−PAN.
Figure 6
Figure 6
(a) CV curves at different sweep rates, (b) GCD curves at various current densities, (c) Electrode stability along 10,000 cycles at a current density of 100 A/g. Inset: EIS diagram, (d) Ragone plot of the porous carbon fibers.
See this image and copyright information in PMC

References

    1. Salanne M., Rotenberg B., Naoi K., Kaneko K., Taberna P.L., Grey C.P., Dunn B., Simon P. Efficient Storage Mechanisms for Building Better Supercapacitors. Nat. Energy. 2016;1:16070. doi: 10.1038/nenergy.2016.70. - DOI
    1. Patrice S., Yuri G., Bruce D. Where Do Batteries End and Supercapacitors Begin? Science. 2014;343:1208–1210. - PubMed
    1. Pandolfo A.G., Hollenkamp A.F. Carbon Properties and Their Role in Supercapacitors. J. Power Sources. 2006;157:11–27. doi: 10.1016/j.jpowsour.2006.02.065. - DOI
    1. González A., Goikolea E., Barrena J.A., Mysyk R. Review on Supercapacitors: Technologies and Materials. Renew. Sustain. Energy Rev. 2016;58:1189–1206. doi: 10.1016/j.rser.2015.12.249. - DOI
    1. Liu C.F., Liu Y.C., Yi T.Y., Hu C.C. Carbon Materials for High-Voltage Supercapacitors. Carbon N. Y. 2019;145:529–548. doi: 10.1016/j.carbon.2018.12.009. - DOI
