Review
. 2022 Dec 5;8(12):e12050.
doi: 10.1016/j.heliyon.2022.e12050. eCollection 2022 Dec.

Adopted walking condition for computational simulation approach on bearing of hip joint prosthesis: review over the past 30 years

J Jamari  1   2 , Muhammad Imam Ammarullah  2   3   4 , Gatot Santoso  3   4 , S Sugiharto  3   4 , Toto Supriyono  3   4 , Muki Satya Permana  3   4 , Tri Indah Winarni  2   5   6 , Emile van der Heide  7   8
Affiliations
Review

Adopted walking condition for computational simulation approach on bearing of hip joint prosthesis: review over the past 30 years

J Jamari et al. Heliyon. .

Abstract

Bearing on artificial hip joint experiences friction, wear, and surface damage that impact on overall performance and leading to failure at a particular time due to continuous contact that endangers the user. Assessing bearing hip joint using clinical study, experimental testing, and mathematical formula approach is challenging because there are some obstacles from each approach. Computational simulation is an effective alternative approach that is affordable, relatively fast, and more accessible than other approaches in examining various complex conditions requiring extensive resources and several different parameters. In particular, different gait cycles affect the sliding distance and distribution of gait loading acting on the joints. Appropriate selection and addition of gait cycles in computation modelling are crucial for accurate and reliable prediction and analysis of bearing performance such as wear a failure of implants. However, a wide spread of gait cycles and loading data are being considered and studied by researchers as reported in literature. The current article describes a comprehensive literature review adopted walking condition that has been carried out to study bearing using computational simulation approach over the past 30 years. Many knowledge gaps related to adoption procedures, simplification, and future research have been identified to obtain bearing analysis results with more realistic computational simulation approach according to physiological human hip joints.

Keywords: Computational simulation; Hip joint prosthesis; Hip resurfacing; Human hip joint; Total hip arthroplasty; Walking condition.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Figure 1
Figure 1

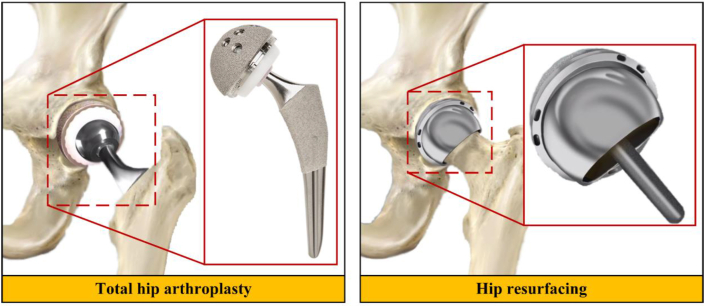

Total hip arthroplasty and hip resurfacing.
Figure 2
Figure 2
Loading and motions in human hip joint.
Figure 3
Figure 3

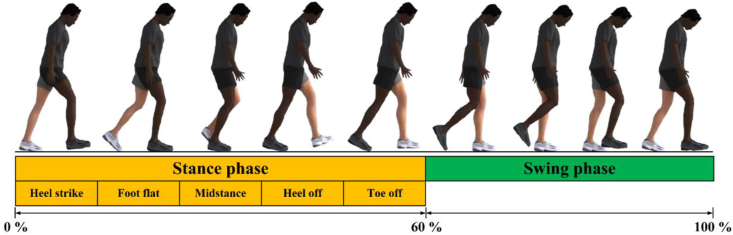

Phase description in walking cycle. Maximum loading acted on foot flat (stance phase) and minimum loading acted on throughout swing phase.
Figure 4
Figure 4
Overview of computational simulation study on bearing of hip joint prosthesis that adopted walking condition.
Figure 5
Figure 5
Walking condition used by Gao et al. [56].
Figure 6
Figure 6

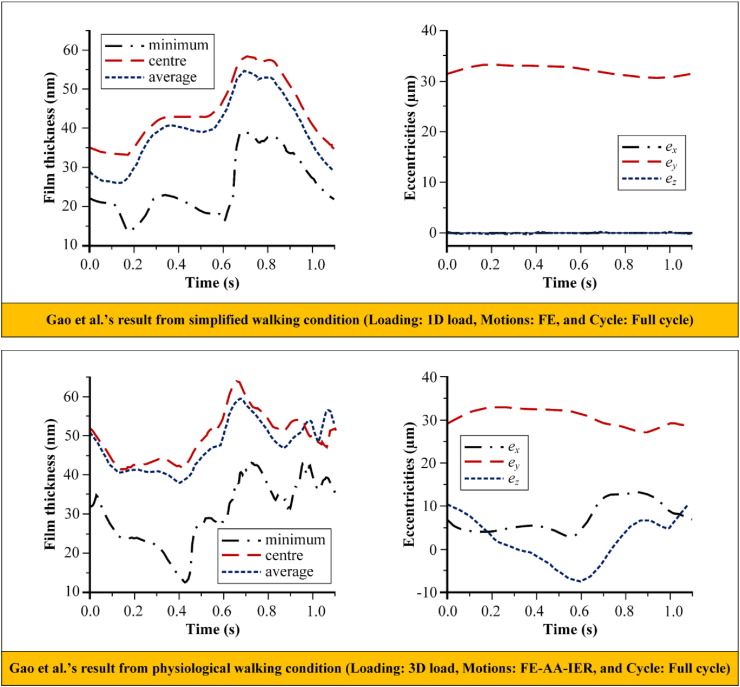

Gao et al's results from simplified and physiological walking gait cycle [56].
Figure 7
Figure 7

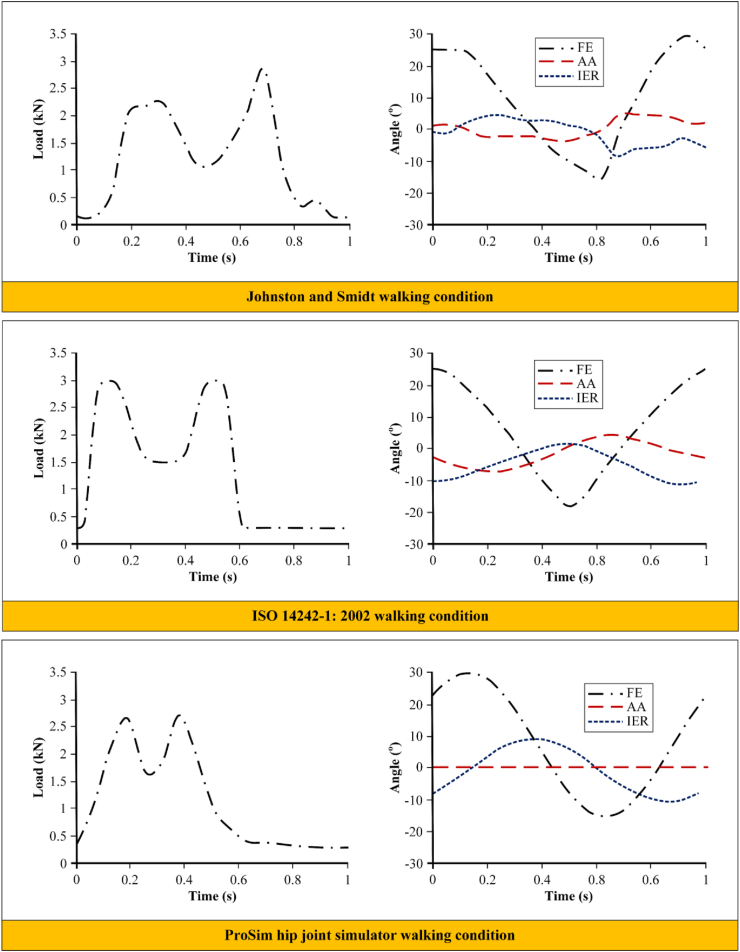

Three different walking condition used by Liu et al. [85].
Figure 8
Figure 8

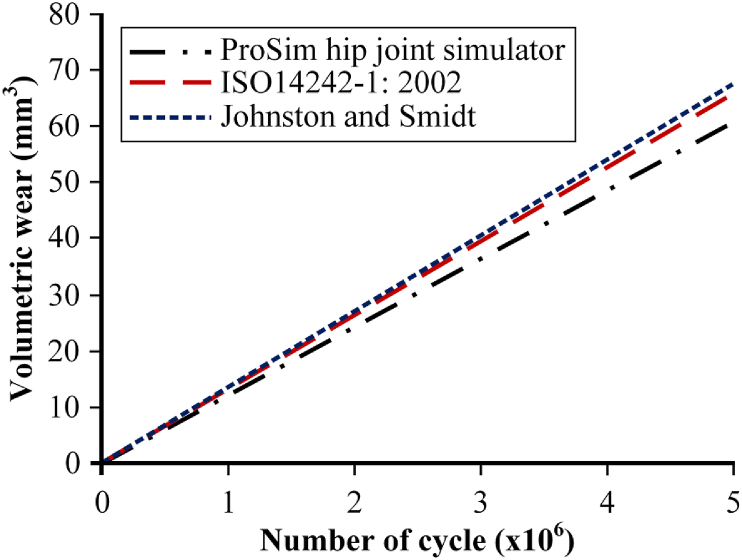

Liu et al.’s results from three different walking condition references [85].
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Ammarullah M.I., Afif I.Y., Maula M.I., Winarni T.I., Tauviqirrahman M., Jamari J. Tresca stress evaluation of Metal-on-UHMWPE total hip arthroplasty during peak loading from normal walking activity. Mater. Today Proc. 2022;63:S143–S146. - PMC - PubMed
    1. Chethan K.N., Zuber M., Bhat N.S., Shenoy S., Kini R.C. Static structural analysis of different stem designs used in total hip arthroplasty using finite element method. Heliyon. 2019;5 - PMC - PubMed
    1. London Health Sciences Centre . 2013th ed. London Health Sciences Centre; London, England: 2013. My Guide to Total Hip Joint Replacement.
    1. Kurtz S., Ong K., Lau E., Mowat F., Halpern M. Projections of primary and revision hip and knee arthroplasty in the United States from 2005 to 2030. J Bone Jt Surg - Ser A. 2007;89:780–785. - PubMed
    1. Carreiras A.R., Fonseca E.M.M., Martins D., Couto R. The axisymmetric computational study of a femoral component to analysis the effect of titanium alloy and diameter variation. J. Comput. Appl. Mech. 2020;51:403–410.
