Enhanced Intraoperative Communication of Tumor Margins Using 3D Scanning and Mapping: The Computer-Aided Design Margin

Kayvon F Sharif  1 , Kavita Prasad  2 , Alexis Miller  2 , Shira McPeak  3 , J Elliott Denney  3 , James S Lewis Jr  2   3 , Michael C Topf  2
Affiliations
Case Reports

Enhanced Intraoperative Communication of Tumor Margins Using 3D Scanning and Mapping: The Computer-Aided Design Margin

Kayvon F Sharif et al. Laryngoscope. 2023 Aug.

Abstract

We have implemented a novel intraoperative communication system for head and neck surgical pathology using 3D scanning technology and computer-aided design (CAD) software. Here, we highlight our CAD margin protocol, in which we 3D scan head and neck oncologic surgical specimens and map frozen section results. This enhances the communication of margin status between surgeons and pathologists and delivers visual anatomic guidance for re-resection when needed. Laryngoscope, 133:1914-1918, 2023.

Keywords: 3D scanning; 3D specimen mapping; communication; frozen section; head and neck; margin analysis.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
Gross photograph (left) and screen image of the virtual 3D model (right) of the oral cavity composite resection specimen.
Fig. 2.
Fig. 2.

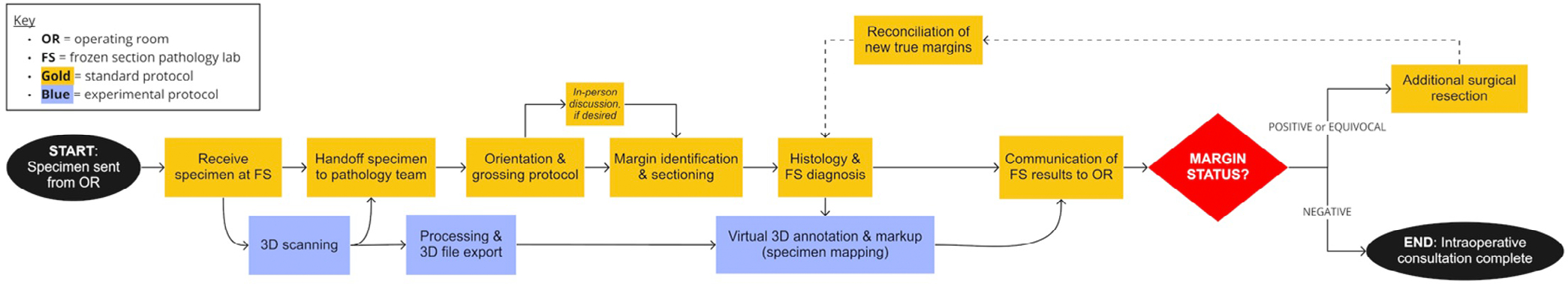

Intraoperative surgical pathology workflow for standard protocol (gold) and 3D scanning technique (blue).
Fig. 3.
Fig. 3.
Virtual 3D specimen map of an anterior oral cavity composite resection specimen. Labeled white rectangles represent areas of the main specimen where margins were sampled for frozen section analysis (FSA). Red markings represent areas of focal positivity or close (<5 mm) distance to tumor edge determined by FSA.
Fig. 4.
Fig. 4.
Photograph from the operating room showing the surgical team receiving frozen section results with the aid of the virtual 3D specimen map displayed on an overhead monitor.
Fig. 5.
Fig. 5.
Gross photograph (left) and screen image of the virtual 3D specimen map (right) of a left radical tonsillectomy specimen. A = anterior; I = inferior; P = posterior; S = superior. Orange markings represent area of focal positivity.
